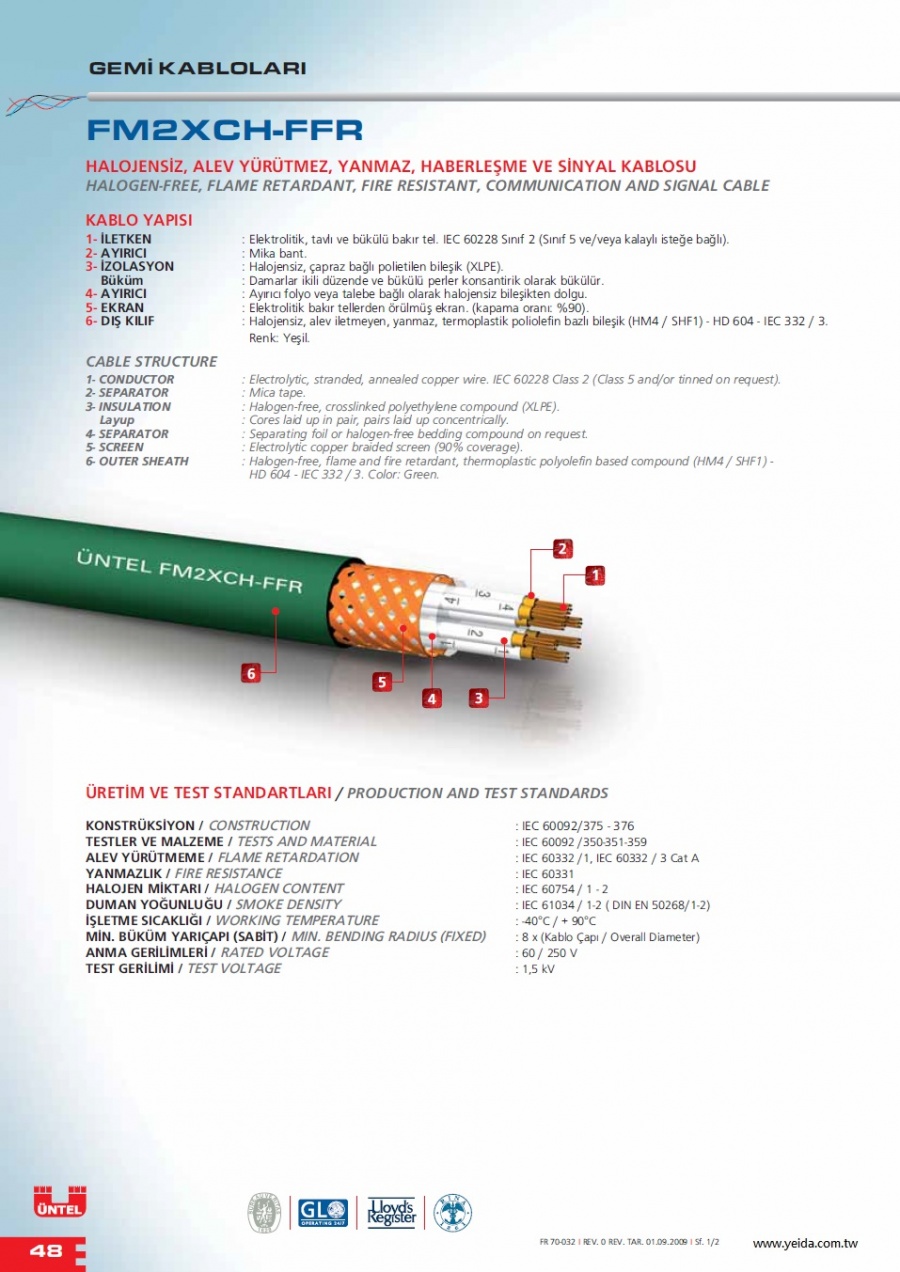

    FM2XCH-FFR HALOGEN-FREE, FLAME RETARDANT, FIRE RESISTANT, COMMUNICATION AND SIGNAL CABLE  無鹵,阻燃,雙屏蔽船舶用通信和信號電纜
    看原圖
    30197425




    商品編號: UNTL-FM2XCH-FFR

    FM2XCH-FFR HALOGEN-FREE, FLAME RETARDANT, FIRE RESISTANT, COMMUNICATION AND SIGNAL CABLE 無鹵,阻燃,雙屏蔽船舶用通信和信號電纜



    ★★★★商品說明★★★★

    FM2XCH-FFR

    HALOGEN-FREE, FLAME RETARDANT, FIRE RESISTANT, COMMUNICATION AND SIGNAL CABLE

    CABLE STRUCTURE

    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).

    2- SEPARATOR : Mica tape.

    3- INSULATION : Halogen-free, crosslinked polyethylene compound (XLPE). Layup : Cores laid up in pair, pairs laid up concentrically.

    4- SEPARATOR : Separating foil or halogen-free bedding compound on request.

    5- SCREEN : Electrolytic copper braided screen (90% coverage).

    6- OUTER SHEATH : Halogen-free, flame and fire retardant, thermoplastic polyolefin based compound (HM4 / SHF1) HD 604 - IEC 332 / 3. Color: Green.

    PRODUCTION AND TEST STANDARDS


    CONSTRUCTION : IEC 60092/375 - 376

    TESTS AND MATERIAL : IEC 60092 /350-351-359

    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3

    FIRE RESISTANCE : IEC 60331

    HALOGEN CONTENT : IEC 60754 / 1 - 2

    SMOKE DENSITY : IEC 61034 / 1-2 ( DIN EN 50268/1-2)

    WORKING TEMPERATURE : -40°C / + 90°C

    MIN. BENDING RADIUS (FIXED) : 8 x (Overall Diameter)

    RATED VOLTAGE : 60 / 250 V

     TEST VOLTAGE : 1,5 kV

    APPLICATION
    Used on marine vehicles as control and communication cables in radio, radar and information systems, where sustainable connection during fire is required. Its twisted pairs enables proper transmission of high frequency signals, while its overall screen minimizes environmental electromagnetic interference.
    用海洋的車輛如在無線電,雷達和信息系統控制和通信電纜,在需要火災中持續連接。其“雙絞線使高頻信號的正確的傳輸,而其”整體畫面最大限度地減少環境的電磁干擾。

    ENVIRONMENT
    Usable at all conditions in marine environment such as dry, wet or oily locations, inside the engine room, where electromagnetic protection is required as well.

    SAFETY
    Even at direct contact with fire, it will sustain the connection for 180min. That provides necessary equipment (fire alarm and extinguishing systems, water pumps, communication, radio, control systems, lightning, etc.) to work uninterrupted during a fire. Due to its halogen-free, low smoke density and flame retardant features, it wont create corrosive gases nor obstruct visibility and prevents the fire from spreading around. Thus it protects human life and equipment, during a fire.
