    M2XCH-M2XCH (EMC) HALOGEN-FREE, FLAME RETARDANT, SCREENED POWER CABLE 無鹵,阻燃,銅帶+銅網屏蔽船舶用電力電源線
    看原圖
    30197503




    商品編號: UNTL-M2XCH-EMC

    M2XCH-M2XCH (EMC) HALOGEN-FREE, FLAME RETARDANT, SCREENED POWER CABLE 無鹵,阻燃,銅帶+銅網屏蔽船舶用電力電源線



    ★★★★商品說明★★★★

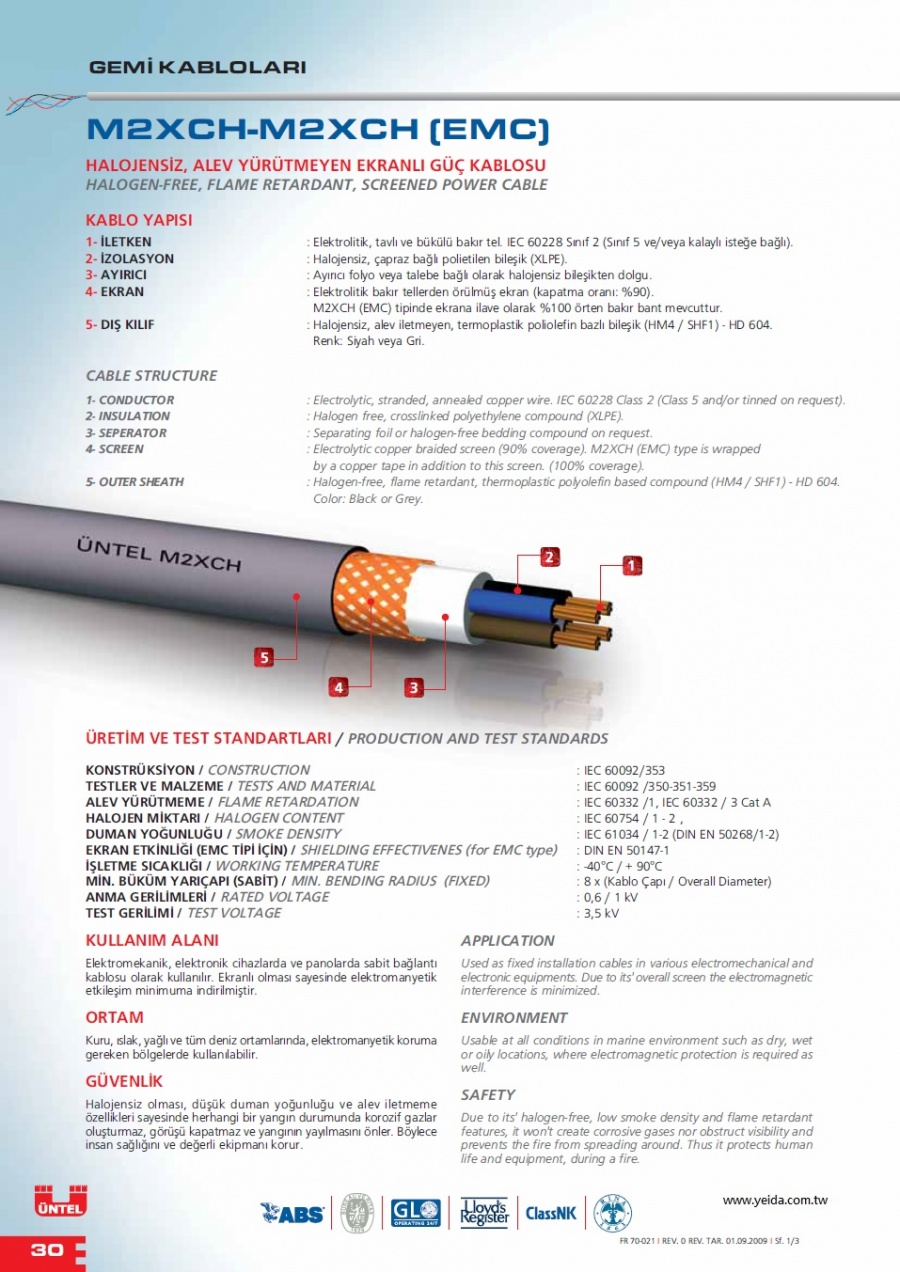

    M2XCH-M2XCH (EMC)

    HALOGEN-FREE, FLAME RETARDANT, SCREENED POWER CABLE

    CABLE STRUCTURE

    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).

    2- INSULATION : Halogen free, crosslinked polyethylene compound (XLPE).

    3- SEPERATOR : Separating foil or halogen-free bedding compound on request.

    4- SCREEN : Electrolytic copper braided screen (90% coverage). M2XCH (EMC) type is wrapped by a copper tape in addition to this screen. (100% coverage).

    5- OUTER SHEATH : Halogen-free, flame retardant, thermoplastic polyolefin based compound (HM4 / SHF1) - HD 604. Color: Black or Grey.

    PRODUCTION AND TEST STANDARDS

    CONSTRUCTION : IEC 60092/353

    TESTS AND MATERIAL : IEC 60092 /350-351-359

    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3

    HALOGEN CONTENT : IEC 60754 / 1 - 2 ,

    SMOKE DENSITY : IEC 61034 / 1-2 (DIN EN 50268/1-2)

    SHIELDING EFFECTIVENES (for EMC type) : DIN EN 50147-1

    WORKING TEMPERATURE : -40°C / + 90°C

    MIN. BENDING RADIUS (FIXED) : 8 x (Overall Diameter)

    RATED VOLTAGE : 0,6 / 1 kV

    TEST VOLTAGE : 3,5 kV

    APPLICATION

    Used as fixed installation cables in various electromechanical and electronic equipments. Due to its overall screen the electromagnetic interference is minimized.

    應用於各種機電和電子設備固定安裝電纜。由於其的整體屏幕電磁干擾被最小化。

    ENVIRONMENT

    Usable at all conditions in marine environment such as dry, wet or oily locations, where electromagnetic protection is required as well.

    SAFETY

    Due to its halogen-free, low smoke density and flame retardant features, it wont create corrosive gases nor obstruct visibility and prevents the fire from spreading around. Thus it protects human life and equipment, during a fire.
    可用在海洋環境中,如乾燥,潮濕或油膩的位置,當需要以及電磁防護的所有條件。

    由於其“無鹵素,低煙霧密度和阻燃特性,它不會產生腐蝕性氣體也不妨礙可見性,並防止火勢周圍蔓延。因此,保護人的生命和設備,在火災中。
