    首頁 > Kabel-Marine Cable

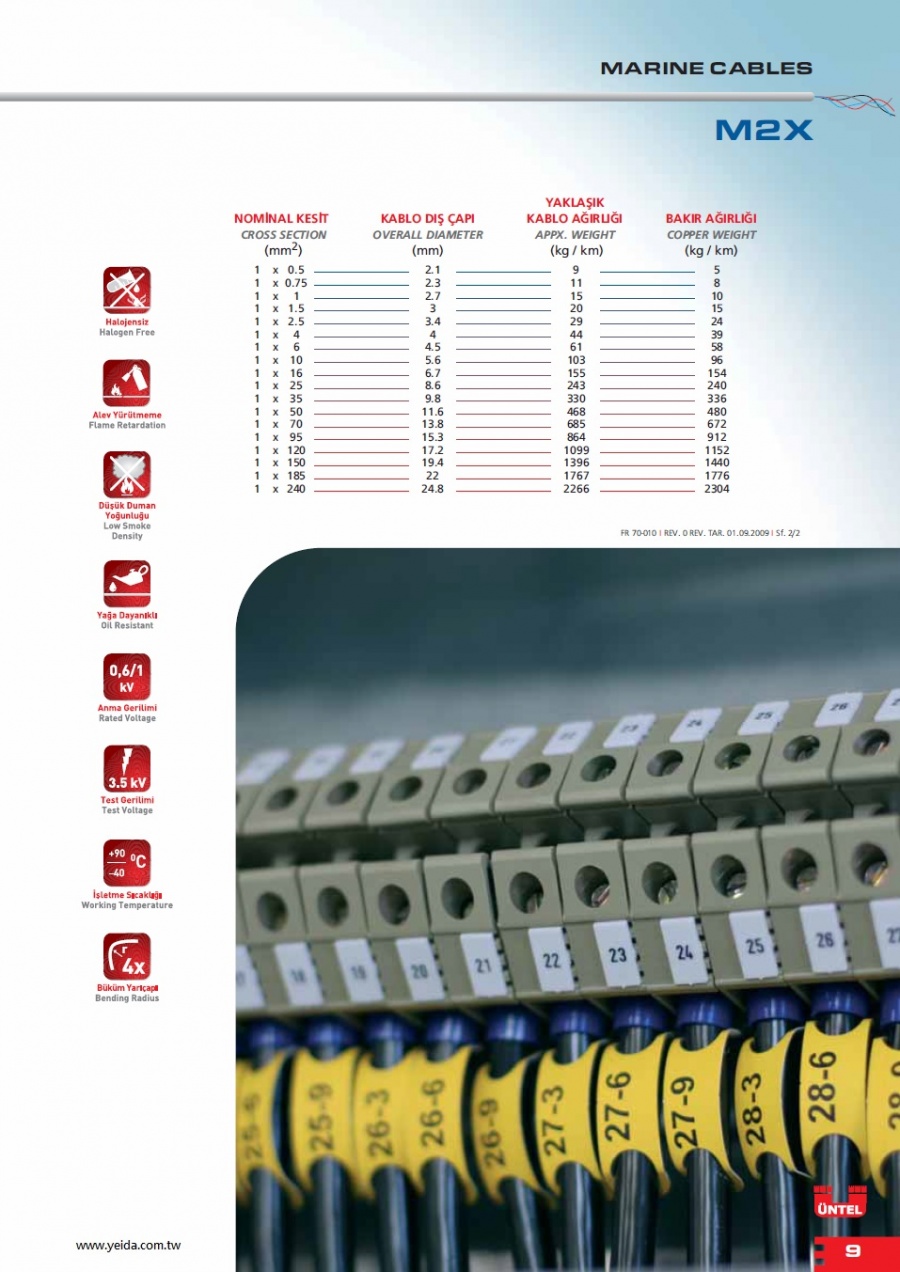

    M2X HALOGEN-FREE, FLAME RETARDANT, INSULATED PANEL WIRE 無鹵,阻燃,船舶用電源連接線
    看原圖
    30197512




      商品編號: UNTL-M2X

    M2X HALOGEN-FREE, FLAME RETARDANT, INSULATED PANEL WIRE 無鹵,阻燃,船舶用電源連接線






    ★★★★商品說明★★★★



    M2X

    HALOGEN-FREE, FLAME RETARDANT, INSULATED PANEL WIRE

    CABLE STRUCTURE
    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire IEC 60228 Class 5 (Class 2 and/or tinned on request).

    2- INSULATION : Halogen free, flame retardant, crosslinked polyolefin compound (HF90). Color: Black (other colors available on request). Double insulation is available on request.

    PRODUCTION AND TEST STANDARDS

    ONSTRUCTION : IEC 60092/353

    TESTS AND MATERIAL : IEC 60092 /350-351-359

    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3

    HALOGEN CONTENT : IEC 60754 / 1 - 2 ,

    SMOKE DENSITY : IEC 61034 / 1-2 (DIN EN 50268/1-2)

     WORKING TEMPERATURE : -40°C / + 90°C

    MIN. BENDING RADIUS (FIXED) : 4 x (Overall Diameter)

    RATED VOLTAGE : 0,6/1 kV

    TEST VOLTAGE : 3,5 kV


    APPLICATION

    Used as fixed installation cables in various electromechanical and electronic equipments. Since it has type approval, it can be used in marine switchboards.

    ENVIRONMENT

    Usable at all conditions in marine environment such as dry, wet or oily locations.

    SAFETY

    Due to its halogen free and flame retardant features, it wont create corrosive gases and prevents the fire from spreading around. Thus it protects human life and equipment, during a fire.
