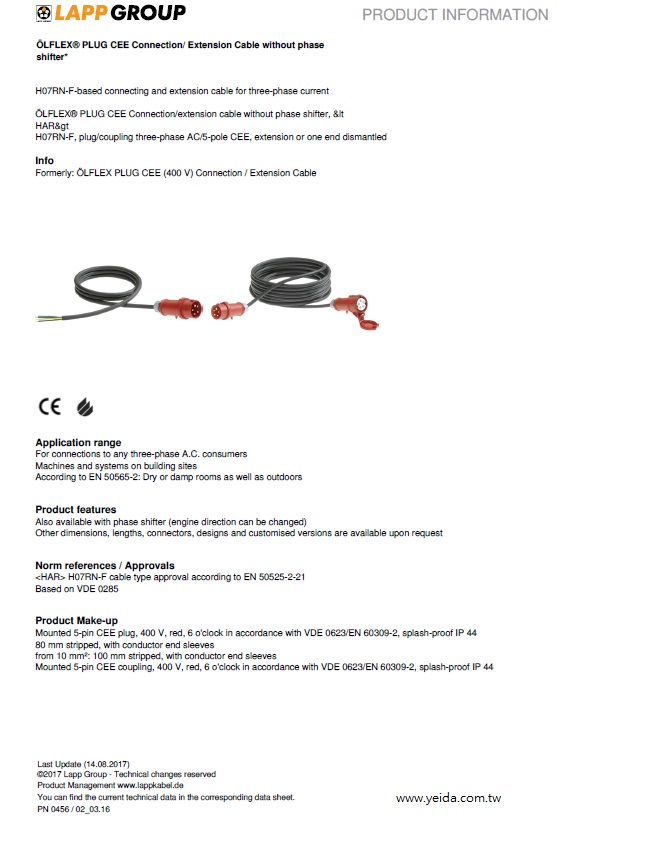

    LAPP-OLFLEX PLUG CEE Connection/ Extension Cable without phase shifter 工業級歐規接頭連接線 Configurable, H07RN-F-based connection and extension cable for three-phase current
    看原圖
    5323207

    商品編號: LAPP-OLFLEX-PLUG-CEE

    LAPP, OLFLEX  PLUG CEE Connection/ Extension Cable without phase shifter 工業級歐規接頭連接線 Configurable, H07RN-F-based connection and extension cable for three-phase current


    ÖLFLEX® PLUG CEE Connection/ Extension Cable without phase shifter

    Configurable, H07RN-F-based connection and extension cable for three-phase current

    Application range

    • For connections to any three-phase A.C. consumers
    • Machines and systems on building sites
    • Dry and damp interiors, as well as outdoor use
    Part number Plug Ampere Number of cores and mm² per conductor Cable diameter/ in mm Length in m Copper index kg/km
    ÖLFLEX® PLUG CEE connection cable
    71222231 16 5 G 1,5 11,2 - 14,4 2.5 180
    71222239 16 5 G 1,5 11,2 - 14,4 5 360
    71222232 16 5 G 2,5 13,3 - 17 2.5 300
    71222240 16 5 G 2,5 13,3 - 17 5 600
    71222241 32 5 G 2,5 13,3 - 17 5 600
    71222234 32 5 G 4 15,6 - 19,9 2.5 480
    71222242 32 5 G 4 15,6 - 19,9 5 960
    71222243 32 5 G 6 17,5 - 22,2 5 1440
    ÖLFLEX® PLUG CEE extension Cable
    71222292 16 5 G 1,5 11,2 - 14,4 10 720
    71222295 16 5 G 2,5 13,3 - 17 10 1200
    71222296 16 5 G 2,5 13,3 - 17 25 3000
    71222298 32 5 G 2,5 13,3 - 17 10 1200
    71222299 32 5 G 2,5 13,3 - 17 25 3000
    71222301 32 5 G 4 15,6 - 19,9 10 1920
    71222302 32 5 G 4 15,6 - 19,9 25 4800
    71222304 32 5 G 6 17,5 - 22,2 10 2880
    71222305 32 5 G 6 17,5 - 22,2 25 7200
    71222230         1150

    Design

    • Mounted CEE plug 5-pin, 400 V, red, 6 o'clock accordance to VDE 0623/ EN 60309-2 splash-proof IP 44
    • 80 mm stripped, with conductor end sleeves
    • Mounted CEE coupling 5-pin, 400 V, red, 6 o'clock accordance to VDE 0623/ EN 60309-2 splash-proof IP 44

    Product features

    • Also with phase shifter available (engine direction can be changed)
    • Other dimensions, lengths, connectors, and customised versions available on request
    • Customised printing on request
