    首頁 > LAPP-ÖLFLEX® Harnessed cables 2

    LAPP-OLFLEX PLUG CEE Connection/ Extension Cable with phase shifter 工業級歐規接頭連接線 Configurable, H07RN-F-based connection and extension cable for three-phase current
    看原圖
    5323210

    商品編號: LAPP-OLFLEX-PLUG-CEE-2

    LAPP-OLFLEX PLUG CEE Connection/ Extension Cable with phase shifter 工業級歐規接頭連接線 Configurable, H07RN-F-based connection and extension cable for three-phase current

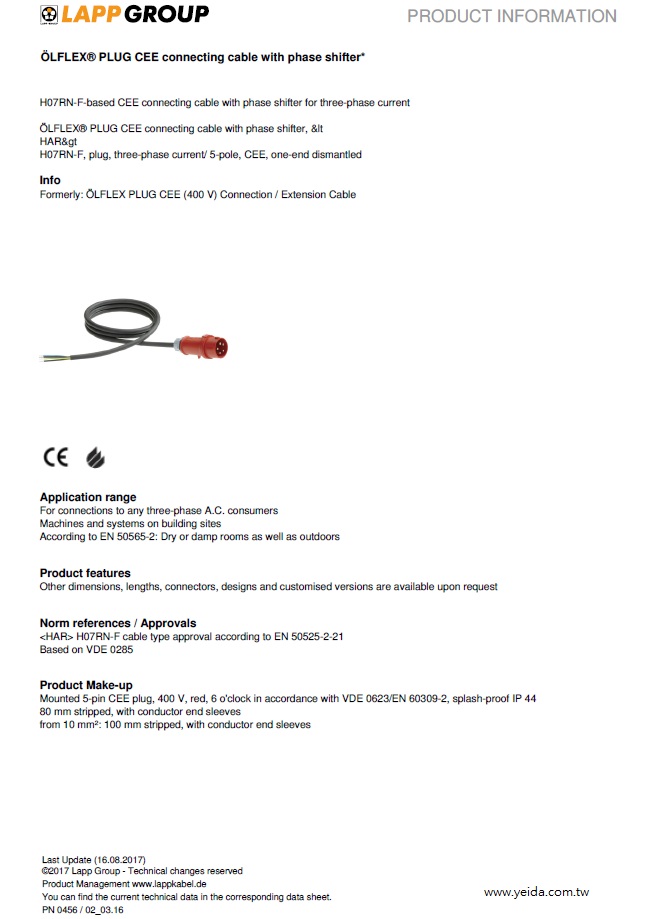

    ÖLFLEX® PLUG CEE Connection/ Extension Cable with phase shifter

    Configurable, H07RN-F-based connection and extension cable for three-phase current

    Application range

    • For connections to any three-phase A.C. consumers
    • Machines and systems on building sites
    • Dry and damp interiors, as well as outdoor use
    Part number Number of cores and mm² per conductor Outer diameter in mm Article designation Länge in m Copper index kg/km Weight kg/km Plug Ampere
    71002837 5 G 1,5 11,2 - 14,4 H07RN-F 3.5 252 984 16
    71002840 5 G 2,5 13,3 - 17 H07RN-F 3.5 420 1331.5 16
    71002843 5 G 1,5 11,2 - 14,4 H07RN-F 3.5 252 990 16
    71002844 5 G 1,5 11,2 - 14,4 H07RN-F 5 360 1350 16
    71002846 5 G 2,5 13,3 - 17 H07RN-F 3.5 420 1360 16
    71002847 5 G 2,5 13,3 - 17 H07RN-F 5 600 1880 16

    Design

    • Mounted CEE plug 5-pin, 400 V, red, 6 o'clock accordance to VDE 0623/ EN 60309-2 splash-proof IP 44
    • 80 mm stripped, with conductor end sleeves
    • Mounted CEE coupling 5-pin, 400 V, red, 6 o'clock accordance to VDE 0623/ EN 60309-2 splash-proof IP 44

    Product features

    • Also with phase shifter available (engine direction can be changed)
    • Other dimensions, lengths, connectors, and customised versions available on request
    • Customised printing on request
