    首頁 > LAPP-ÖLFLEX® Harnessed cables 2

    LAPP, Pre-wired front plug for PLC SIMATIC® S7-400 工業級含接頭連接線 Single cores used are extra thin and allow space saving installation
    看原圖
    5323224

    商品編號: LAPP-PLUG-SIMATIC-S7-400

    LAPP, Pre-wired front plug for PLC SIMATIC® S7-400 工業用
    預接線前插頭 Single cores used are extra thin and allow space saving installation

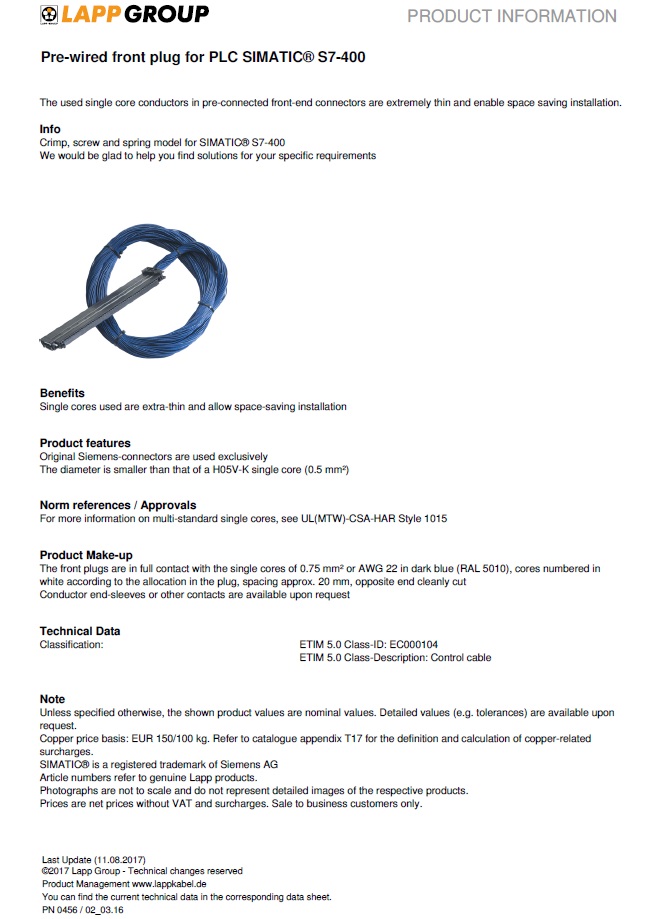

    Pre-wired front plug for PLC SIMATIC® S7-400

     Single cores used are extra thin and allow space saving installation
    Part number Colour mm² Length in m SEW item designation Copper index kg/km Weight kg/1000 pieces
    Pre-wired front plug for PLC SIMATIC® S7-400 (492-1CL00-0AA0) 48-pole, crimp version
    70268421 deep blue RAL 5010 0,75 5   1695 2500
    Pre-wired front plug for PLC SIMATIC® S7-400 (492-1AL00-0AA0) 48-pole, screw-on version
    70268423 deep blue RAL 5010 0,75 3   1017 1600
    70268424 deep blue RAL 5010 0,75 5   1695 2500
    Pre-wired front plug for PLC SIMATIC® S7-400 (492-1BL00-0AA0) 48-pole, spring version
    70260046 deep blue RAL 5010 0,75 4   1356 2000
    70268427 deep blue RAL 5010 0,75 5   1695 2500
    70260053 dark blue RAL 5010 - with UL(MTW) single cores 0,5 / AWG22 2   442 1100

    Design

    • The front plugs are completely contacted with single cores of 0,75 mm² or AWG 22 in dark blue (RAL 5010), cores numbered in white according to the allocation in the plug, spacing approx. 20 mm, opposite end cleanly cut
    • On request, also available with conductor end sleeves or other contacts on the second end

    Approvals (Norm references)

    • For more information on multi-standard single cores, see UL(MTW)-CSA-HAR Style 1015

    Product features

    • Original Siemens-connectors are used exclusively
    • Outer diameter is smaller than a H05V-K single core (0,5 mm2)
