    LAPP-OLFLEX® SERVO Basic Line符合西門子6FX5002(PVC)

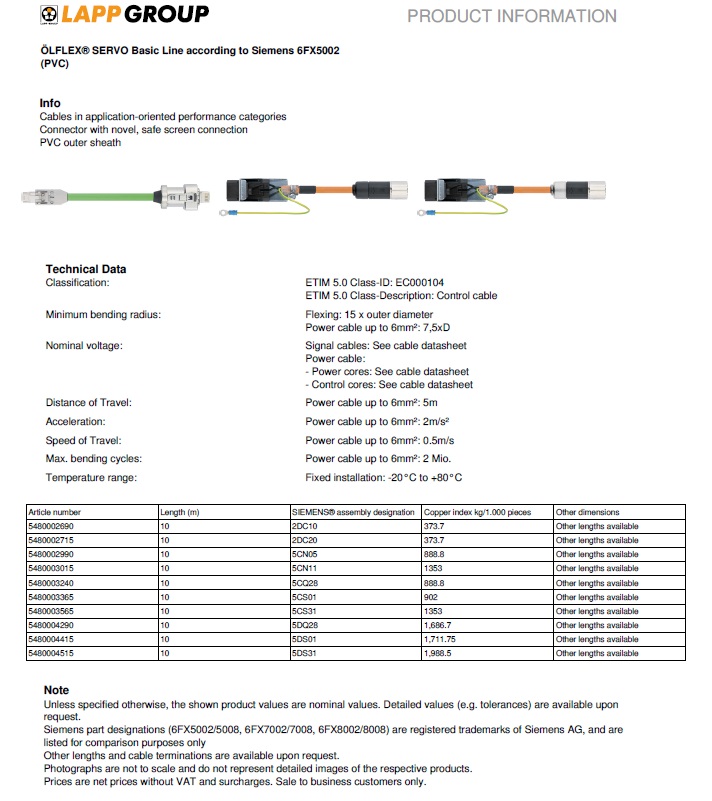

    看原圖
    5322976

    商品編號: LAPP-S-SIEMENS-6FX5002

    LAPP, O
    LFLEX, SERVO Basic Line符合西門子6FX5002(PVC)

    This cable to SIEMENS® Standard 6FX5002 is the high-quality yet more economical version of the highly flexible 6FX8002 version; 100% compatible with SIEMENS® systems; The oil-resistant PVC sheath allows them to be used particularly in industrial areas; For fixed / static installation.

    Benefits

    • Regional manufactured worldwide available
    • Lapp quality standards

    Application range

    • Food production and packaging machinery
    • Woodworking Machinery

    Product features

    • PVC servo cable, shielded
    • Basic Line for static and slowly moving applications with resistant PVC outer mantle
    • Innovative connnector concept

    Norm references / Approvals

    • Design according to SIEMENS® standard 6FX 5002
    • Flame-retardant according to IEC 60332-1-2, VW-1, FT1

    Product Make-up

    • Full range of types
    • brake wire with 1.5mm² wire gauge

    Classification

    • ETIM 5.0 Class-ID: EC000104
    • ETIM 5.0 Class-Description: Control cable

    Minimum bending radius

    • Flexing: 15 x outer diameter
    • Power cable up to 6mm²: 7,5xD

    Nominal voltage

    • Signal cables: See cable datasheet
    • Power cable:
      - Power cores: See cable datasheet
      - Control cores: See cable datasheet

    Distance of Travel

    • Power cable up to 6mm²: 5m
    •

    Acceleration

    • Power cable up to 6mm²: 2m/s²
    •

    Speed of Travel

    • Power cable up to 6mm²: 0.5m/s
    •

    Max. bending cycles

    • Power cable up to 6mm²: 2 Mio.
    •

    Temperature range

    • Fixed installation: -20°C to +80°C

    Note

    •  Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
    • Siemens part designations (6FX5002/5008, 6FX7002/7008, 6FX8002/8008) are registered trademarks of Siemens AG, and are listed for comparison purposes only
    • Other lengths and cable terminations are available upon request.
    • Photographs are not to scale and do not represent detailed images of the respective products.
