    首頁 > LAPP- Special applications工業級連接線

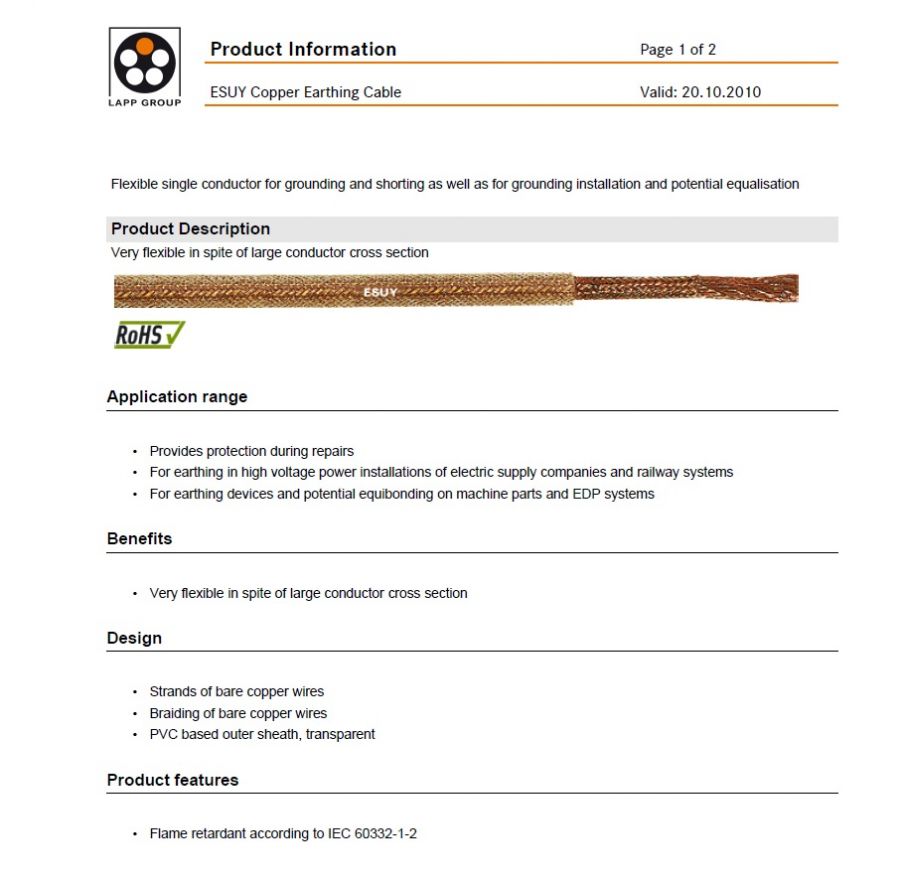

    LAPP- ÖLFLEX® ESUY Copper Earthing Cable 工業級(超柔移動式)單芯接地線 Flexible single conductor for grounding and shorting as well as for grounding installation and potential equalisation
    看原圖
    5317592

    商品編號: LAPP-OLFLEX-ESUY-Earthing , google, 東元, 太平洋電線

    LAPP- OLFLEX ESUY Copper Earthing Cable 工業級(超柔移動式)單芯接地線 Flexible single conductor for grounding and shorting as well as for grounding installation and potential equalisation

    Flexible single conductor for grounding and shorting as well as for grounding installation and potential equalisation

    Very flexible in spite of large conductor cross section

    Application range

    • Provides protection during repairs
    • For earthing in high voltage power installations of electric supply companies and railway systems
    • For earthing devices and potential equibonding on machine parts and EDP systems
    Specific insulation resistance
    > 20 GOhm x cm
    Conductor stranding
    see article table
    Minimum bending radius
    Flexible use: 12 x outer diameter
    Test voltage
    2000 V
    Range of temperature
    Flexible use: -5°C up to +70°C

    Design

    • Strands of bare copper wires
    • Braiding of bare copper wires
    • PVC based outer sheath, transparent

    Product features

    • Flame retardant according to IEC 60332-1-2
    Part number Outer diameter in mm Conductor cross section in mm² Conductor stranding: Number of wires x wire diameter in mm Copper index kg/km Weight kg/km
    4571101 8,8 16 4200 x 0,07 177 230
    4571102 10,4 25 3192 x 0,1 275 316
    4571103 12,4 35 4480 x 0,1 387 475
    4571104 14,6 50 6383 x 0,1 560 670
    4571105 17 70 8918 x 0,1 791 905
    4571106 19,8 95 12100 x 0,1 1069 1220

    Footnote:
    All product related values as shown are nominal values unless specified differently. Further values, e.g. tolerances we submit on request - if available and released for publication.
    Copper price basis: EUR 150 / 100 kg; For utilization and definition of 'Metal price basis' and 'Metal index' see Appendix T17
    Packaging size: Coil ≤ 30 kg, otherwise drum
    Please specify the desired packaging size (e.g. 1 x 500 m drum or 5 x 100 m coils)
    Photographs are not to scale and do not represent detailed images of the respective products.

    ESUY Copper Earthing Cable 銅絲股編織接地電纜

    ■ 產品特性
    • ESUY接地電纜由銅絲股編織而成
    • 抗應力能力強,滿足鐵路系統中高應力的
    要求

    ■ 國際認證 CE, UL, CSA, ROHS

    ■ 應用範圍
    • ESUY 安全接地電纜在維修工作中起到保護
    作用
    • 用於高電壓的電源安裝中帶電部分的接地
    • 接地電纜柔性高,因此亦可用於接地系統和
    機器部件及資料處理系統中的等電位連接,
    但該電纜的導體截面積較大

    ■ 電纜結構
    • 多股精絞成束超細裸銅絲
    • 額外的裸銅絲編織
    • 透明 PVC 外護套

    ■ 技術參數
    測試電壓 U0/U : 2000 V

    導體結構 : 採用多股細絞或精絞成束裸銅絲

    最小彎曲半徑 :
    移動安裝:12 x 電纜外徑

    使用溫度範圍:-5° C 至 +70° C
