    首頁 > LAPP- Special applications工業級連接線

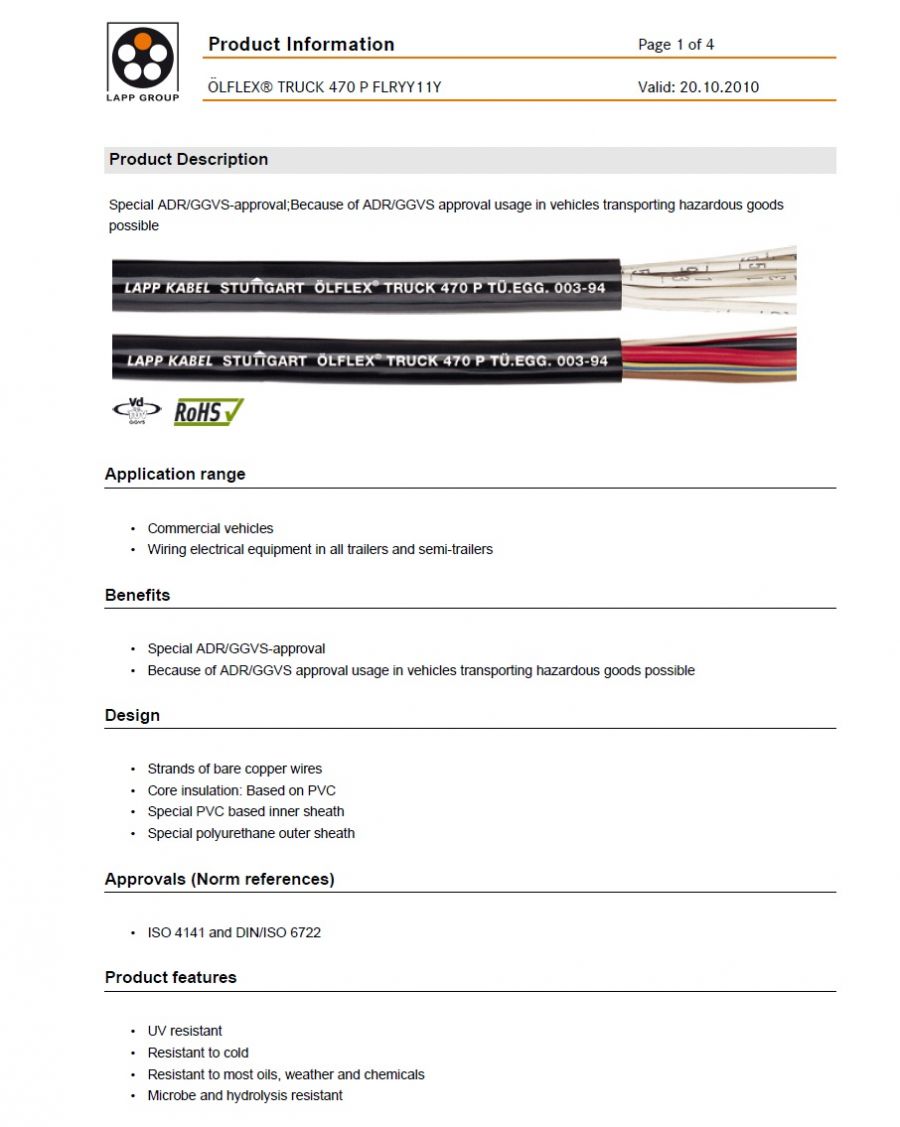

    LAPP- ÖLFLEX® TRUCK 470 P FLRYY11Y 車輛等使用電線Special ADR/GGVS-approval;  usage in vehicles transporting hazardous
    看原圖
    5318523

    商品編號: LAPP-OLFLEX-TRUCK-470P-FLRYY11Y

    LAPP- ÖLFLEX® TRUCK 470 P FLRYY11Y 車輛等使用電線Special ADR/GGVS-approval; usage in vehicles transporting hazardous

    Special ADR/GGVS-approval; Because of ADR/GGVS approval usage in vehicles transporting hazardous goods possible

    Application range

    • Commercial vehicles
    • Wiring electrical equipment in all trailers and semi-trailers

    Design

    • Strands of bare copper wires
    • Core insulation: Based on PVC
    • Special PVC based inner sheath
    • Special polyurethane outer sheath

    Approvals (Norm references)

    • ISO 4141 and DIN/ISO 6722

    Product features

    • UV resistant
    • Resistant to cold
    • Resistant to most oils, weather and chemicals
    • Microbe and hydrolysis resistant




    ★★★★商品規格描述★★★★

    Part number Outer diameter in mm Colour Copper index kg/km Weight kg/km
    ÖLFLEX® TRUCK 470 P FLRYY11Y
    7027080 6 white/ black 19.2 55
    7027081 6 white/ brown 19.2 55
    7027020 6,6 white/ black 28.8 68
    7027021 6,6 white/ brown 28.8 68
    7027082 6,3 black/ brown/ blue 28.8 67
    7027022 6,3 white/ brown/ blue newest ISO design 28.8 67
    7027083 6,8 white/ black/ red/ brown 38.4 81
    7027038 7,5 white/ black/ red/ brown 57.6 106
    7027084 7,5 white/ brown/ green/ red/ grey 48 97
    7027085 9 1.0=green/ brown/red/ blue/ violet; 2.5=white 72 133
    7027086 9 1.0=yellow/ black/ red/ blue/ violet; 2.5=white 72 133
    7027025 9 1.0=brown/ green/ red/ grey/violet; 2.5=white newest ISO design 72 133
    7027087 10,3 ISO 4141 1.5=black/ yellow/ red/ green/ broen/ blue; 2.5=white 110.4 187
    7027130 7,3 white/ black/ yellow/ red/ green/ brown/ blue 50.4 101
    7027088 8,9 white/ black/ yellow/ red/ green/ brown/ blue 100.8 166
    7027089 11,7 ISO 4141 + grey/ violet 139.2 239
    7027090 14,4 white with black numbers; 1.5=No. 1-3,5-8,10-12; 2.5=No. 4,9,13; 1.5=No. 14,15 244.8 391
    7027030 14,4 ISO 12098 244.8 395
    7027091 14,4 white with black numbers; 1.5=No. 1-3,5-8,10-12; 2.5=No. 4,9,13 216 367
    7027031 14,4 1.5=yellow/ green/ blue/ black/ brown/ red/ pink/ grey/ white-black/ white-blue; 2.5=white/ orange/ white-red 216 367
    7027046 7,2 0.75=white/ brown; 1.5=yellow/ green 43.2 85
    7027092 12,1 DIN 72570 6.0=red/ brown; 1.5=black/ yellow/ white 158.4 267
    7027093 12,1 DIN 72570 6.0=red/ brown; 1.5=black/ yellow/ white; 1.5=white-grey/ white-brown 187.2 321
    7027094 12,1 DIN 72570 4.0=red/brown; 1.5=black/ yellow/ white; 1.5=white-grey/ white-brown 148.8 257
    7027024 13,7 white with black numbers 259.2 407
    7027032 16,1 white with black numbers 360 560
