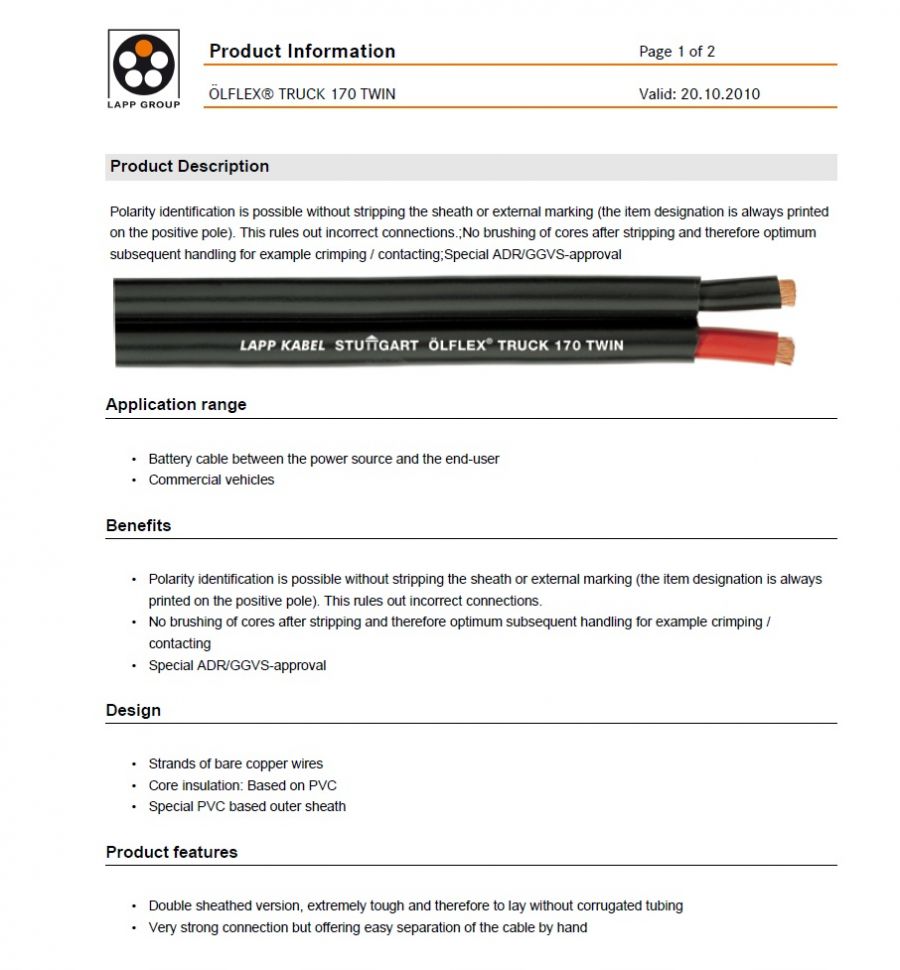

    LAPP- ÖLFLEX® TRUCK 170 TWIN 車輛等使用電線Battery cable between the power source and the end-user
    看原圖
    5318525

    商品編號: LAPP-OLFLEX-TRUCK-170-TWIN

    LAPP- ÖLFLEX® TRUCK 170 TWIN 車輛等使用電線Battery cable between the power source and the end-user

    Polarity identification is possible without stripping the sheath or external marking (the item designation is always printed on the positive pole). This rules out incorrect connections.; No brushing of cores after stripping and therefore optimum subsequent handling for example crimping / contacting; Special ADR/GGVS-approval

    Application range

    • Battery cable between the power source and the end-user
    • Commercial vehicles

    Design

    • Strands of bare copper wires
    • Core insulation: Based on PVC
    • Special PVC based outer sheath

    Product features

    • Double sheathed version, extremely tough and therefore to lay without corrugated tubing
    • Very strong connection but offering easy separation of the cable by hand




    ★★★★商品規格描述★★★★

    Part number Number of cores and mm² per conductor Outer dimensions Width x height mm Copper index kg/km
    ÖLFLEX® TRUCK 170 TWIN PVC/PVC
    7027055 2 X 6 15,2 x 7,1 120
    7027056   18,8 x 8,9 200
    7027057   21 x 10 308
    7027058   25,6 x 12,3 480
    7027059   28,4 x 13,5 672
    7027054   33 x 16 960
    7027052   39,8 x 18,4 1350

    ÖLFLEX® TRUCK 170 TWIN PUR/PVC
    7027079   28 x 13,5 672
