    首頁 > LAPP- Special applications工業級連接線

    LAPP- ÖLFLEX® TRAFFIC 3GKW 工業級(鐵路系統)單芯超柔移動式連接線 Single core cable for increased requirements in railway applications

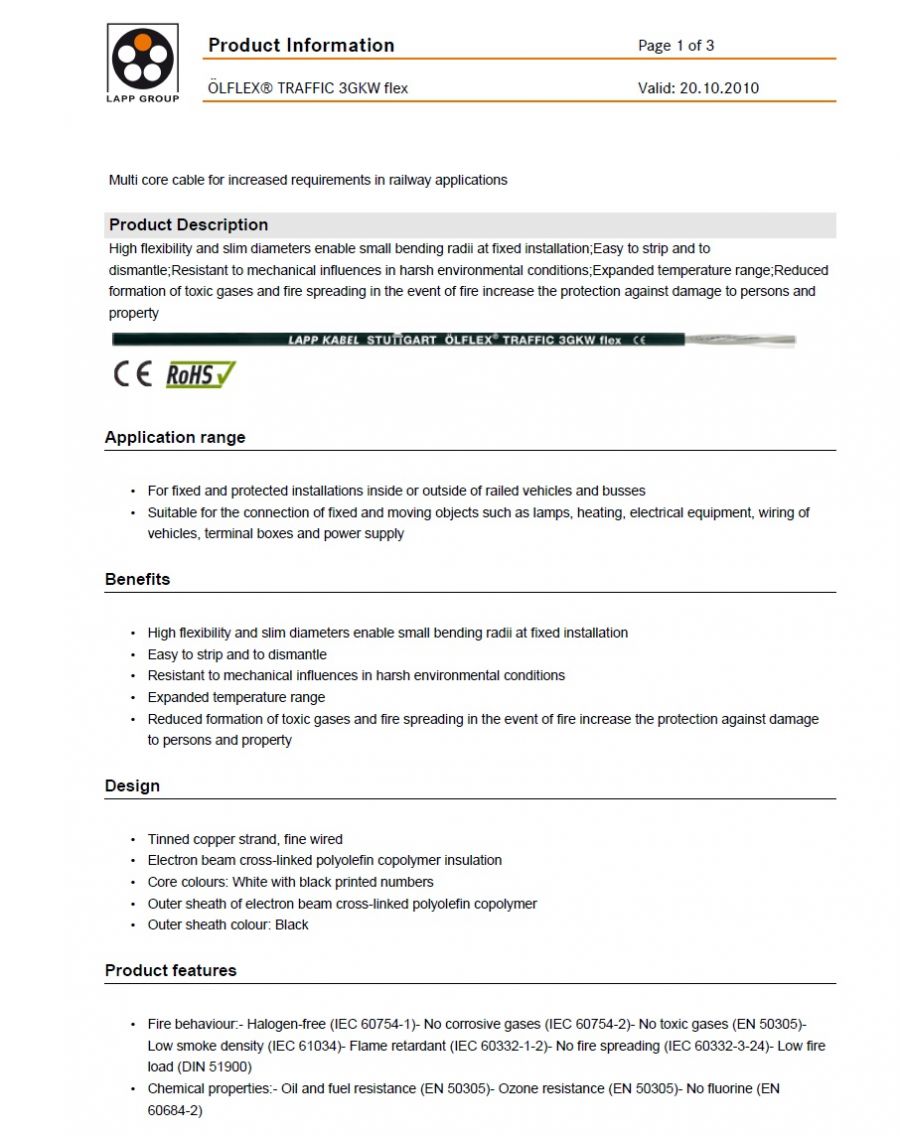

    看原圖
    5318526

    商品編號: LAPP-OLFLEX-TRAFFIC-3GKW

    LAPP- ÖLFLEX® TRAFFIC 3GKW 工業級(鐵路系統)單芯超柔移動式連接線 Single core cable for increased requirements in railway applications

    Single core cable for increased requirements in railway applications

     High flexibility and slim diameters enable small bending radii at fixed installation; Easy to strip and to dismantle; Resistant to mechanical influences in harsh environmental conditions; Expanded temperature range; Reduced formation of toxic gases and fire spreading in the event of fire increase the protection against damage to persons and property

    Application range

    • For fixed and protected installations inside or outside of railed vehicles and busses
    • Suitable for the connection of fixed and moving objects such as lamps, heating, electrical equipment, wiring of vehicles, terminal boxes and power supply

    Design

    • Tinned copper strand, fine wired
    • Electron beam cross-linked polyolefin copolymer insulation
    • Colour: grey or green-yellow
    • Outer sheath of electron beam cross-linked polyolefin copolymer
    • Outer sheath colour: Black

    Product features

    • Fire behaviour:- Halogen-free (IEC 60754-1)- No corrosive gases (IEC 60754-2)- No toxic gases (EN 50305)- Low smoke density (IEC 61034)- Flame retardant (IEC 60332-1-2)- No fire spreading (IEC 60332-3-24)- Low fire load (DIN 51900)
    • Chemical properties:- Oil and fuel resistance (EN 50305)- Ozone resistance (EN 50305)- No fluorine (EN 60684-2)
