LAPP ÖLFLEX® EB CY 工業級(銅網隔離)連接線According to DIN EN 60079-14; VDE 0165 part 1 intrinsically safe circuits
ÖLFLEX® EB CY
According to DIN EN 60079-14; VDE 0165 part 1
Space saving installation due to small cable diameters; Copper wire braid of the ÖLFLEX® EB CY protects signal transmission within intrinsically safe circuits against electromagnetic interference
Application range
- Installation of intrinsically safe circuits, where a special cable marking for hazard area type "i"- intrinsically safety is specified
- In EMI critical environment (electromagnetic interference)
ÖLFLEX® EB CY
According to DIN EN 60079-14; VDE 0165 part 1
Space saving installation due to small cable diameters; Copper wire braid of the ÖLFLEX® EB CY protects signal transmission within intrinsically safe circuits against electromagnetic interference
Application range
- Installation of intrinsically safe circuits, where a special cable marking for hazard area type "i"- intrinsically safety is specified
- In EMI critical environment (electromagnetic interference)
Technical Data
- Core identification code
Black with white numbers acc. to VDE 0293
- Mutual capacitance
Core/core approx. 135 nF/km Core/screen approx. 185 nF/km
- Inductivity
approx. 0.65 mH/km
- Based on
HD 21.13 S1
VDE 0281 Part 13
- Specific insulation resistance
> 20 GOhm x cm
|
- Conductor stranding
Fine wire in accordance to VDE 0295 Class 5 / IEC 60228 Class 5
- Minimum bending radius
Occasional flexing: 20 x cable diameter
Fixed installed: 6 x outer diameter
- Rated voltage
< 50 V AC < 75 V DC see Info
- Test voltage
Core/core: 3000 V
Core/screen: 2000 V
- Range of temperature
Occasional flexing: -5°C up to +70°C
Fixed installation: -40°C up to +80°C
|
Design
- Fine strands of bare copper wires
- PVC insulation LAPP P8/1
- Plastic foil wrapping
- tinned copper braid
- PVC outer sheath, sky blue RAL 5015
Approvals (Norm references)
- According to DIN EN 60079-14 section 12.2.2 (VDE 0165 part 1) - Electrical characteristics and marking of wires and cables
Product features
- Flame retardant according to IEC 60332-1-2
- High coverage degree of the screenlow transfer impedance (max. 250 Ω/km at 30 MHz)
|
0012640 |
2 X 0,75 |
6,2 |
43 |
56 |
|
0012641 |
3 X 0,75 |
6,5 |
52 |
70 |
|
0012642 |
4 X 0,75 |
7 |
61 |
95 |
|
0012643 |
5 X 0,75 |
7,7 |
72 |
108 |
|
0012644 |
7 X 0,75 |
8,3 |
89 |
168 |
|
0012645 |
12 X 0,75 |
10,9 |
138 |
216 |
|
0012646 |
18 X 0,75 |
12,7 |
211 |
315 |
|
0012647 |
25 X 0,75 |
14,8 |
280 |
435 |
|
|
0012650 |
2 X 1,0 |
6,5 |
51 |
84 |
|
0012651 |
3 X 1,0 |
6,8 |
62 |
110 |
|
0012652 |
5 X 1,0 |
8,1 |
88 |
156 |
|
0012653 |
7 X 1,0 |
8,8 |
112 |
192 |
|
0012654 |
12 X 1,0 |
11,5 |
185 |
285 |
|
0012655 |
18 X 1,0 |
13,9 |
268 |
395 |
|
0012656 |
25 X 1,0 |
15,9 |
354 |
656 |
|
|
0012660 |
2 X 1,5 |
7,1 |
65 |
87 |
|
0012661 |
3 X 1,5 |
7,5 |
82 |
112 |
|
0012662 |
5 X 1,5 |
8,9 |
119 |
148 |
|
0012663 |
7 X 1,5 |
9,9 |
154 |
193 |
|
0012664 |
12 X 1,5 |
13 |
268 |
365 |
|
0012666 |
25 X 1,5 |
17,9 |
530 |
734 |
|
Footnote:
All product related values as shown are nominal values unless specified differently. Further values, e.g. tolerances we submit on request - if available and released for publication.
Photographs are not to scale and do not represent detailed images of the respective products. |

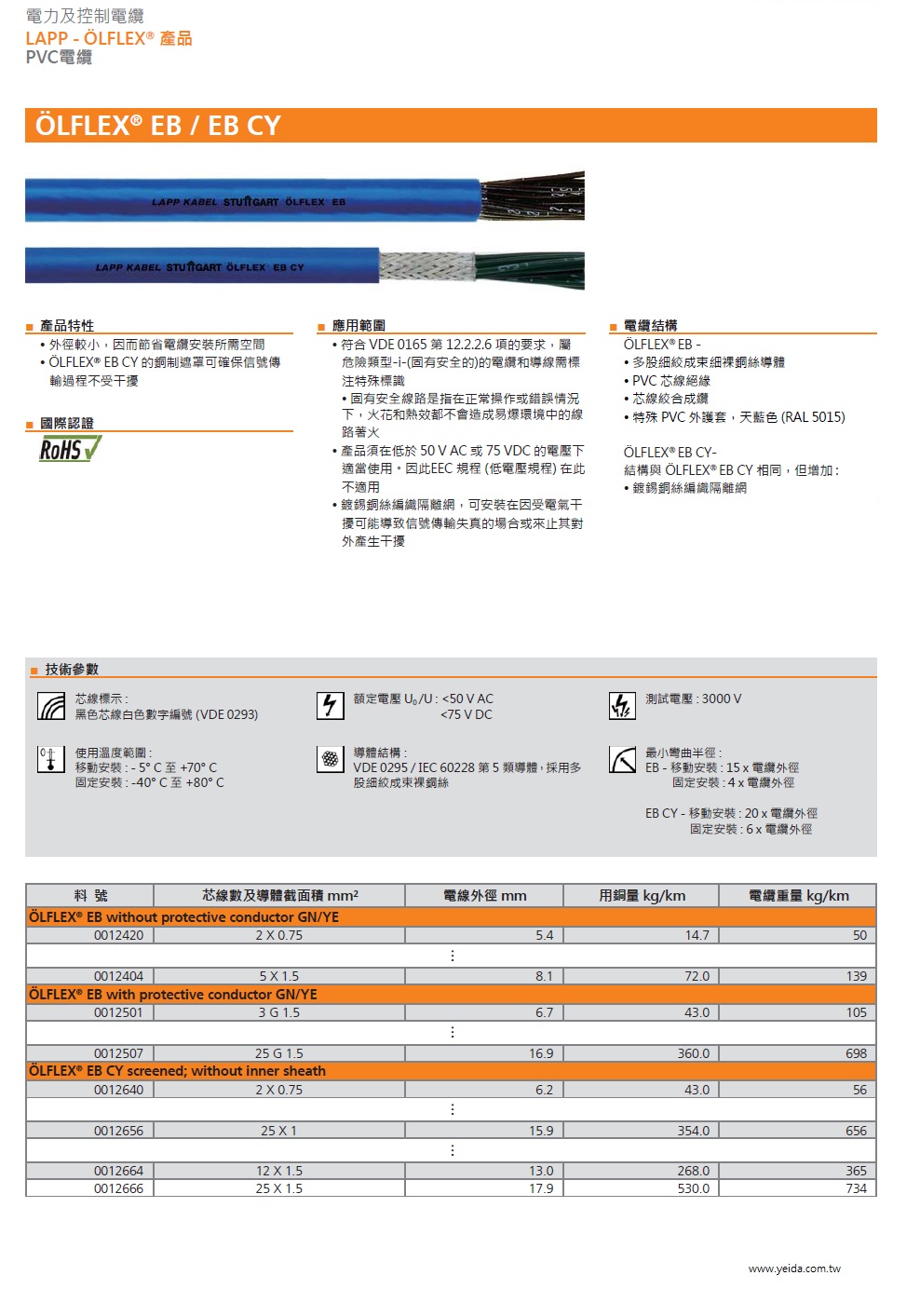

LAPP ÖLFLEX® EB / EB CY 工業本安級 (本質安全) PVC電力及控制電纜
■ 產品特性
• 外徑較小,因而節省電纜安裝所需空間
• ÖLFLEX® EB CY 的銅制遮罩可確保信號傳輸過程不受干擾
■ 應用範圍
• 符合 VDE 0165 第 12.2.2.6 項的要求,屬危險類型-i-(固有安全的)的電纜和導線需標注特殊標識
• 固有安全線路是指在正常操作或錯誤情況下,火花和熱效都不會造成易爆環境中的線路著火
• 產品須在低於 50 V AC 或 75 VDC 的電壓下適當使用。因此EEC 規程 (低電壓規程) 在此不適用
• 鍍錫銅絲編織隔離網,可安裝在因受電氣干擾可能導致信號傳輸失真的場合或來止其對外產生干擾
■ 電纜結構 ÖLFLEX® EB -
• 多股細絞成束細裸銅絲導體
• PVC 芯線絕緣 • 芯線絞合成纜 • 特殊 PVC 外護套,天藍色 (RAL 5015)
ÖLFLEX® EB CY- 結構與 ÖLFLEX® EB CY 相同,但增加 :
• 鍍錫銅絲編織隔離網
|
