    首頁 > LAPP-Field Bus and Industrial Ethernet Cable (工業級乙太網路)

    LAPP-ETHERLINE® 2 Pair: CAT5/ CAT5e BUS Cable for Static & Continuous Flexing Applications
    看原圖
    5077367




    商品編號: LAPP-ETHERLINE-2Pair

    LAPP-ETHERLINE® 2 Pair: CAT5/ CAT5e BUS Cable for Static & Continuous Flexing Applications


    ETHERLINE® CAT5/ CAT5e Industrial Ethernet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, ETHERLINE® CAT5/ CAT5e Cables support half-duplex high speed communications.

    Recommended Applications:
    PLC and DCS automation networks, Device and Field Level Networking, ProfiNet®, Ethernet IP and other Industrial Ethernet Networks

    Application Advantage:
    • Signal integrity in continuous motion applications
    • Flame resistant
    • Oil resistant
    • Flexible for ease of routing



    ★★★★商品說明★★★★


    Solid and stranded conductor options; FPE insulation with foil and braid shielding; jacketing options include PVC, Halogen-Free FRNC, and PUR.

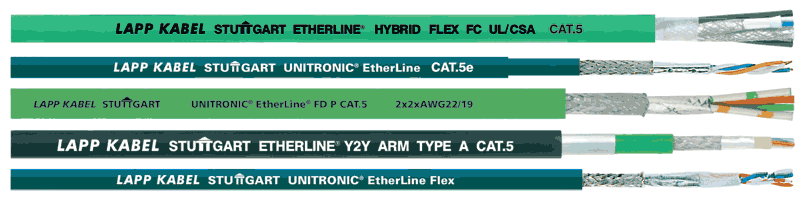

    Etherline 2 pair

    Availability
    Standard put-ups are 328ft, 1640ft and 3,280ft. Bulk reels can be cut to length.


    OR-01
    FR-02
    FL-
    02
    MP-01



    Minimum Bend Radius:
      - Static:   5 x cable diameter
      - Flexing:   10 x cable diameter
    Temperature Range:
      - Static:   -40°C to +80°C
      - Flexing:   -20°C to +80°C
    Nominal Voltage:   125V Peak not for Power
    Test Voltage:
      - Conductor/Conductor:   1000V
      - Conductor/Shield:   500V
    Character Impedance:   100 Ohm +/- 15 Ohms
    Nominal Capacitance:   17 pF/ft
    Color Code:   White/Orange & Orange
    White/Green & Green
    Approvals: UL: CMG (2170893 & 2170494)


    ★★★★商品規格描述★★★★

    Part Number Jacket AWG Size # of Pairs Category Nominal Outer Diameter Approx.
    Weight
    inches mm lbs/mft kg/km
    Halogen-Free: CAT 5e
    2170280 Zero Halogen 24 AWG 2 CAT 5e .228 5.8 30 45
    2170281 PUR 24 AWG 2 CAT 5e .228 5.8 36 53
    PROFINET 22 AWG
    2170893 PVC 22 AWG 2 CAT 5 .256 6.5 38 56
    Outdoor- Direct Burial
    2170494 PVC 22 AWG 2 CAT 5e .307 7.8 42 62
    2170496 PVC/PE Armored 22 AWG 2 CAT 5 .366 9.3 83 124
    Halogen-Free: CAT 5
    2170283 Zero Halogen 26 AWG 2 CAT 5 .213 5.4 29 43
    2170284 PUR 26 AWG 2 CAT 5 .228 5.8 30 45
    Continuous Flex- Halogen-Free
    2170289 PUR 26 AWG 2 CAT 5 .240 6.1 32 48

    PROFINET is a registered trademark of the PNP.
