    LAPP OLFLEX HEAT 180 SiHF High Temperature Silicone Control Cable(低煙無毒)
    看原圖
    5075284

    商品編號: LAPP-OLFLEX-HEAT-180-SiHF ,google, yahoo, belden, alphabet

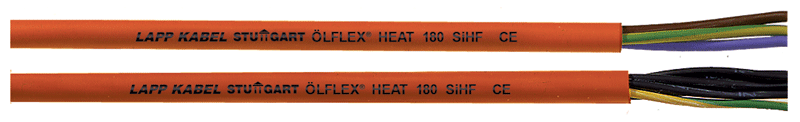

    LAPP OLFLEX  HEAT 180 SiHF High Temperature Silicone Control Cable 低煙無毒矽橡膠耐高溫電纜


    OLFLEX® HEAT 180 SiHF is a high temperature silicone cable with a European color code. It has a temperature rating of 180ºC and is halogen-free.

    Recommended Applications:
    Foundries, Steel mills, Glass factories, Furnaces, Commercial baking
    equipment and other high temperature applications

    Application Advantage:
    • Rated for 180ºC and can handle rapid increases in heat
    • Excellent low temperature of -50ºC
    • Red halogen-free jacket
    • Fine stranding for great flexibility



    Finely stranded tinned copper conductors; silicone insulation; dry lubricant; red silicone jacket.

    Silflex SiHf
    Availability
    Standard put-ups are 328ft, 1640ft, and 3,280ft. Bulk reels can be cut to length


    OR-02
    FR-01
    FL-01
    MP-01



    Minimum Bend Radius:
      for installation: 4 x cable diameter
    Temperature Range: -50°C to +180°C
    Working Voltage: 300/500V
    Test Voltage: 2000V
    Conductor stranding: Fine Wire per VDE 0295, Class 5 IEC 60228 Cl.5
    Color Code :
      up to 5 conductors:   VDE 0293-30, Chart 6
      6 or more conductors:   Black with white numbers plus green/yellow ground
    Approvals:   Based on VDE specifications

    Old Part Number New Part Number Number of Conductors
    includes ground
    Nominal
    Outer Diameter
    Approx
    Weight
    inches mm lbs/mft kg/km
    18 AWG (32/32) 1.0 mm?/font>
    46007 0046007 2 0.260 6.6 40 60
    46008 0046008 3 0.276 7.0 53 78
    46009 00460093 4 0.311 7.9 63 95
    46010 00460103 5 0.346 8.8 78 116
    46011 0046011 6 0.374 9.5 90 135
    46012 0046012 7 0.374 9.5 97 144
    16 AWG (30/30) 1.50 mm?/font>
    46013 0046013 2 0.299 7.6 55 82
    46014 0046014 3 0.315 8.0 66 98
    46015 00460153 4 0.346 8.8 82 122
    46016 00460163 5 0.378 9.6 99 148
    46017 0046017 6 0.409 10.4 117 173
    46018 0046018 7 0.409 10.4 126 187
    46039 0046039 12 0.551 14.0 212 315
    46040 0046040 16 0.638 16.2 300 446
    46041 0046041 20 0.689 17.5 380 566
    46042 0046042 24 0.780 19.8 485 722
    14 AWG (50/30) 2.50 mm?/font>
    46019 0046019 2 0.346 8.8 91 135
    46020 0046020 3 0.382 9.7 102 152
    46021 00460213 4 0.417 10.6 127 189
    46022 00460223 5 0.457 11.6 154 229
    46023 0046023 6 0.496 12.6 180 269
    46024 0046024 7 0.496 12.6 197 293
    12 AWG (56/28) 4 mm?/font>
    46025 0046025 2 0.425 10.8 122 181
    46026 0046026 3 0.453 11.5 151 224
    46027 00460273 4 0.496 12.6 198 295
    46028 00460283 5 0.551 14.0 241 359
    46030 0046030 7 0.614 15.6 323 480
    10 AWG (84/28) 6 mm?/font>
    46031 0046031 2 0.488 12.4 184 274
    46032 0046032 3 0.520 13.2 227 338
    46033 00460333 4 0.579 14.7 297 442
    46034 00460343 5 0.654 16.6 359 535
    46036 0046036 7 0.732 18.6 461 686
    8 AWG (80/26) 10 mm?/font>
    46037 00460373 4 0.764 19.4 475 707
    46045 00460453 5 0.850 21.6 582 867
    6 AWG (128/26) 16 mm?/fon>
      00460383   0.866 22.0 664 988

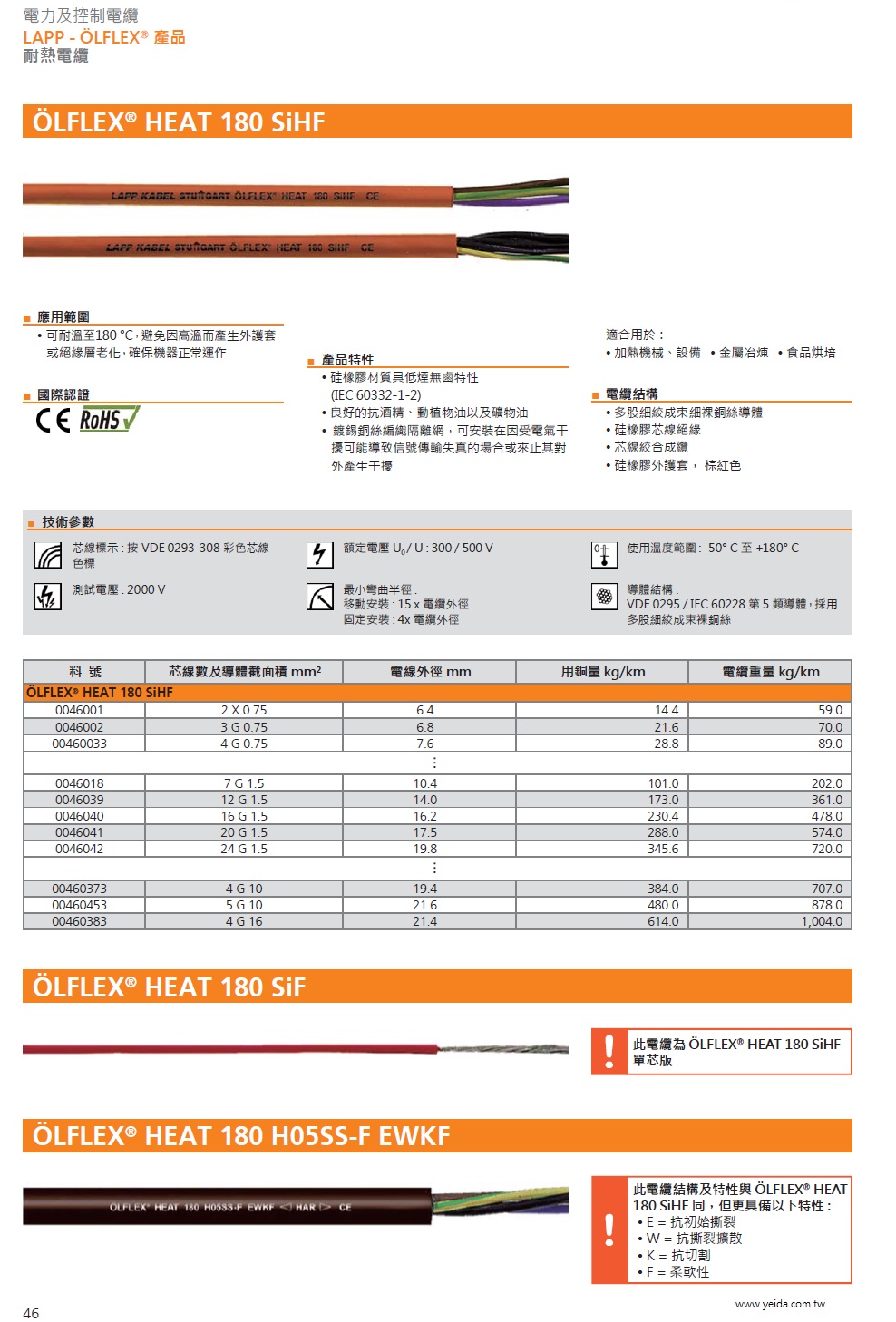

    OLFLEX  HEAT 180 SiHF IEC 60332-1-2 低煙無毒矽橡膠耐高溫電纜

    ■ 應用範圍
    • 可耐溫至180 °C,避免因高溫而產生外護套
    或絕緣層老化,確保機器正常運作

    ■ 國際認證 CE, ROHS

    ■ 產品特性
    • 硅橡膠材質具低煙無鹵特性
    (IEC 60332-1-2)
    • 良好的抗酒精、動植物油以及礦物油
    • 鍍錫銅絲編織隔離網,可安裝在因受電氣干
    擾可能導致信號傳輸失真的場合或來止其對
    外產生干擾
    適合用於:
    • 加熱機械、設備 • 金屬冶煉 • 食品烘培

    ■ 電纜結構
    • 多股細絞成束細裸銅絲導體
    • 硅橡膠芯線絕緣
    • 芯線絞合成纜
    • 硅橡膠外護套, 棕紅色

    ■ 技術參數
    芯線標示: 按VDE 0293-308 彩色芯線
    色標

    額定電壓U0 / U : 300 / 500 V
    測試電壓 : 2000 V

    導體結構 :
    VDE 0295 / IEC 60228 第5 類導體,採用
    多股細絞成束裸銅絲

    最小彎曲半徑 :
    移動安裝: 15 x 電纜外徑
    固定安裝: 4x 電纜外徑

    使用溫度範圍:-50° C 至 +180° C
