    LAPP OLFLEX ROBOT 900 P-Robotic Cable for Continuous Twisting Motion超柔移動式防水防油汙耐磨損扭曲)機器手臂專用連接線
    看原圖
    5069271

    商品編號: LAPP-ROBOT-900P ,google, yahoo, msn, belden

    LAPP-OLFLEX® ROBOT 900 P-Robotic Cable for Continuous Twisting Motion
    超柔移動式防水防油汙耐磨損扭曲)機器手臂專用連接線


    OLFLEX® ROBOT 900 P is a multi-conductor cable that transmits control
    and monitoring signals as well as power. Its high quality insulation with
    smooth surface and low friction wraps increases cable life expectancy under
    extreme twisting and bending stresses. The outer jacket of specially
    formulated polyurethane is highly resistant to abrasion, oil, notching,
    microbes and hydrolysis. In addition, the surface quality prevents adhesion
    to adjacently installed cables. The OLFLEX® ROBOT 900 DP with a tinned
    copper spiral shield is used for applications where EMI emissions need to
    be suppressed.


    Recommended Applications:
    Where combined twisting and bending stresses occur on end-of-arm tooling
    of assembly and welding robots and automated handling equipment


    Application Advantage:
    • The smooth elastomeric core insulation
    and low friction tape improves service
    life in applications where combined
    twisting and bending occur
    • The specially formulated PUR jacket
    provides protection in the most harsh
    industrial plant environments preventing
    unplanned downtime and associated
    costs
    • Maximum torsion twist of +/- 360° per
    meter is suitable for a wide variety of
    robot applications

    OLFLEX® ROBOT 900 P Construction:


    Finely stranded bare copper conductors; special elastomeric insulation; low friction core wrap; specially formulated UV
    resistant black polyurethane jacket with matte finish.

    Minimum Bend Radius:
      for continuous flexing: 15 x cable diameter
    Max. torsion (twist):
      without shield: ±360°/Meter
      with shield: ±180°/Meter
    Temperature Range: -40°C to +80°C
    Nominal Voltage: 300/500V
    Test Voltage:
      from 0.5 mm2: 3000V
      from 0.34 mm2: 1500V
    Conductor stranding: Flexible Fine Wire
    Color Code :
      from 0.5 mm2:   DIN 47100, Chart 8
      from 0.34 mm2:   Black with white numbers plus green/yellow ground
    Nominal capacitance:   Cond./cond. approx. 30.5 pF/Ft
          Cond./cond./ shield. approx. 36.6 pF/Ft


    Part Number Number of Conductors
    includes ground
    Nominal
    Outer Diameter
    Approx
    Weight
    inches mm lbs/mft kg/km
    24 AWG (14/34) 0.25 mm2
    LAPP 0028116 25 0.402 10.2 95 141
    21 AWG (16/32) 0.50 mm2
    OLFLEX 0028145 18 0.441 11.2 81 120
    0028146 25 0.524 13.3 171 254
    19 AWG (24/32) 0.75 mm2
    0028160 4 0.260 6.6 42 63
    0028164 14 0.449 11.4 134 199
    18 AWG (32/32) 1.00 mm2
    0028170 2 0.244 6.2 32 47
    0028171 3 0.256 6.5 41 61
    0028172 4 0.283 7.2 51 76
    0028174 7 0.366 9.3 88 131
    0028176 12 0.453 11.5 145 216
    0028185 16 0.650 16.5 253 376
    0028178 18 0.520 13.2 204 304
    0028186 23 + 1pr 0.681 17.3 316 470
    0028180 25 0.646 16.4 291 433
    0028190 34 0.783 19.9 380 565
    0028191 41 0.843 22.3 468 696
    16 AWG (30/30) 1.50 mm2
    0028198 18 0.622 15.8 300 446
    0028200 25 0.776 19.7 429 638
    14 AWG (50/30) 2.50 mm2
    0028181 3 0.366 9.3 91 136
    0028182 4 0.398 10.1 115 171
    12 AWG (50/28) 4 mm2
    0028184 3 0.484 12.3 152 226
    8 AWG (80/26) 10 mm2
    0028300 3 0.720 18.3 347 517
    6 AWG (128/26) 16 mm2
    0028400 3 0.843 21.4 484 721
    4 AWG (200/26) 25 mm2
    0028187 3 1.031 26.2 791 1178
    2 AWG (280/26) 35 mm2
    0028189 3 1.134 28.8 1047 1559

    For 28185 & 28186: includes one individually shielded pair

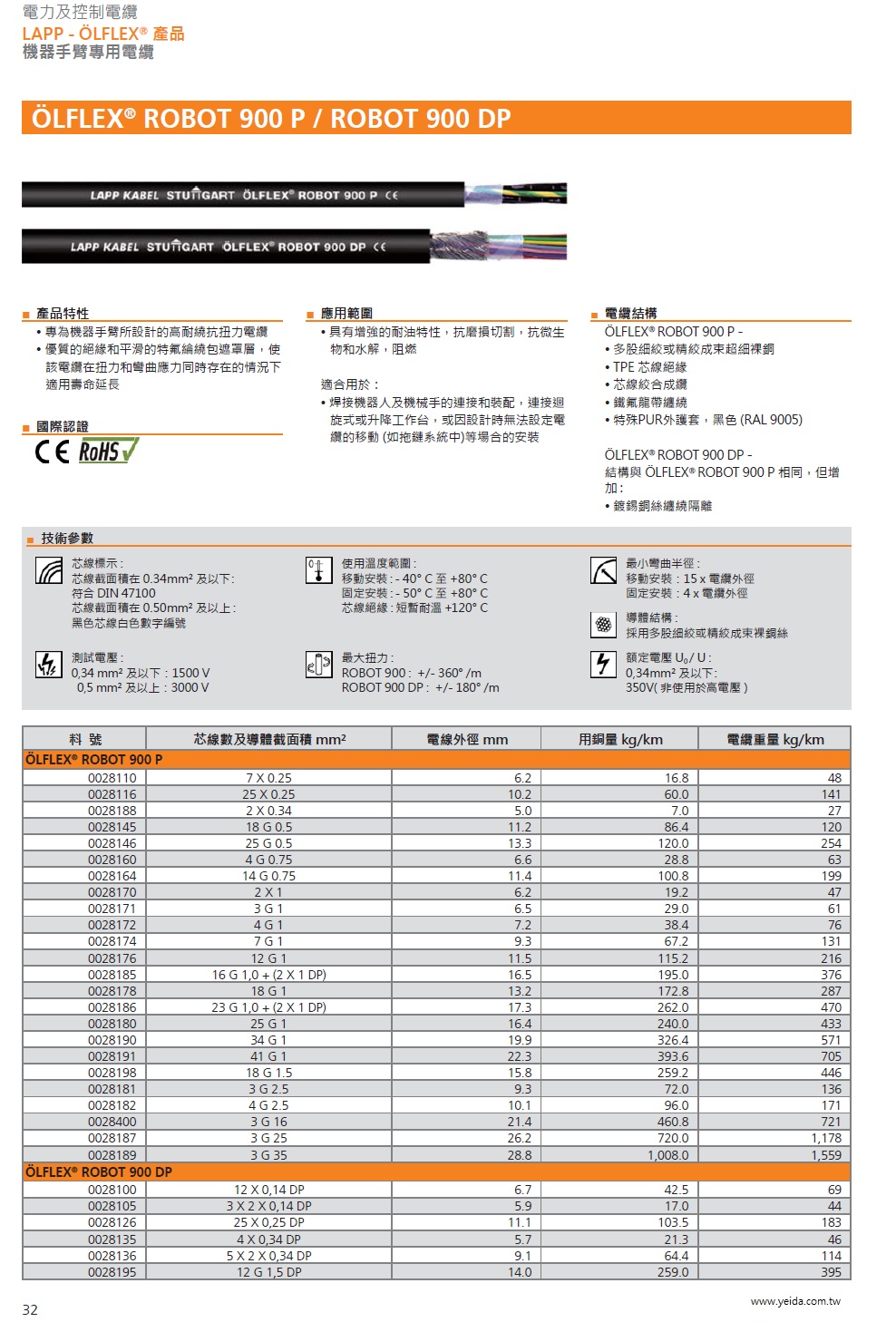

    ÖLFLEX ® ROBOT 900 P / ROBOT 900 DP 機器手臂專用電纜

    ■ 產品特性
    • 專為機器手臂所設計的高耐繞抗扭力電纜
    • 優質的絕緣和平滑的特氟綸繞包遮罩層,使
    該電纜在扭力和彎曲應力同時存在的情況下
    適用壽命延長


    ■ 國際認證 CE, ROHS


    ■ 應用範圍
    • 具有增強的耐油特性,抗磨損切割,抗微生
    物和水解,阻燃
    適合用於:
    • 焊接機器人及機械手的連接和裝配,連接迴
    旋式或升降工作台,或因設計時無法設定電
    纜的移動 (如拖鏈系統中)等場合的安裝


    ■ 電纜結構
    ÖLFLEX® ROBOT 900 P -
    • 多股細絞或精絞成束超細裸銅
    • TPE 芯線絕緣
    • 芯線絞合成纜
    • 鐵氟龍帶纏繞
    • 特殊PUR外護套,黑色 (RAL 9005)
    ÖLFLEX® ROBOT 900 DP -
    結構與 ÖLFLEX® ROBOT 900 P 相同,但增
    加 :
    • 鍍錫銅絲纏繞隔離

    ■ 技術參數
    芯線標示:
    芯線截面積在0.34mm² 及以下:
    符合DIN 47100
    芯線截面積在0.50mm² 及以上:
    黑色芯線白色數字編號


    額定電壓U0 / U :
    0,34mm² 及以下:
    350V( 非使用於高電壓)


    測試電壓 :
    0,34 mm² 及以下:1500 V
    0,5 mm² 及以上:3000 V


    導體結構 :
    採用多股細絞或精絞成束裸銅絲
    最大扭力 :
    ROBOT 900 : +/- 360° /m
    ROBOT 900 DP : +/- 180° /m


    最小彎曲半徑 :
    移動安裝:15 x 電纜外徑
    固定安裝:4 x 電纜外徑


    使用溫度範圍:
    移動安裝:- 40° C 至 +80° C
    固定安裝:- 50° C 至 +80° C
    芯線絕緣:短暫耐溫+120
