    LAPP-OLFLEX® ROBOT 900 DP Robotic Cable for Continuous Twisting Motion超柔移動式防水防油汙耐磨損扭曲)機器手臂專用附隔離連接線
    看原圖
    5069285

    商品編號: LAPP-ROBOT-900DP ,google, alphabet, yahoo, belden

    LAPP-OLFLEX® ROBOT 900 DP Robotic Cable for Continuous Twisting Motion
    超柔移動式防水防油汙耐磨損扭曲)機器手臂專用附隔離連接線


    OLFLEX® ROBOT 900 P is a multi-conductor cable that transmits control and monitoring signals as well as power. Its high quality insulation with smooth surface and low friction wraps increases cable life expectancy under extreme twisting and bending stresses. The outer jacket of specially formulated polyurethane is highly resistant to abrasion, oil, notching, microbes and hydrolysis. In addition, the surface quality prevents adhesion to adjacently installed cables. The OLFLEX® ROBOT 900 DP with a tinned copper spiral shield is used for applications where EMI emissions need to be suppressed.

    Recommended Applications:
    Where combined twisting and bending stresses occur on end-of-arm tooling of assembly and welding robots and automated handling equipment

    Application Advantage:
    • The smooth elastomeric core insulation and low friction tape improves service life in applications where combined twisting
       and bending occur
    • The specially formulated PUR jacket provides protection in the most harsh industrial plant environments preventing
       unplanned downtime and associated costs
    • Maximum torsion twist of +/- 360¡ per meter is suitable for a wide variety of robot applications


    Finely stranded bare copper conductors; special elastomeric insulation; low friction core wrap; tinned copper spiral shield, specially formulated UV resistant black polyurethane jacket with matte finish.

    Minimum Bend Radius:
      for continuous flexing: 15 x cable diameter
    Max. torsion (twist):
      without shield: ±360°/Meter
      with shield: ±180°/Meter
    Temperature Range: -40°C to +80°C
    Nominal Voltage: 300/500V
    Test Voltage:
      from 0.5 mm2: 3000V
      from 0.34 mm2: 1500V
    Conductor stranding: Flexible Fine Wire
    Color Code :
      from 0.5 mm2:   DIN 47100, Chart 8
      from 0.34 mm2:   Black with white numbers plus green/yellow ground
    Nominal capacitance:   Cond./cond. approx. 30.5 pF/Ft
          Cond./cond./ shield. approx. 36.6 pF/Ft


    Part Number Number of Conductors
    includes ground
    Nominal
    Outer Diameter
    Approx
    Weight
    inches mm lbs/mft kg/km
    26 AWG (18/38) 0.14 mm2
    0028100 12 0.264 6.7 46 69
    0028105 3 Pairs 0.232 5.9 30 44
    24 AWG (14/34) 0.25 mm2
    0028126 25 0.437 11.1 123 183
    22 AWG (19/34) 0.34 mm2
    0028135 4 0.224 5.7 31 46
    0028136 5 Pairs 0.358 9.1 77 114
    16 AWG (30/30) 1.50 mm2
    0028195 12 0.551 14 265 395
    0028199 18 0.665 16.9 396 590

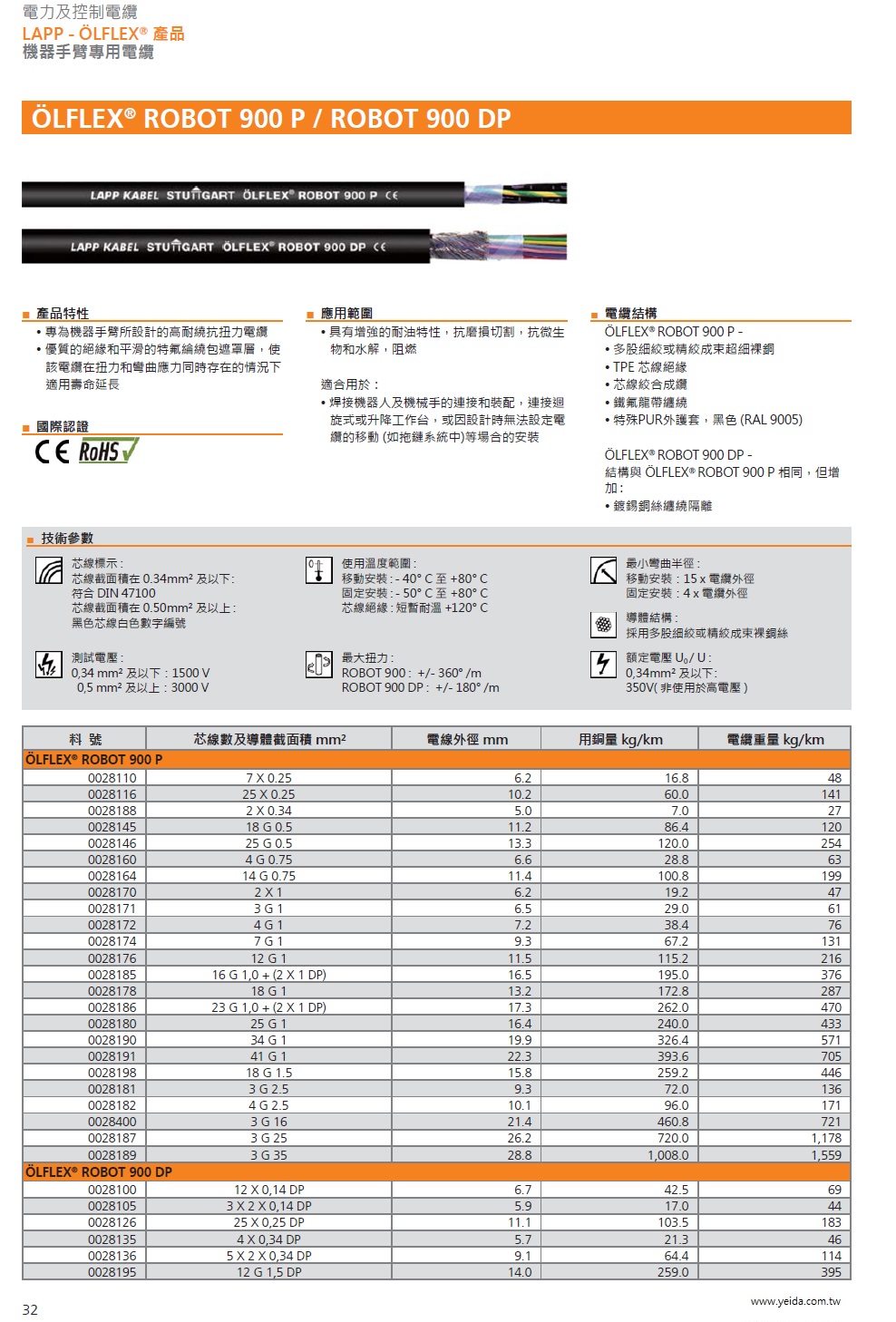

    ÖLFLEX ® ROBOT 900 P / ROBOT 900 DP 機器手臂專用電纜

    ■ 產品特性
    • 專為機器手臂所設計的高耐繞抗扭力電纜
    • 優質的絕緣和平滑的特氟綸繞包遮罩層,使
    該電纜在扭力和彎曲應力同時存在的情況下
    適用壽命延長


    ■ 國際認證 CE, ROHS


    ■ 應用範圍
    • 具有增強的耐油特性,抗磨損切割,抗微生
    物和水解,阻燃
    適合用於:
    • 焊接機器人及機械手的連接和裝配,連接迴
    旋式或升降工作台,或因設計時無法設定電
    纜的移動 (如拖鏈系統中)等場合的安裝


    ■ 電纜結構
    ÖLFLEX® ROBOT 900 P -
    • 多股細絞或精絞成束超細裸銅
    • TPE 芯線絕緣
    • 芯線絞合成纜
    • 鐵氟龍帶纏繞
    • 特殊PUR外護套,黑色 (RAL 9005)
    ÖLFLEX® ROBOT 900 DP -
    結構與 ÖLFLEX® ROBOT 900 P 相同,但增
    加 :
    • 鍍錫銅絲纏繞隔離

    ■ 技術參數
    芯線標示:
    芯線截面積在0.34mm² 及以下:
    符合DIN 47100
    芯線截面積在0.50mm² 及以上:
    黑色芯線白色數字編號


    額定電壓U0 / U :
    0,34mm² 及以下:
    350V( 非使用於高電壓)


    測試電壓 :
    0,34 mm² 及以下:1500 V
    0,5 mm² 及以上:3000 V


    導體結構 :
    採用多股細絞或精絞成束裸銅絲
    最大扭力 :
    ROBOT 900 : +/- 360° /m
    ROBOT 900 DP : +/- 180° /m


    最小彎曲半徑 :
    移動安裝:15 x 電纜外徑
    固定安裝:4 x 電纜外徑


    使用溫度範圍:
    移動安裝:- 40° C 至 +80° C
    固定安裝:- 50° C 至 +80° C
    芯線絕緣:短暫耐溫+120
