• for medium load requirements
• PVC outer jacket
• flame-retardant

Classification of the Chainflex® cable:
Class 4.2.1
Requirements:
4: Cables with special design for continuous movement in E-Chains® for medium stressing capacity for radii from 7.5 x d, speed up to 3.0 m/s
Travel distance:
2: unsupported and sliding up to 50 m
Resistance to oil:
1: No oil resistance
　

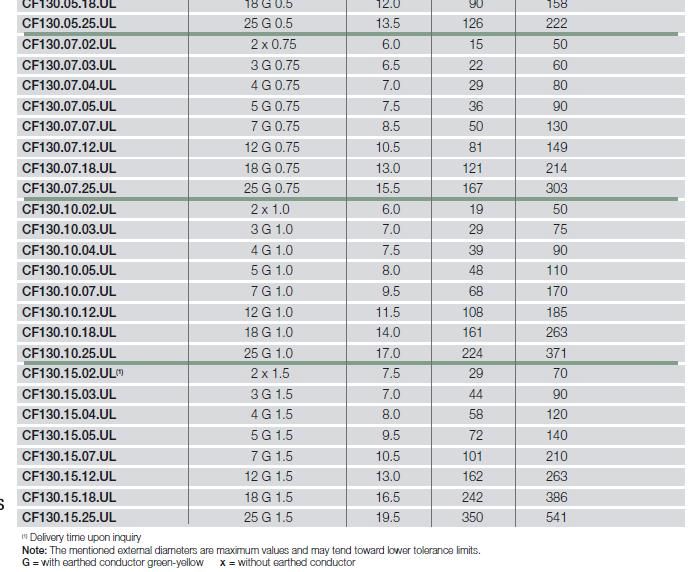

Chainflex® CF130.UL control cable PVC 　 Cable design : 12G0,512G0,7512G112G1,512G2,518G0,518G0,7518G118G1,525G0,525G0,7525G125G1,52x0,342x0,52x0,752x12x1,53G0,53G0,753G13G1,53G2,53G43x0,254G0,54G0,754G14G1,54G2,54G64x0,255G0,55G0,755G15G1,55G65x0,347G0,57G0,757G17G1,57G2,5 可選擇 Protection cable : without protective conductor Outer diameter [mm]: 5.5 Copper index [kg/km]: 10 Weight [kg/km]: 37 Part No. :  CF130.02.04.UL - Note: The mentioned external diameters are maximum values and may tend toward lower tolerance limits. Temperature range moving -5 °C to +70 °C, bending radius 7.5 x d for < 10 m travel Bending radius min. 10 x d for ≥ 10 m travel Temperature range fixed -20 °C to +70 °C, minimum bending radius 5 x d v max. unsupported/gliding 3 m/s, 2 m/s a max. 20 m/s² Length of travel Freely suspended travel distances and for gliding applications up to 50 m, Class 2 Nominal voltage No. of cores < 12: 300/500 V No. of cores < 12 (0.25-0.34): 300/300 V Number of cores ≥ 12: 300/300 V (according to DIN VDE 0245). Test voltage 2000 V (according to DIN VDE 0281-2). flame-retardant According to IEC 332-1, CEI 20-35, FT1 Silicon-free Free from paint-wetting impairment substances (according to PV 3.10.7 – status1992) conductor Fine-wire stranded conductor consisting of bare copper wires (according to EN 60228). Core insulation Mechanically high-value TPE mixture. Core stranding Number of cores < 12: Conductors stranded in short pitch in one position. Number of cores ≥12: Wires combined together in a bunch by a core guaranteeing tensile strength with aligned, stranded in short pitches and stop directions, in especially low-torsion design. Core identification Cores < 0.5 mm²: color code in accordance with DIN 47100. Cores ≥ 0.5 mm²: Cores black with white figures, one wire green-yellow Outer jacket, gel-filled Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10). Color: grey (comparable RAL 7001) UL/CSA Style 10493 and 20200, 300 V, 60°C CEI Following CEI 20-35 CE Following 2006/95/EG Lead-free According to EU Directive (RoHS) 2002/95/EG 　 Typical application areas for medium load requirements without influence of oil preferably indoor applications especially for freely suspended travel distance and for gliging applications up to 50m Wood/stone processing, packaging industry, , handling, adjusting equipment
