    Awg30 to Awg 36 FEP Teflon Silver coated copper clad steel GPS PDA Mini Coaxial Cable 鍍銀銅包鋼極細同軸電纜
    看原圖
    		A3130CS001

    Awg30 to Awg 36 FEP Teflon Silver coated copper clad steel GPS PDA Mini Coaxial Cable 鍍銀銅包鋼極細同軸電纜

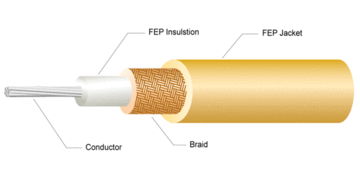

    = Conductor：Silver coated copper clad steel
    = Insulation：FEP Teflon
    = Braid：Silver or Tinned coated copper
    = Jacket：FEP Teflon
    = Jacket Thickness：0.08 ~ 0.15 mm.
    = Temperature Range：-70℃ ~ 200℃
    = Voltage Rating：30V


    = Continuous working temperature range： -70℃ ~ 200℃
    = Resistant to solvents, chemicals, gasoline and radiations.
    = High Dielectric Strength permits extremely
    = Minimal single distortion
    = Tough flexible resistant to crush, abrasion.


    Document Conductor Insulation Braid Jacket Capacitance Impedance ATT(dB/100m)
    AWG No./AWG Diameter Coverage Diameter (pF/ft) (ohms) Frequency(Hz)
    Strands (mm) (%) (mm) 2.4G 5.2G
    A3130CS001 30 7 x 30 0.8 93 1.27 29 50 310 520
    A3132CS001 32 7 x 40 0.66 90 1.13 29 50 480 720
    A3134SP001 34 7 x 42 0.53 97 0.98 29 50 530 780
    A3136SP001 36 7 x 44 0.4 89 0.8 29 50 580 930

    Applications include mobile phone, PC and peripherals, home appliances, PDA, digital camera, GPS, network access device, video/audio equipment, security equipment, medical equipment,lighting equipment, remote control, wrist watch, car phone, hands-free voice-controlled device, broadcast equipment, identification card, shopping mail information etc.
