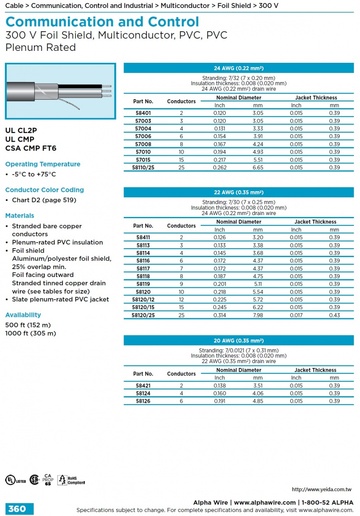

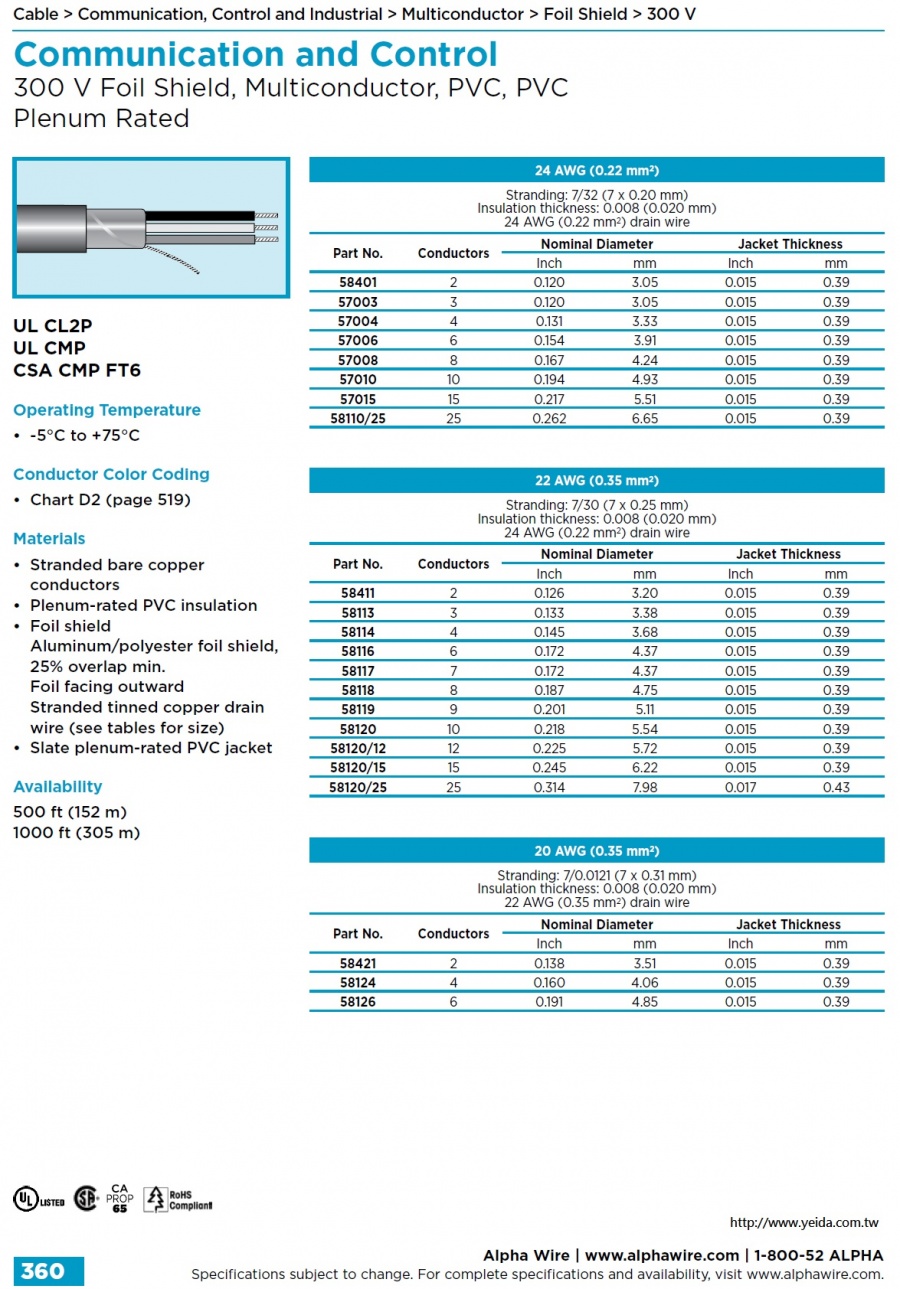

Communication and Control
300 V Foil Shield, Multiconductor, PVC, PVC
Plenum Rated
UL CL2P
UL CMP CSA CMP FT6
Operating Temperature
• -5°C to +75°C Conductor Color Coding
• Chart D2 (page 519) Materials
• Stranded bare copper conductors
• Plenum-rated PVC insulation
• Foil shield Aluminum/polyester foil shield,
25% overlap min. Foil facing outward
Stranded tinned copper drain wire (see tables for size)
• Slate plenum-rated PVC jacket Availability
500 ft (152 m)
1000 ft (305 m)

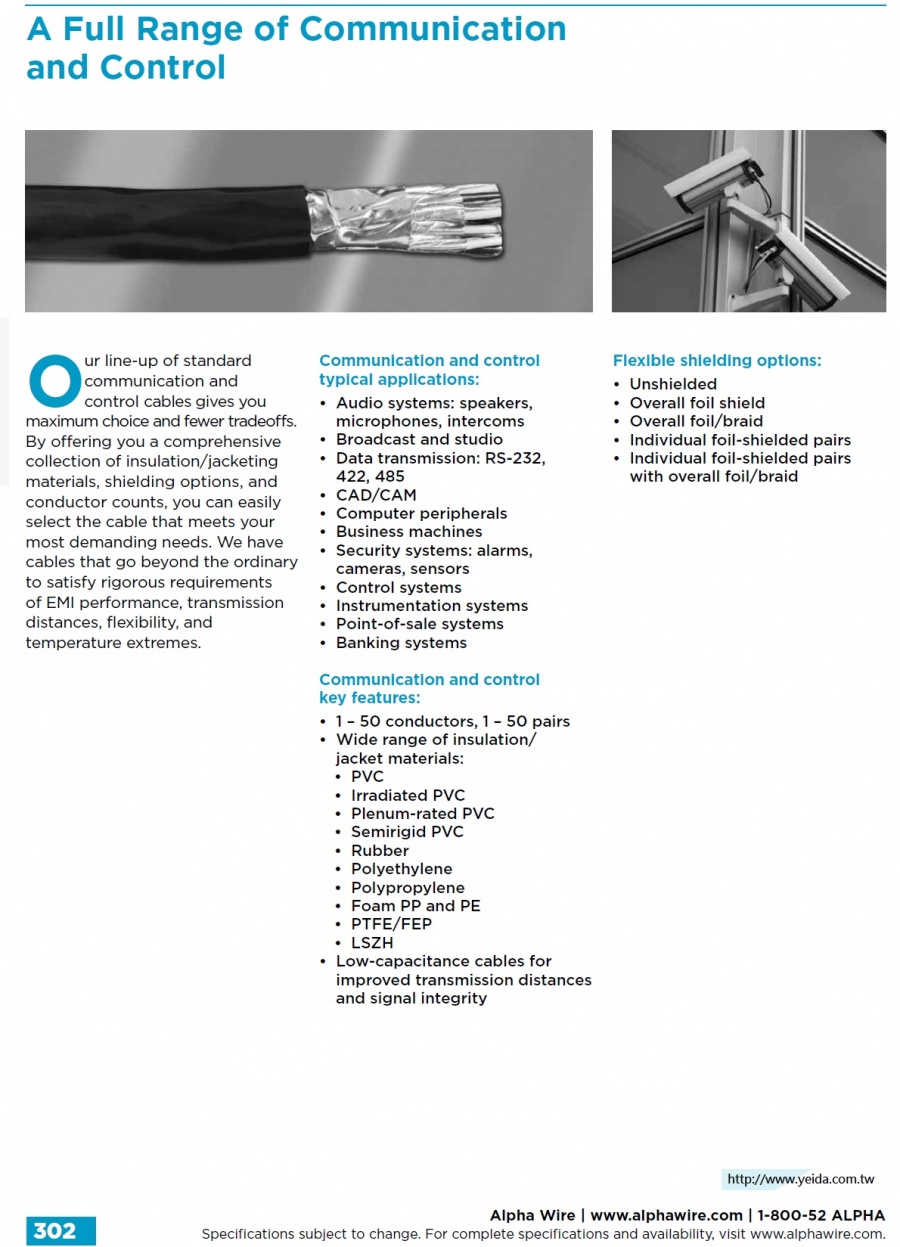

Communication & Control
Get control of your communication and control applications
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Communication and Control Typical applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Flexible shielding options:
Unshielded
Overall foil shield
Overall foil/braid
Individual foil-shielded pairs
Individual foil-shielded pairs with overall foil/braid
Low capacitance cables for improved transmission distances and signal integrity.
