    首頁 > > ALPHA- Foil or Braid Shielding Communication Control Cable Plenum Rated(CSA CMP FT6) 鋁箔 or銅網隔離通信、控制电缆

    ALPHA-Communication and Control (AWG 24) 150 V Foil Shield, Multipair, FEP, PVDF Plenum Rated, Low- and Mid-Capacitance 多對型 FT6 CMP級 (鐵氟龍)鋁箔隔離通信控制電纜線
    看原圖

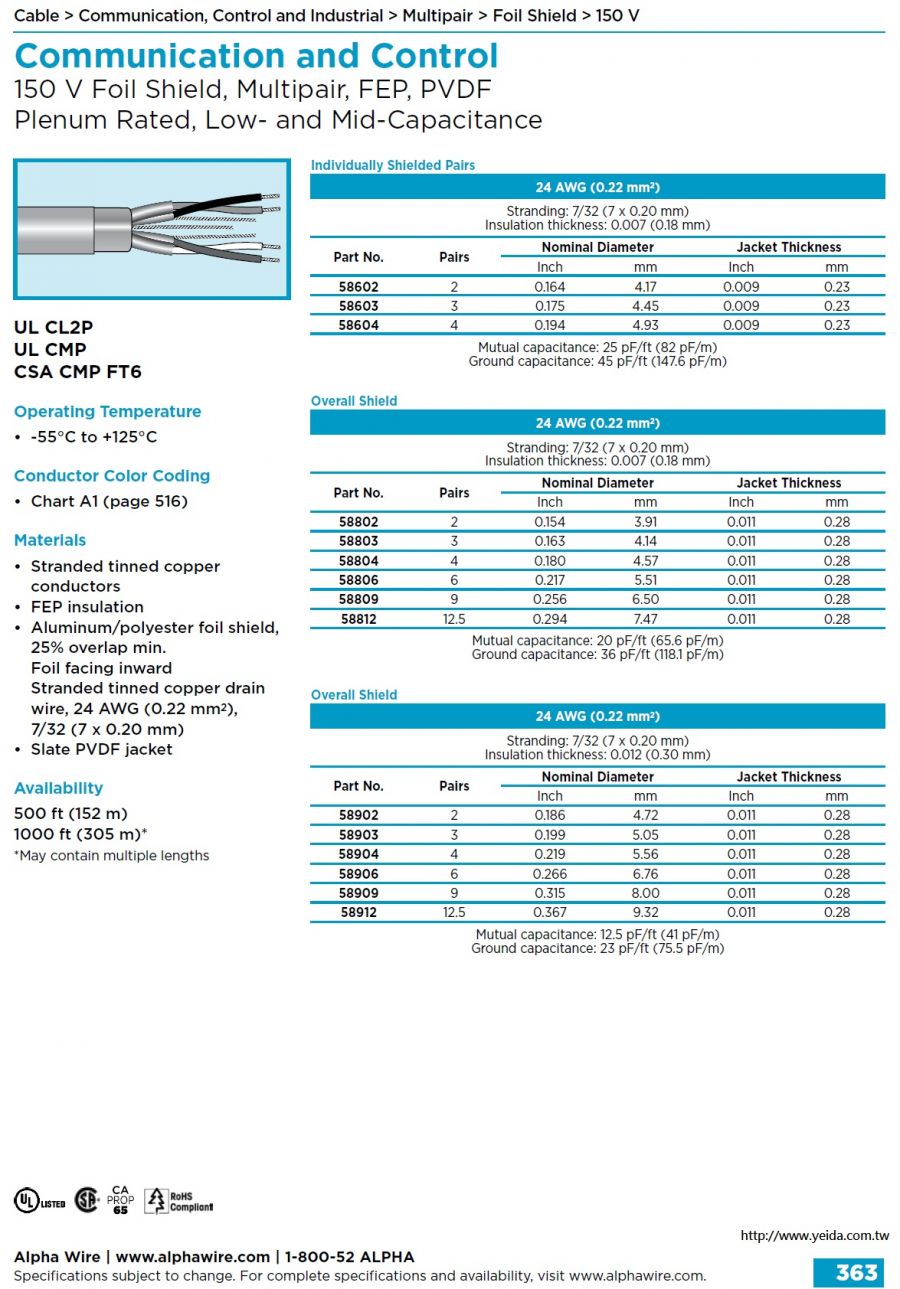

    		ALPHA-58602

    Communication and Control
    150 V Foil Shield, Multipair, FEP, PVDF
    Plenum Rated, Low- and Mid-Capacitance
    UL CL2P
    UL CMP
    CSA CMP FT6


    Operating Temperature
    • -55°C to +125°C
    Conductor Color Coding
    • Chart A1 (page 516)
    Materials
    • Stranded tinned copper conductors
    • FEP insulation
    • Aluminum/polyester foil shield, 25% overlap min.
         Foil facing inward Stranded tinned copper drain
         wire, 24 AWG (0.22 mm2), 7/32 (7 x 0.20 mm)
    • Slate PVDF jacket
    Availability
    500 ft (152 m)
    1000 ft (305 m)*
    *May contain multiple lengths

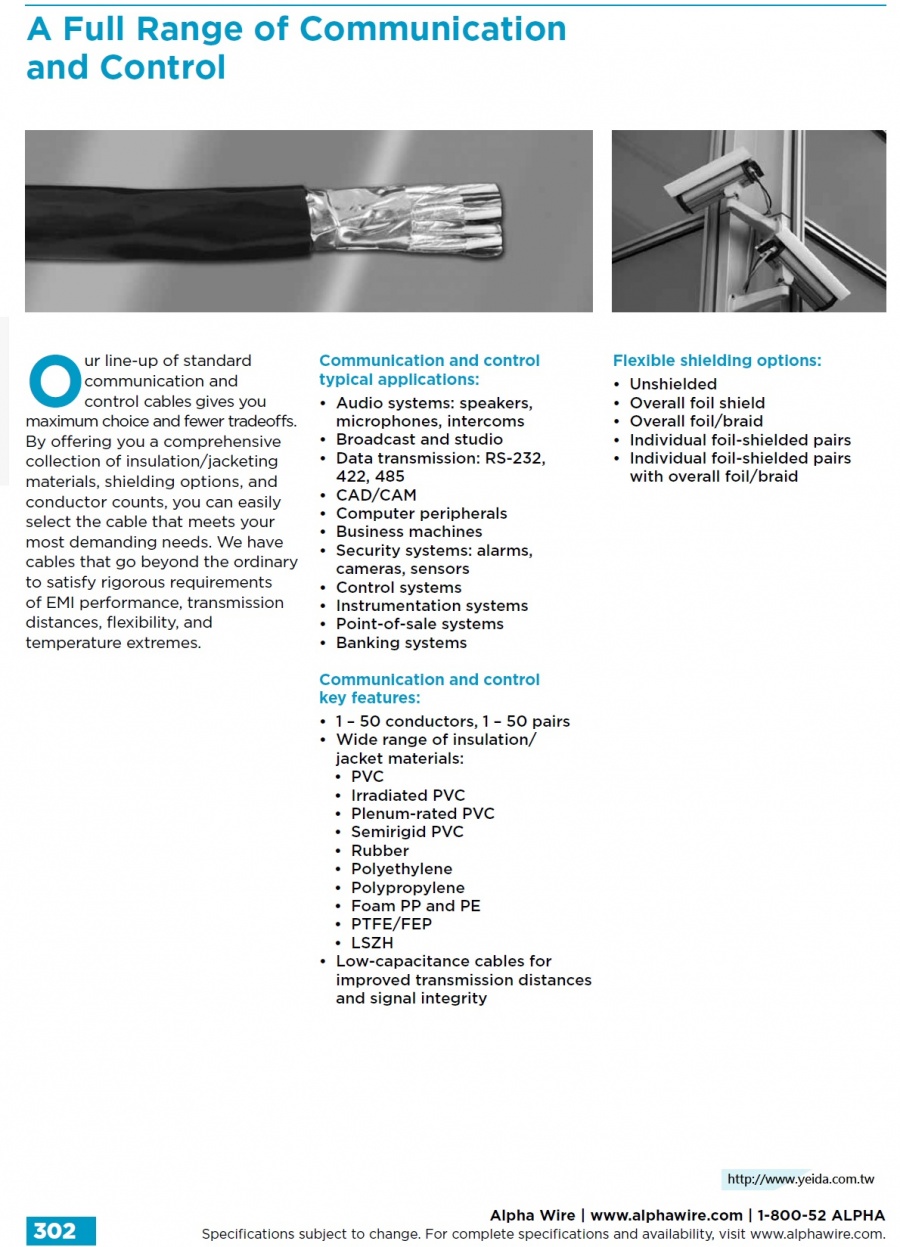

    Communication & Control

    　

    Get control of your communication and control applications

    Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

    Communication and Control Typical applications:

    • Audio systems: speakers, microphones, intercoms
    • Broadcast and studio
    • Data transmission: RS-232, 422, 485
    • CAD/CAM
    • Computer peripherals
    • Business machines
    • Security systems: alarms, cameras, sensors
    • Control systems
    • Instrumentation systems
    • Point-of-sale systems
    • Banking systems

    Flexible shielding options:

    • Unshielded
    • Overall foil shield
    • Overall foil/braid
    • Individual foil-shielded pairs
    • Individual foil-shielded pairs with overall foil/braid

    Low capacitance cables for improved transmission distances and signal integrity.

    通信和控制应用，尽在掌握之中

    我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

    通信和控制电缆的典型应用：

    • 音频系统：扬声器、麦克风、对讲机
    • 广播和播音室
    • 数据传输RS-232, 422, 485
    • 计算机辅助设计/计算机辅助制造
    • 计算机外设
    • 商业机器
    • 安防系统：警报器、摄像头、传感器
    • 控制系统
    • 测试仪表系统
    • 销售网点系统
    • 银行系统

    灵活的屏蔽选项：

    • 非屏蔽电缆
    • 整体铝箔屏蔽
    • 整体铝箔/编织屏蔽
    • 单独铝箔屏蔽线对
    • 单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

    低电容电缆，延长了传输距离，提高了信号完整性。



    Part #　 Type Shielding Voltage AWG # of Elements

    　

    		 Jacket Material

    　

    		 Insulation Material

    　

    		 Jacket Diameter
    57602 Multi-Pair FOIL 300 24 2 PPVC PPVC 0.165 CA Prop 65, CSA - C(UL) TYPE CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL - CMP, UL CL2P
    57603 Multi-Pair FOIL 300 24 3 PPVC PPVC 0.175 CA Prop 65, CSA CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL CL2P, UL CMP
    57604 Multi-Pair FOIL 300 24 4 PPVC PPVC 0.193 CA Prop 65, CSA - C(UL) TYPE CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL - CMP, UL CL2P
    57605 Multi-Pair FOIL 300 24 5 PPVC PPVC 0.212 CA Prop 65, CSA - C(UL) TYPE CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL - CMP, UL CL2P
    57606 Multi-Pair FOIL 300 24 6 PPVC PPVC 0.231 CA Prop 65, CSA - C(UL) TYPE CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL - CMP, UL CL2P
    58602 Multi-Pair UNSHIELDED 150 24 2 PVDF FEP 0.164 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58603 Multi-Pair UNSHIELDED 150 24 3 PVDF FEP 0.175 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58604 Multi-Pair UNSHIELDED 150 24 4 PVDF FEP 0.194 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58802 Multi-Pair FOIL 150 24 2 PVDF FEP 0.154 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58803 Multi-Pair FOIL 150 24 3 PVDF FEP 0.163 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58804 Multi-Pair FOIL 150 24 4 PVDF FEP 0.18 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58806 Multi-Pair FOIL 150 24 6 PVDF FEP 0.217 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58809 Multi-Pair FOIL 150 24 9 PVDF FEP 0.256 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58902 Multi-Pair FOIL 150 24 2 PVDF FEP 0.186 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58903 Multi-Pair FOIL 150 24 3 PVDF FEP 0.199 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58904 Multi-Pair FOIL 150 24 4 PVDF FEP 0.219 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58906 Multi-Pair FOIL 150 24 6 PVDF FEP 0.266 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58909 Multi-Pair FOIL 150 24 9 PVDF FEP 0.315 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
