    首頁 > > ALPHA- Foil or Braid Shielding Communication Control Cable Plenum Rated(CSA CMP FT6) 鋁箔 or銅網隔離通信、控制电缆

    ALPHA-Communication and Control (AWG 22, 18, 16) 150 V Foil Shield, Multipair, FEP, PVDF Plenum Rated, Low- and Mid-Capacitance 多對型 FT6 CMP級 (鐵氟龍)鋁箔隔離通信控制電纜線
    看原圖

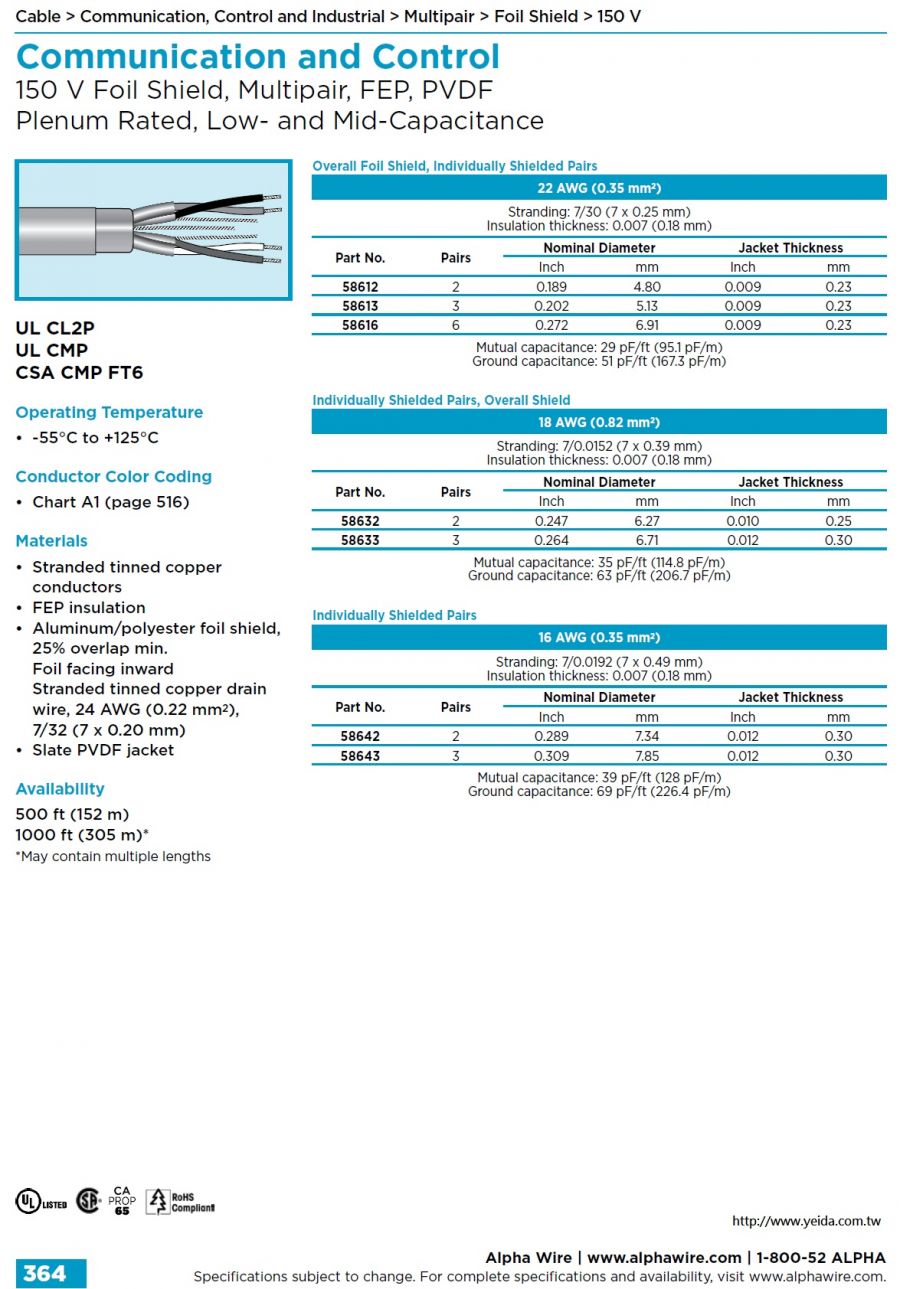

    		ALPHA-58612




    Communication and Control
    150 V Foil Shield, Multipair, FEP, PVDF
    Plenum Rated, Low- and Mid-Capacitance
    UL CL2P
    UL CMP
    CSA CMP FT6


    Operating Temperature
    • -55°C to +125°C
    Conductor Color Coding
    • Chart A1 (page 516)
    Materials
    • Stranded tinned copper conductors
    • FEP insulation
    • Aluminum/polyester foil shield, 25% overlap min.
         Foil facing inward Stranded tinned copper drain
         wire, 24 AWG (0.22 mm2), 7/32 (7 x 0.20 mm)
    • Slate PVDF jacket
    Availability
    500 ft (152 m)
    1000 ft (305 m)*
    *May contain multiple lengths

    ★★★★商品說明★★★★

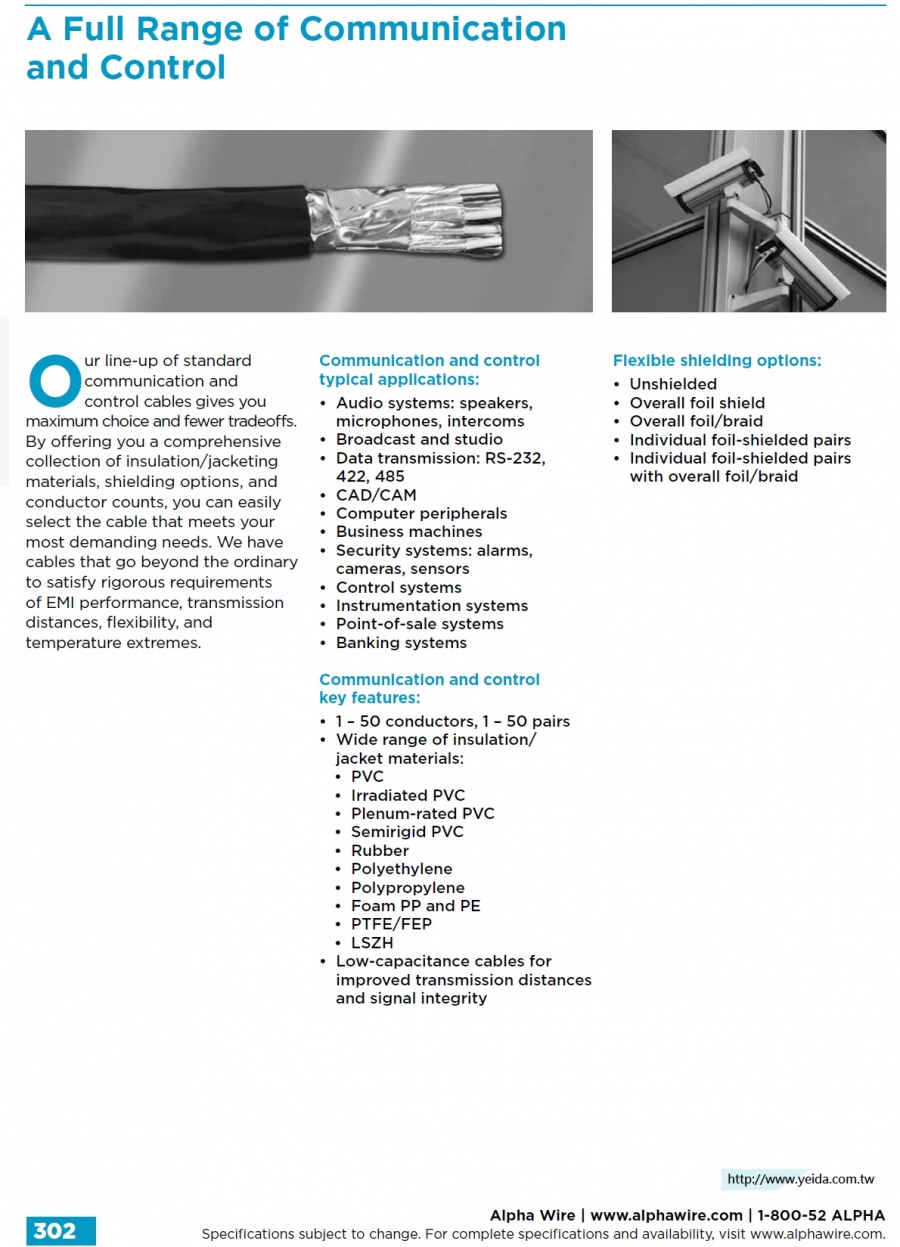

    Communication & Control

    　

    Get control of your communication and control applications

    Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

    Communication and Control Typical applications:

    • Audio systems: speakers, microphones, intercoms
    • Broadcast and studio
    • Data transmission: RS-232, 422, 485
    • CAD/CAM
    • Computer peripherals
    • Business machines
    • Security systems: alarms, cameras, sensors
    • Control systems
    • Instrumentation systems
    • Point-of-sale systems
    • Banking systems

    Flexible shielding options:

    • Unshielded
    • Overall foil shield
    • Overall foil/braid
    • Individual foil-shielded pairs
    • Individual foil-shielded pairs with overall foil/braid

    Low capacitance cables for improved transmission distances and signal integrity.

    通信和控制应用，尽在掌握之中

    我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

    通信和控制电缆的典型应用：

    • 音频系统：扬声器、麦克风、对讲机
    • 广播和播音室
    • 数据传输RS-232, 422, 485
    • 计算机辅助设计/计算机辅助制造
    • 计算机外设
    • 商业机器
    • 安防系统：警报器、摄像头、传感器
    • 控制系统
    • 测试仪表系统
    • 销售网点系统
    • 银行系统

    灵活的屏蔽选项：

    • 非屏蔽电缆
    • 整体铝箔屏蔽
    • 整体铝箔/编织屏蔽
    • 单独铝箔屏蔽线对
    • 单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

    低电容电缆，延长了传输距离，提高了信号完整性。


    Part #　 Type Shielding Voltage AWG # of Elements

    　

    		 Jacket Material

    　

    		 Insulation Material

    　

    		 Jacket Diameter
    57628 Multi-Pair FOIL 300 22 8 PPVC PPVC 0.285 CA Prop 65, CSA CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL CL2P, UL CMP
    58412 Multi-Pair FOIL 300 22 2 PPVC PPVC 0.185 CA Prop 65, CSA CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL CL2P, UL CMP
    58413 Multi-Pair FOIL 300 22 3 PPVC PPVC 0.197 CA Prop 65, CSA CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL CL2P, UL CMP
    58414 Multi-Pair FOIL 300 22 4 PPVC PPVC 0.217 CA Prop 65, CSA - C(UL) TYPE CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL - CMP, UL CL2P
    58415 Multi-Pair FOIL 300 22 5 PPVC PPVC 0.239 CA Prop 65, CSA - C(UL) TYPE CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL - CMP, UL CL2P
    58416 Multi-Pair FOIL 300 22 6 PPVC PPVC 0.261 CA Prop 65, CSA CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL CL2P, UL CMP
    58419 Multi-Pair FOIL 300 22 9 PPVC PPVC 0.311 CA Prop 65, CSA - C(UL) TYPE CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL - CMP, UL CL2P
    58420/19 Multi-Pair FOIL 300 22 19 PPVC PPVC 0.418 CA Prop 65, CSA CMP, CSA FT6, REACH Regulation (EC 1907/2006), UL CL2P, UL CMP
    58612 Multi-Pair FOIL 150 22 2 PVDF FEP 0.189 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58613 Multi-Pair FOIL 150 22 3 PVDF FEP 0.202 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58616 Multi-Pair FOIL 150 22 6 PVDF FEP 0.272 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58632 Multi-Pair FOIL 150 18 2 PVDF FEP 0.247 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58633 Multi-Pair UNSHIELDED 150 18 3 PVDF FEP 0.264 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58642 Multi-Pair UNSHIELDED 150 16 2 PVDF FEP 0.289 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
    58643 Multi-Pair Foil Shield 150 16 3 PVDF FEP 0.309 CA Prop 65, CSA CMP, CSA FT6, UL CL2P
