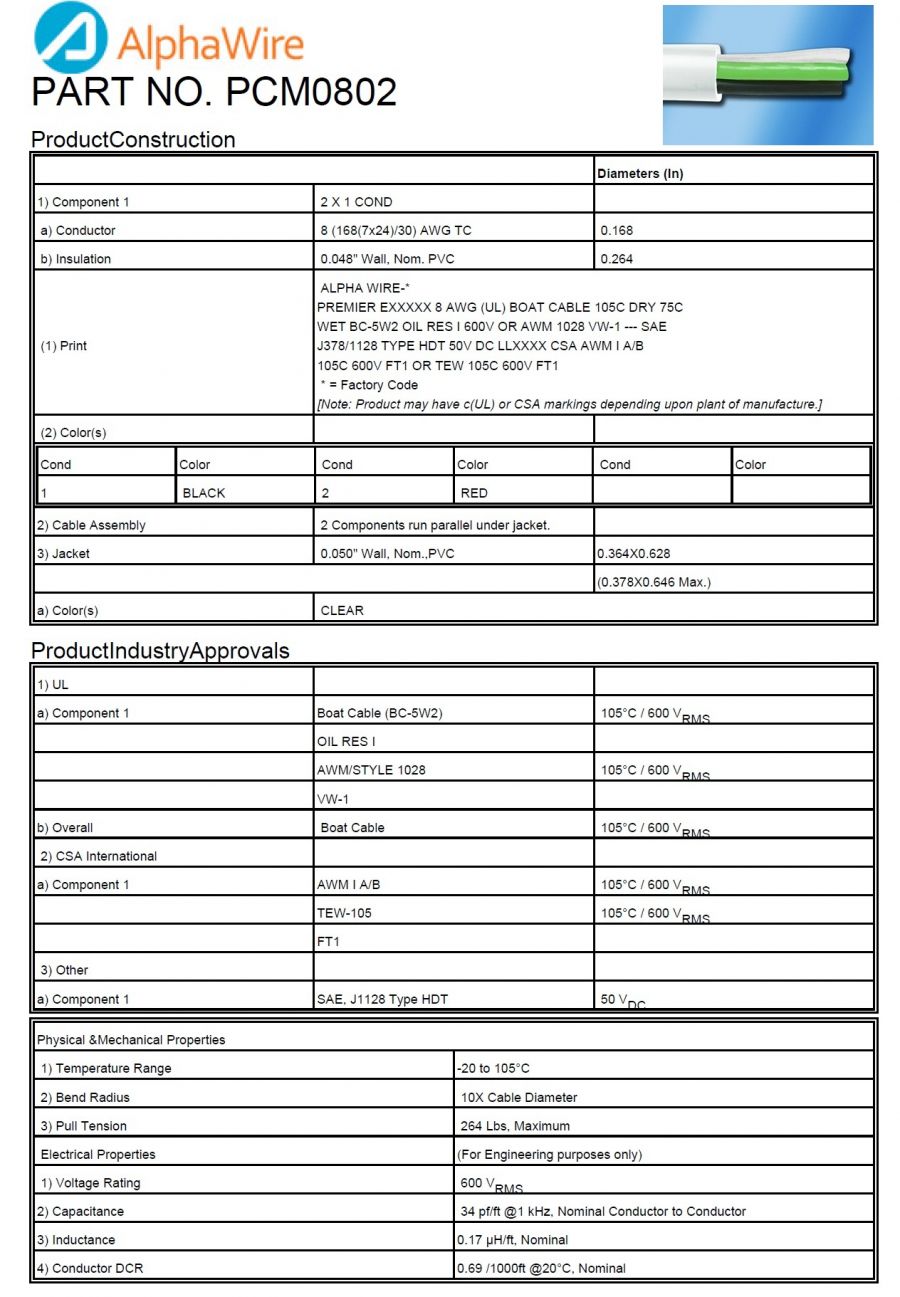

ProductConstruction

		Diameters (In)
1) Component 1	2 X 1 COND
a) Conductor	8 (168(7x24)/30) AWG TC	0.168
b) Insulation	0.048" Wall, Nom. PVC	0.264
(1) Print	ALPHA WIRE-*  PREMIER EXXXXX 8 AWG (UL) BOAT CABLE 105C DRY 75C WET BC-5W2 OIL RES I 600V OR AWM 1028 VW-1 --- SAE J378/1128 TYPE HDT 50V DC LLXXXX CSA AWM I A/B 105C 600V FT1 OR TEW 105C 600V FT1 * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
(2) Color(s)
Cond Color Cond Color Cond Color 1 BLACK 2 RED
2) Cable Assembly	2 Components run parallel under jacket.
3) Jacket	0.050" Wall, Nom.,PVC	0.364X0.628
		(0.378X0.646 Max.)
a) Color(s)	CLEAR

ProductIndustryApprovals

1) UL
a) Component 1	Boat Cable (BC-5W2)	105°C / 600 VRMS
	OIL RES I
	AWM/STYLE 1028	105°C / 600 VRMS
	VW-1
b) Overall	Boat Cable	105°C / 600 VRMS
2) CSA International
a) Component 1	AWM I A/B	105°C / 600 VRMS
	TEW-105	105°C / 600 VRMS
	FT1
3) Other
a) Component 1	SAE, J1128 Type HDT	50 VDC

ProductEnvironmental

ProductProperties

Physical & Mechanical Properties
1) Temperature Range	-20 to 105°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	264 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	600 VRMS
2) Capacitance	34 pf/ft @1 kHz, Nominal Conductor to Conductor
3) Inductance	0.17 µH/ft, Nominal
4) Conductor DCR	0.69 Ω/1000ft @20°C, Nominal

ProductOther

Packaging	Flange x Traverse x Barrel (inches)
a) 100 FT	12 x 10 x 5 Continuous length
b) Bulk(Made-to-order)
	[Spool dimensions may vary slightly]

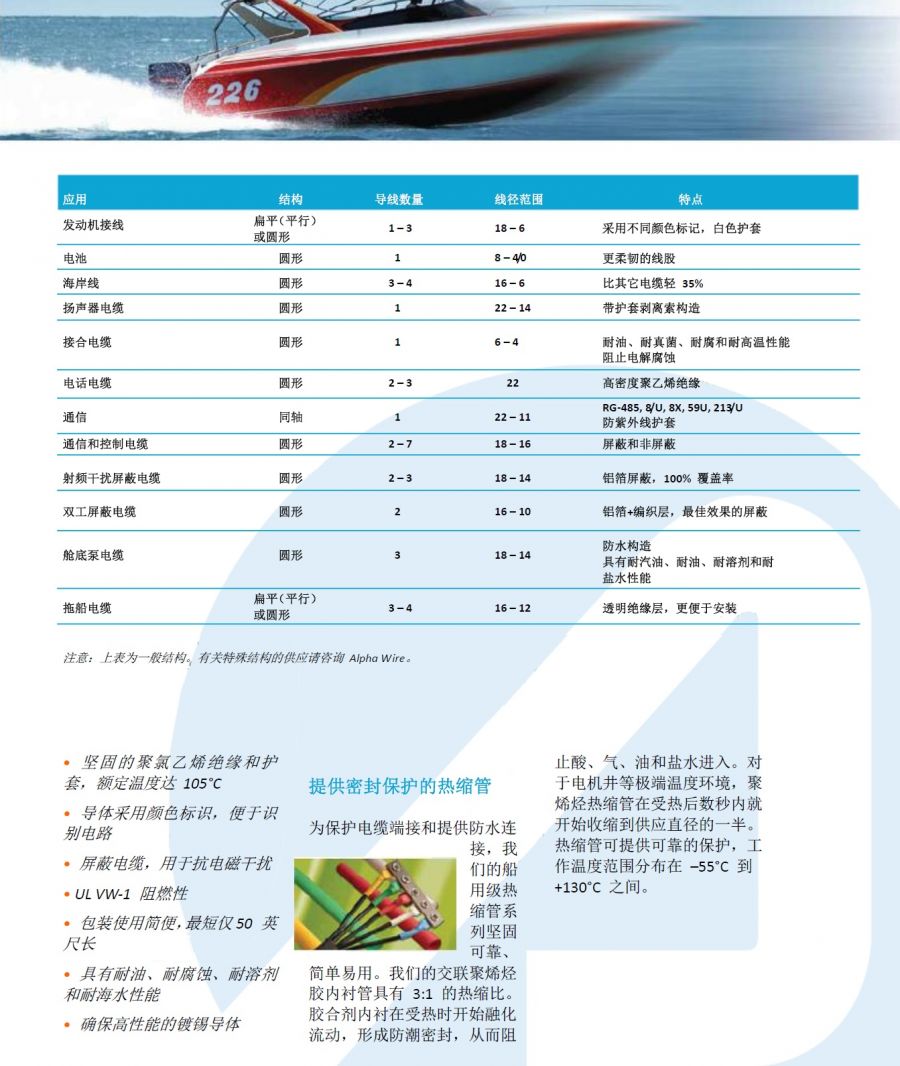

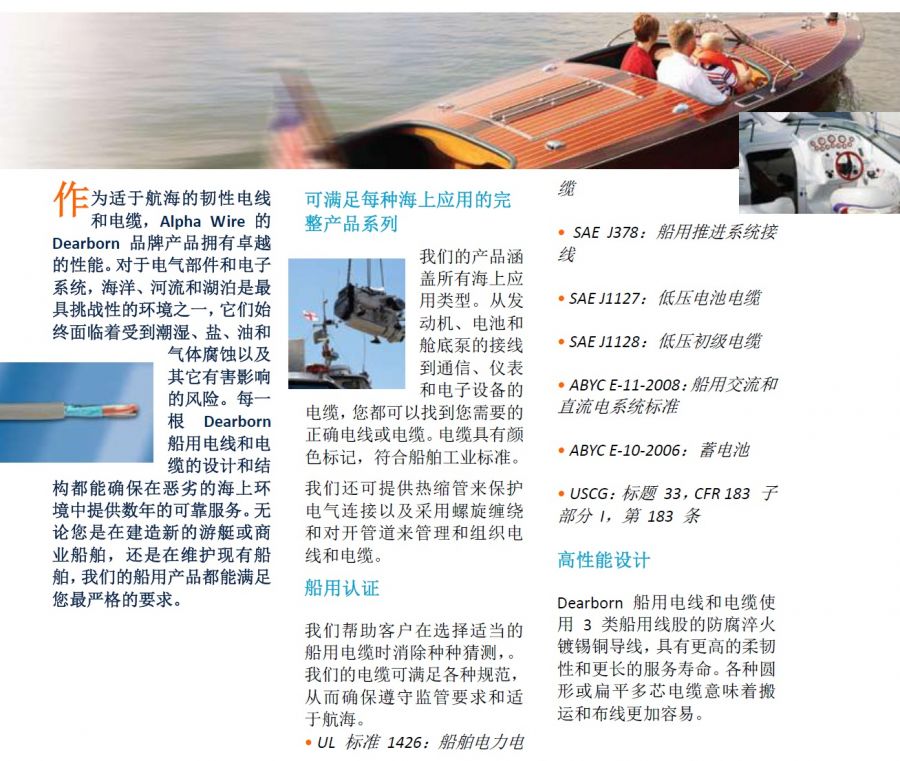

Dearborn 船用电缆使用带第 3 类船用绞线的防腐淬火镀锡铜芯线，具有更高的柔韧性和更长的服务寿命。各种圆形或扁平多芯电缆能使加工和布线更加容易。

多芯电缆的主要特点：

• 坚韧的聚氯乙烯绝缘和护套，额定温度达 105°C
• 芯线采用颜色标识，便于识别
• 屏蔽电缆用于电磁干扰防护
• UL VW-1 阻燃性
• 包装便利，最短仅50 英尺长
• 具有耐油、耐腐蚀、耐溶剂和耐海水性能
• 镀锡芯线，性能卓越
