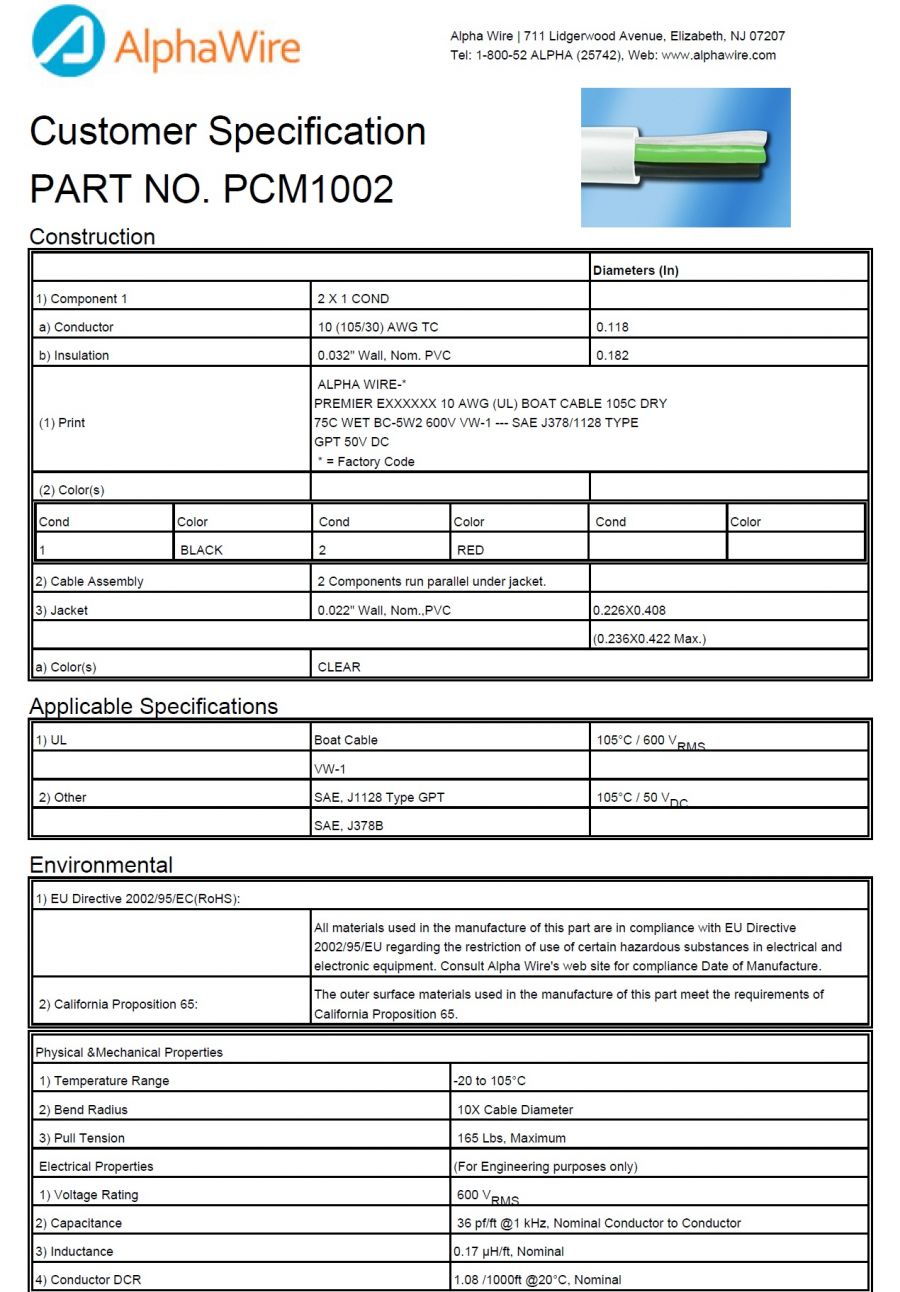

Construction

		Diameters (In)
1) Component 1	2 X 1 COND
a) Conductor	10 (105/30) AWG TC	0.118
b) Insulation	0.032" Wall, Nom. PVC	0.182
(1) Print	ALPHA WIRE-*  PREMIER EXXXXXX 10 AWG (UL) BOAT CABLE 105C DRY 75C WET BC-5W2 600V VW-1 --- SAE J378/1128 TYPE GPT 50V DC * = Factory Code
(2) Color(s)
Cond Color Cond Color Cond Color 1 BLACK 2 RED
2) Cable Assembly	2 Components run parallel under jacket.
3) Jacket	0.022" Wall, Nom.,PVC	0.226X0.408
		(0.236X0.422 Max.)
a) Color(s)	CLEAR

Applicable Specifications

1) UL	Boat Cable	105°C / 600 VRMS
	VW-1
2) Other	SAE, J1128 Type GPT	105°C / 50 VDC
	SAE, J378B

Environmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

Properties

Physical & Mechanical Properties
1) Temperature Range	-20 to 105°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	165 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	600 VRMS
2) Capacitance	36 pf/ft @1 kHz, Nominal Conductor to Conductor
3) Inductance	0.17 µH/ft, Nominal
4) Conductor DCR	1.08 Ω/1000ft @20°C, Nominal

Other

Packaging

Flange x Traverse x Barrel (inches)

Dearborn Marine cable uses corrosion-resistant annealed tinned copper conductors with Type 3 marine stranding for extra flexibility and service life. A choice of round or flat multiconductor cables means easier handling and routing.

Multiconductor Key features:

• Rugged PVC insulation and jackets, rated to 105°C
• Easy circuit identification with color-coded conductors
• Shielded cable available for EMI protection
• UL VW-1 flame retardant
• Convenient, easy to use packaging in lengths as low as 50 feet
• Resistant to oil, chemicals, solvents, and sea water
• Premium high-performance with tinned conductors
