    ALPHA- 600 V Unshielded, Multiconductor, (Awg20 to 6) Premier Duplex Cable UL BC 5W2 雙芯耐油、耐腐蝕、耐溶濟和耐海水性能船舶控制电缆
    看原圖
    		ALPHA-PDM2002



    商品編號: ALPHA-PDM2002

    ALPHA- 600 V Unshielded, Multiconductor, (Awg20 to 6) Premier Duplex Cable UL BC 5W2 雙芯耐油、耐腐蝕、耐溶濟和耐海水性能船舶控制电缆

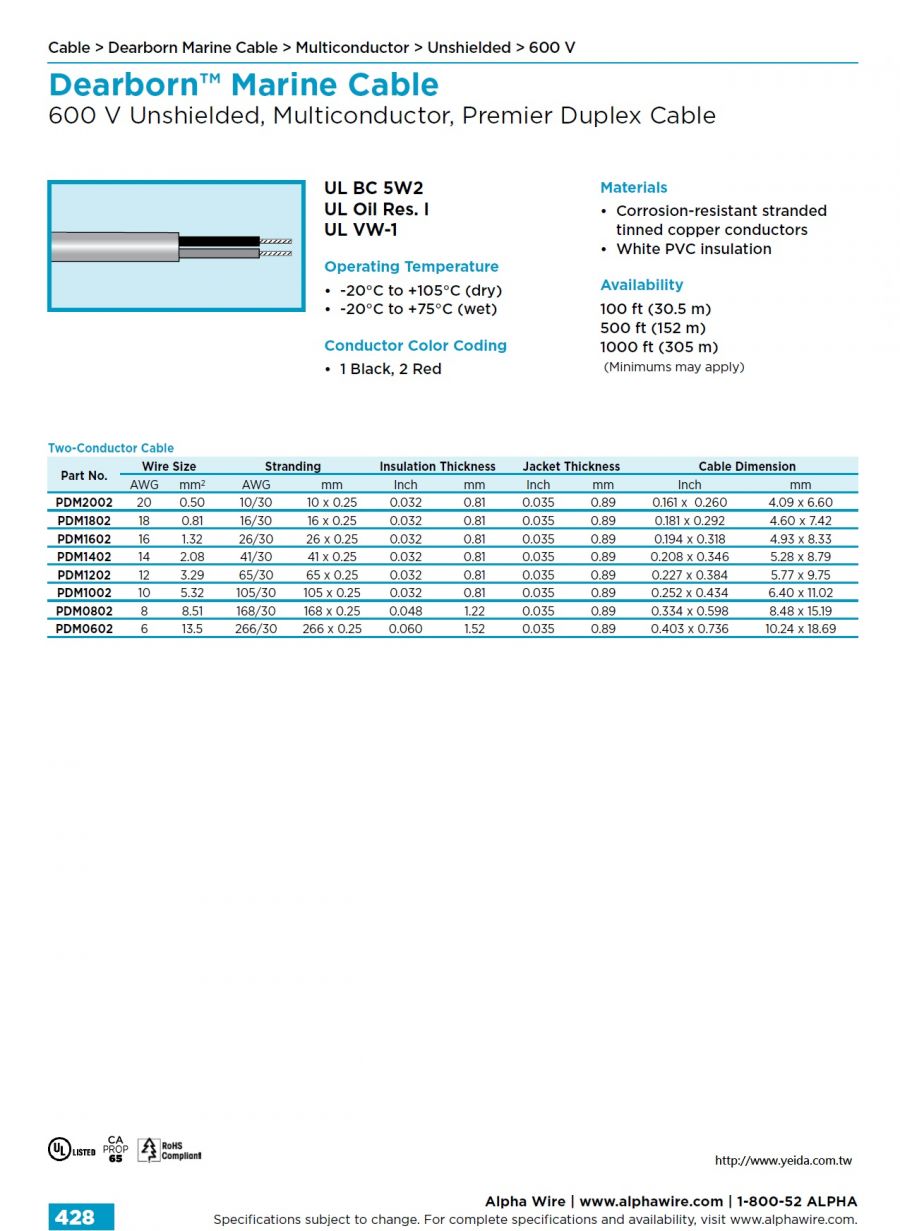

    Dearborn™ Marine Cable
    600 V Unshielded, Multiconductor, Premier Duplex Cable
    UL BC 5W2
    UL Oil Res. I
    UL VW-1


    Operating Temperature
    • -20°C to +105°C (dry)
    • -20°C to +75°C (wet)
    Conductor Color Coding
    • 1 Black, 2 Red
        Two-Conductor Cable
    Materials
    • Corrosion-resistant stranded tinned copper conductors
    • White PVC insulation
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    (Minimums may apply)



    ★★★★商品說明★★★★


    适合海上应用的高品质电缆

    满足各种海上应用的全套产品

    Alpha Wire 的产品涵盖所有海上应用。从发动机、蓄电池和舱底泵的接线到通信、仪表和电子设备的电缆，您都可以找到所需的电线或电缆。电缆全部具有颜色标记，符合船舶工业标准。


    从舱底到海岸的应用：

    • 发动机接线
    • 电池线
    • 扬声器电缆
    • 接合电缆
    • 电话电缆
    • 同轴通信电缆
    • 通信和控制电缆
    • 抗射频干扰电缆
    • 双工屏蔽电缆
    • 舱底泵电缆
    • 防水构造
    • 拖船电缆

    Marine ready 船用认证

    我们的电缆满足各种规范，确保遵守监管要求并适于航海。

    • UL 1426：船舶电力电缆
    • SAE J378：船用推进系统电线
    • SAE J1127：低压电池电缆
    • SAE J1128：低压基本电缆
    • ABYC E-11-2008：船用交流和直流电系统标准
    • ABYC E-10-2006：蓄电池
    • USCG：33，CFR 183 子部分 I，第 183 条

      　

    类型Dearborn™ 船用线
    • 船用线

      高级船用线，满足所有类型的船舶应用，包括发动机、蓄电池和舱底泵的接线。

    • 船用电缆

      全系列多芯电缆，专为在海上环境中使用而设计。应用广泛，例如：通信、仪表和电子设备。

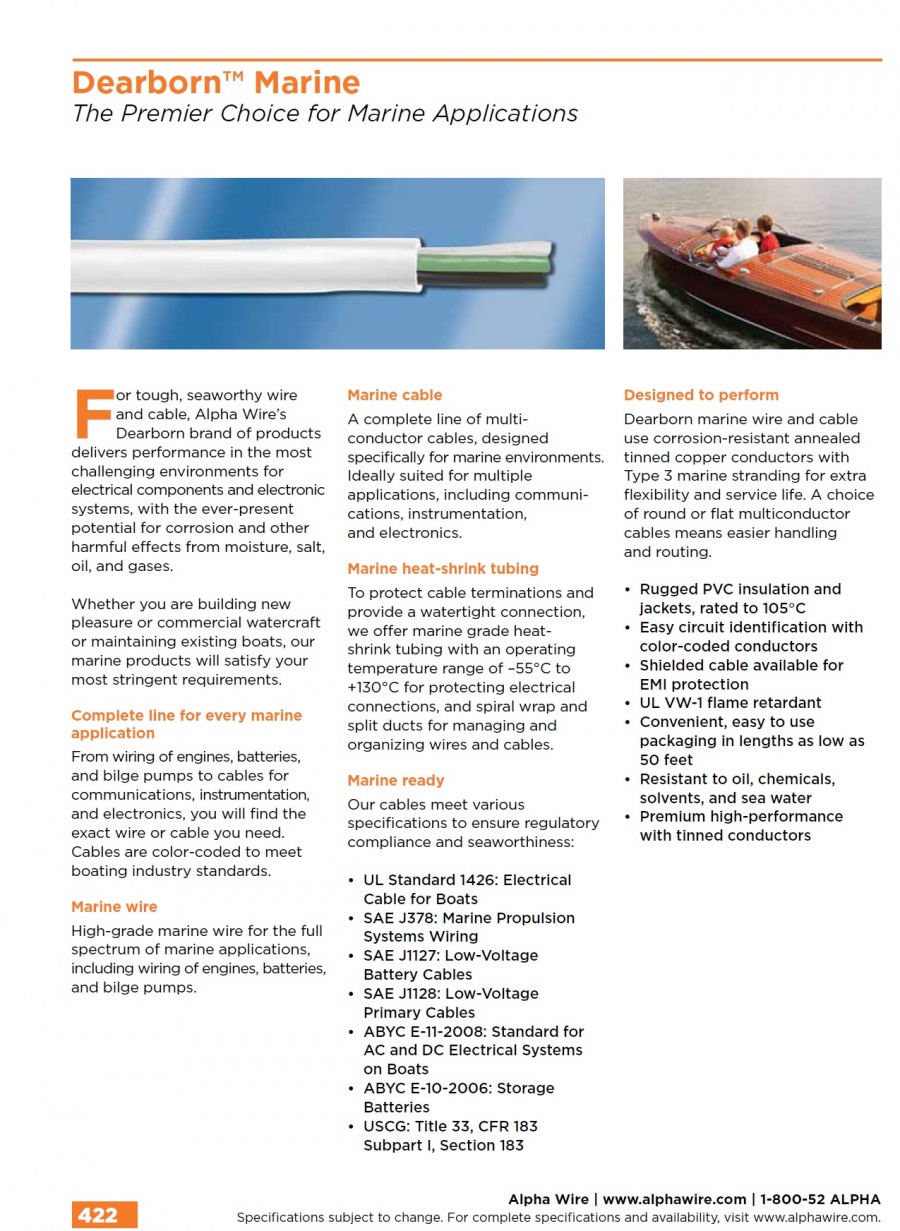

    Marine Cable

    　

    Dearborn Marine cable uses corrosion-resistant annealed tinned copper conductors with Type 3 marine stranding for extra flexibility and service life. A choice of round or flat multiconductor cables means easier handling and routing.

    Multiconductor Key features:

    • Rugged PVC insulation and jackets, rated to 105°C
    • Easy circuit identification with color-coded conductors
    • Shielded cable available for EMI protection
    • UL VW-1 flame retardant
    • Convenient, easy to use packaging in lengths as low as 50 feet
    • Resistant to oil, chemicals, solvents, and sea water
    • Premium high-performance with tinned conductors
    Part #

    　

    		 Type

    　

    		 Shielding

    　

    		 Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    PCM0802 Multi-Conductor UNSHIELDED 600 8 2 .244 x .14 CSA - AWM I A/B, CSA - FT1, CSA - TEW-105, SAE J1128 Type HDT, UL - Boat Cable (BC-5W2), UL AWM 1028, UL OIL RES I, UL VW-1
    PCM1002 Multi-Conductor UNSHIELDED 600 10 2 .4 x .208 CA Prop 65, SAE J1128 Type GPT, SAE J378B, UL - Boat Cable (BC-5W2), UL - VW-1
    PCM1202 Multi-Conductor UNSHIELDED 600 12 2 .344 x .18 UL - Boat Cable (BC-5W2)
    PCM1402 Multi-Conductor UNSHIELDED 600 14 2 .306 x .161 UL - Boat Cable (BC-5W2)
    PCM1602 Multi-Conductor UNSHIELDED 600 16 2 .272 x .144 UL - Boat Cable (BC-5W2)
    PCM1802 Multi-Conductor UNSHIELDED 600 18 2 .244 x .140 UL - Boat Cable (BC-5W2)
    PDM0602 Multi-Conductor UNSHIELDED 600 6 2 .750 x .420 CA Prop 65, UL OIL RES I, UL VW-1
    PDM0802 Multi-Conductor UNSHIELDED 600 8 2 .608 x .336 CA Prop 65, UL OIL RES I, UL VW-1
    PDM1002 Multi-Conductor UNSHIELDED 600 10 2 .450 x .250 CA Prop 65, UL OIL RES I, UL VW-1
    PDM1202 Multi-Conductor UNSHIELDED 600 12 2 .392 x .230 CA Prop 65, UL OIL RES I, UL VW-1
    PDM1402 Multi-Conductor UNSHIELDED 600 14 2 .356 x .211 CA Prop 65, UL OIL RES I, UL VW-1
    PDM1602 Multi-Conductor UNSHIELDED 600 16 2 .322 x .194 CA Prop 65, UL OIL RES I, UL VW-1
    PDM1802 Multi-Conductor UNSHIELDED 600 18 2 .280 x .172 CA Prop 65, UL OIL RES I, UL VW-1
    PDM2002 Multi-Conductor UNSHIELDED 600 20 2 .260 x .161 UL VW-1
    PDS0602 Multi-Conductor UNSHIELDED 600 6 2 .750 x .420 UL VW-1
    PDS0802 Multi-Conductor UNSHIELDED 600 8 2 .608 x .336 UL VW-1
    PDS1002 Multi-Conductor UNSHIELDED 600 10 2 .450 x .250 UL VW-1
    PDS1202 Multi-Conductor UNSHIELDED 600 12 2 .392 x .230 UL VW-1
    PDS1402 Multi-Conductor UNSHIELDED 600 14 2 .356 x .211 UL VW-1
    PDS1602 Multi-Conductor UNSHIELDED 600 16 2 .322 x .194 UL VW-1
