ALPHA- 600 V Unshielded, Multiconductor, (Awg18 to 6) Premier Duplex Safety Cable UL BC 5W2 雙芯耐油、耐腐蝕、耐溶濟和耐海水性能船舶控制电缆

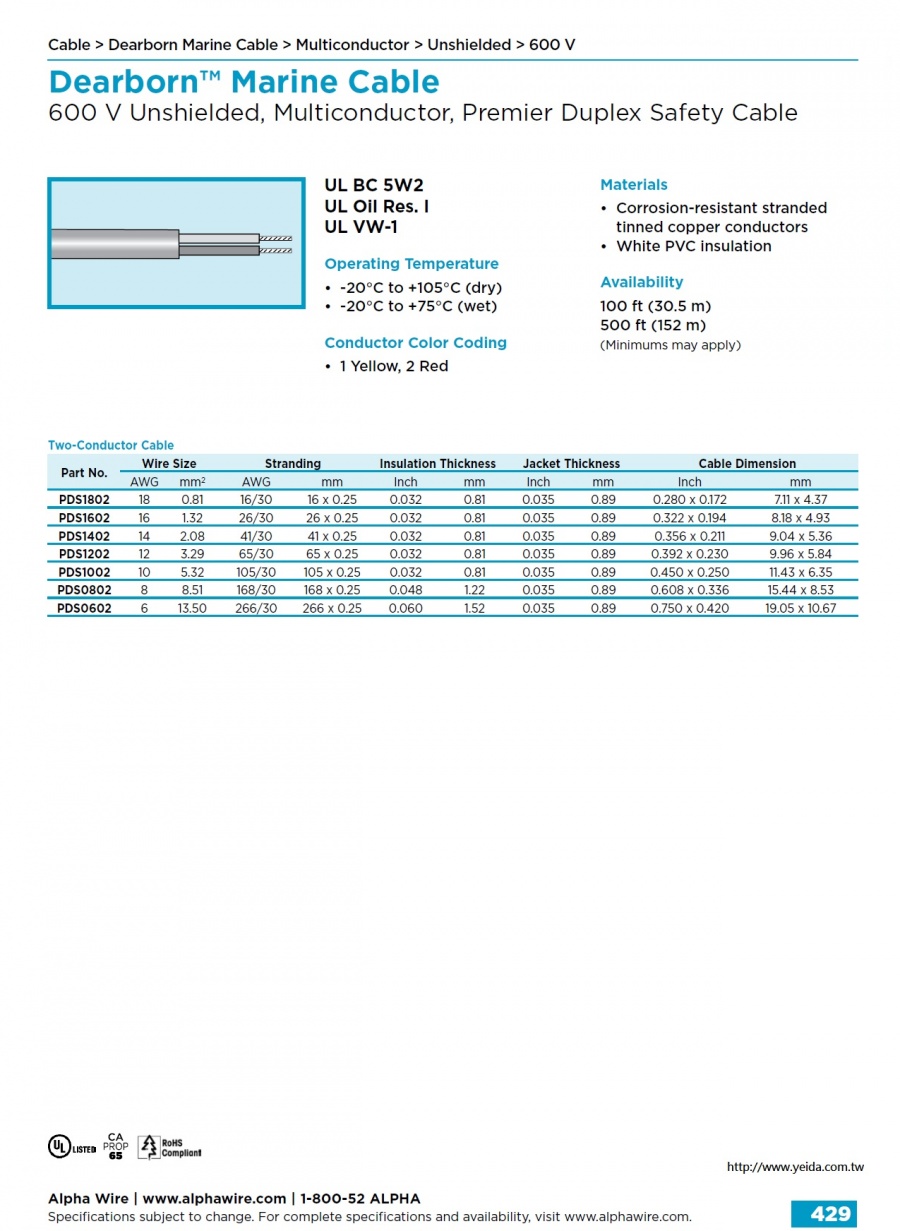

Dearborn™ Marine Cable
600 V Unshielded, Multiconductor, Premier Duplex Safety Cable
UL BC 5W2
UL Oil Res. I
UL VW-1
Operating Temperature
• -20°C to +105°C (dry)
• -20°C to +75°C (wet) Conductor Color Coding
• 1 Yellow, 2 Red
Two-Conductor Cable Materials
• Corrosion-resistant stranded tinned copper conductors
• White PVC insulation Availability
100 ft (30.5 m)
500 ft (152 m)
(Minimums may apply)

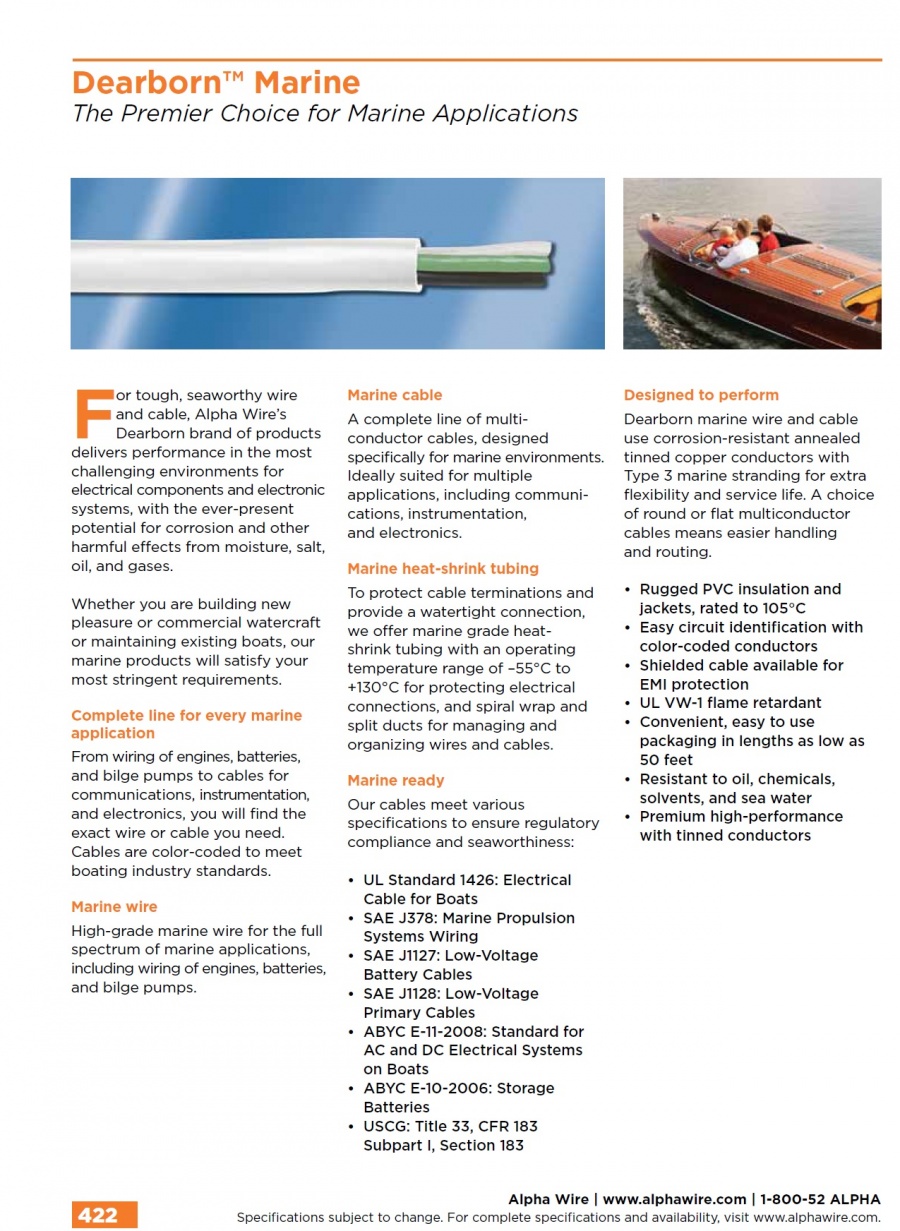

Dearborn Marine cable uses corrosion-resistant annealed tinned copper conductors with Type 3 marine stranding for extra flexibility and service life. A choice of round or flat multiconductor cables means easier handling and routing.
Multiconductor Key features:
Rugged PVC insulation and jackets, rated to 105°C
Easy circuit identification with color-coded conductors
Shielded cable available for EMI protection
UL VW-1 flame retardant
Convenient, easy to use packaging in lengths as low as 50 feet
Resistant to oil, chemicals, solvents, and sea water
