商品編號: ALPHA-PFM1603
ALPHA- 600 V Unshielded, Multiconductor, (Awg16 to 6) Premier Triplex Cable UL BC 5W2 3芯耐油、耐腐蝕、耐溶濟和耐海水性能船舶控制电缆

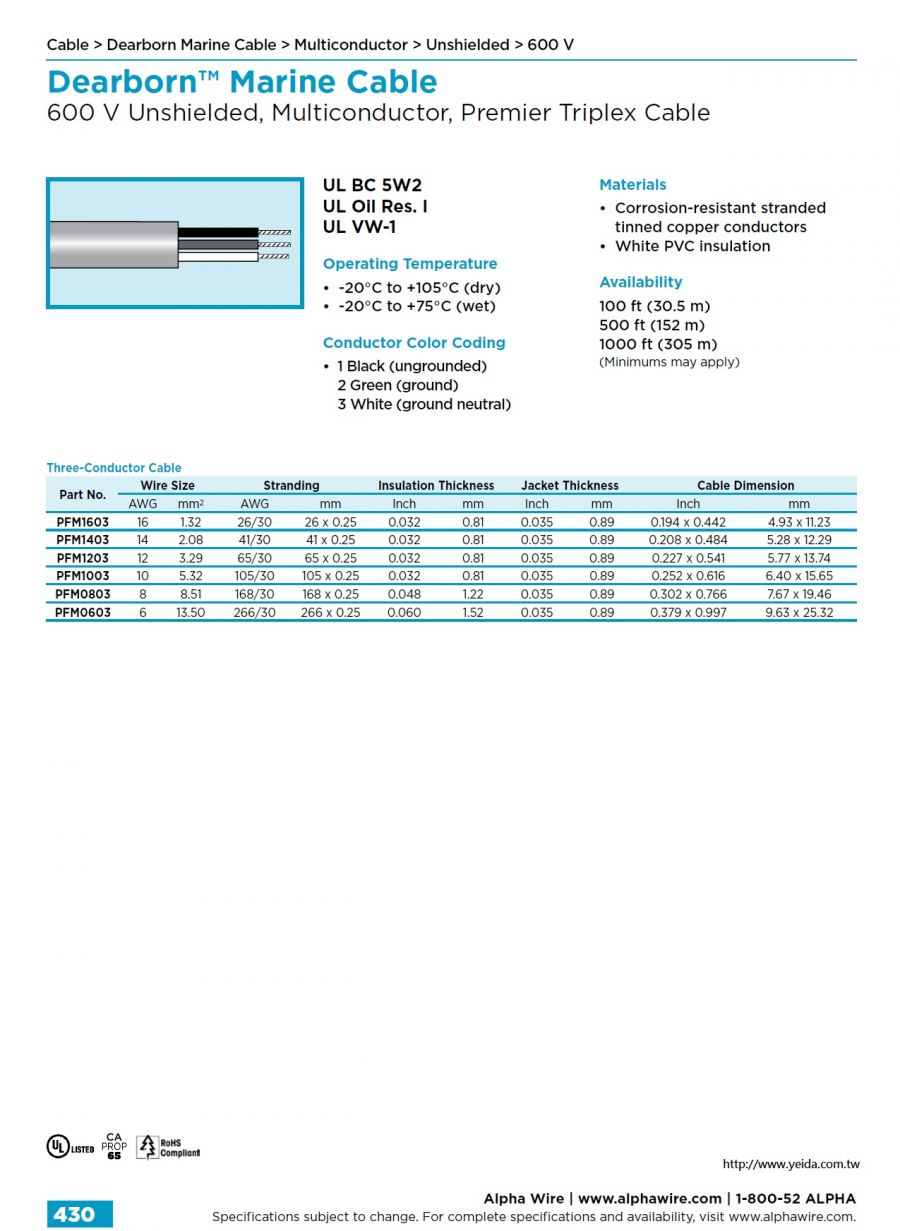

Dearborn™ Marine Cable
600 V Unshielded, Multiconductor, Premier Triplex Cable
UL BC 5W2
UL Oil Res. I
UL VW-1
Operating Temperature
• -20°C to +105°C (dry)
• -20°C to +75°C (wet)
Conductor Color Coding
• 1 Black (ungrounded)
2 Green (ground)
3 White (ground neutral)
Three-Conductor Cable
Materials
• Corrosion-resistant stranded tinned copper conductors
• White PVC insulation
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
(Minimums may apply)
|
|

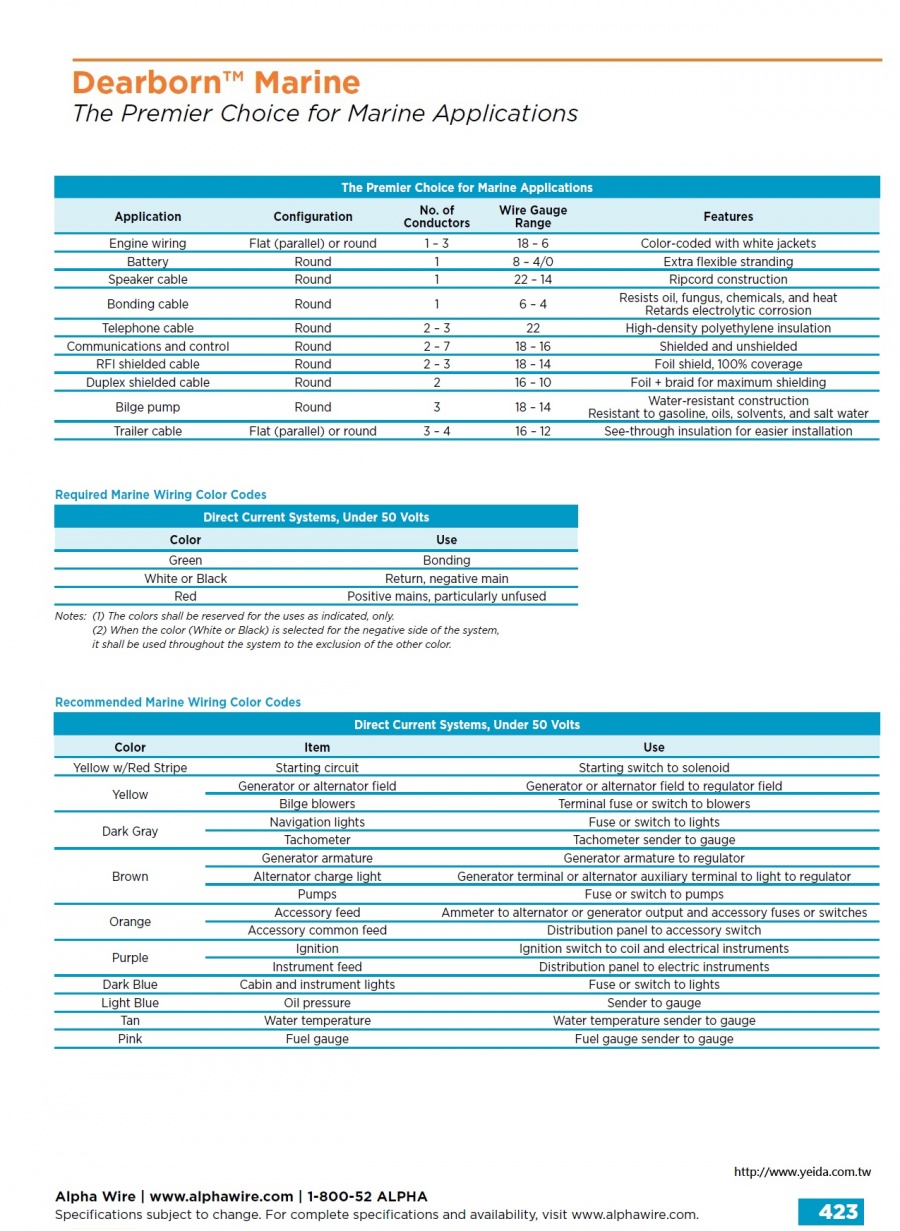

适合海上应用的高品质电缆
满足各种海上应用的全套产品
Alpha Wire 的产品涵盖所有海上应用。从发动机、蓄电池和舱底泵的接线到通信、仪表和电子设备的电缆,您都可以找到所需的电线或电缆。电缆全部具有颜色标记,符合船舶工业标准。
从舱底到海岸的应用:
-
发动机接线
-
电池线
-
扬声器电缆
-
接合电缆
-
电话电缆
-
同轴通信电缆
-
通信和控制电缆
-
抗射频干扰电缆
-
双工屏蔽电缆
-
舱底泵电缆
-
防水构造
-
拖船电缆
Marine ready 船用认证
我们的电缆满足各种规范,确保遵守监管要求并适于航海。

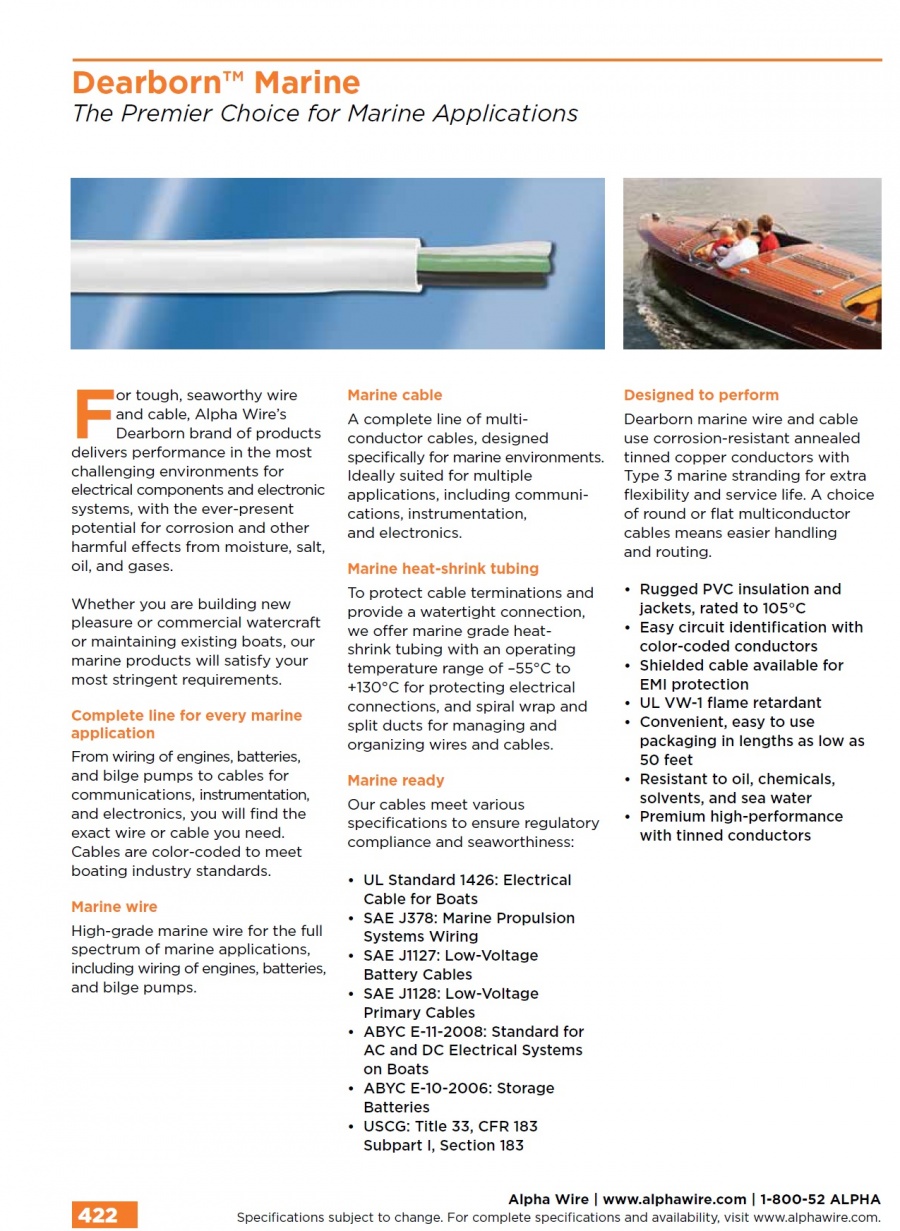

Marine Cable
Dearborn Marine cable uses corrosion-resistant annealed tinned copper conductors with Type 3 marine stranding for extra flexibility and service life. A choice of round or flat multiconductor cables means easier handling and routing.
Multiconductor Key features:
- Rugged PVC insulation and jackets, rated to 105°C
- Easy circuit identification with color-coded conductors
- Shielded cable available for EMI protection
- UL VW-1 flame retardant
- Convenient, easy to use packaging in lengths as low as 50 feet
- Resistant to oil, chemicals, solvents, and sea water
- Premium high-performance with tinned conductors
|
|
|
