    ALPHA- 600 V Unshielded, Three-Conductor Flat Bonded Trailer Cable, Awg16, (3, 4芯)倂行控制电缆
    看原圖
    		ALPHA-PTB1603



    商品編號: ALPHA-PTB1603

    ALPHA- 600 V Unshielded, Three-Conductor Flat Bonded Trailer Cable, Awg16, (3, 4芯)倂行控制电缆


    Dearborn™ Marine Cable
    600 V Unshielded, Multiconductor, Flat Bonded Trailer Cable
    SAE J378/J1128 Type GPT


    Operating Temperature
    • -20°C to +105°C
    Conductor Color Coding
    • 1 Brown, 2 Yellow, 3 Green, 4 White
    Materials
    • Stranded bare copper conductors
    • PVC insulation
    Availability
    100 ft (30.5 m)
    Bulk, cut to length
    (Minimums may apply)



    Dearborn 船用电缆使用带第 3 类船用绞线的防腐淬火镀锡铜芯线，具有更高的柔韧性和更长的服务寿命。各种圆形或扁平多芯电缆能使加工和布线更加容易。

    多芯电缆的主要特点：

    • 坚韧的聚氯乙烯绝缘和护套，额定温度达 105°C
    • 芯线采用颜色标识，便于识别
    • 屏蔽电缆用于电磁干扰防护
    • UL VW-1 阻燃性
    • 包装便利，最短仅50 英尺长
    • 具有耐油、耐腐蚀、耐溶剂和耐海水性能
    • 镀锡芯线，性能卓越

    满足各种海上应用的全套产品

    Alpha Wire 的产品涵盖所有海上应用。从发动机、蓄电池和舱底泵的接线到通信、仪表和电子设备的电缆，您都可以找到所需的电线或电缆。电缆全部具有颜色标记，符合船舶工业标准。


    从舱底到海岸的应用：

    • 发动机接线
    • 电池线
    • 扬声器电缆
    • 接合电缆
    • 电话电缆
    • 同轴通信电缆
    • 通信和控制电缆
    • 抗射频干扰电缆
    • 双工屏蔽电缆
    • 舱底泵电缆
    • 防水构造
    • 拖船电缆

    Marine ready 船用认证

    我们的电缆满足各种规范，确保遵守监管要求并适于航海。

    • UL 1426：船舶电力电缆
    • SAE J378：船用推进系统电线
    • SAE J1127：低压电池电缆
    • SAE J1128：低压基本电缆
    • ABYC E-11-2008：船用交流和直流电系统标准
    • ABYC E-10-2006：蓄电池
    • USCG：33，CFR 183 子部分 I，第 183 条

      　

    类型Dearborn™ 船用线
    • 船用线

      高级船用线，满足所有类型的船舶应用，包括发动机、蓄电池和舱底泵的接线。

    • 船用电缆

      全系列多芯电缆，专为在海上环境中使用而设计。应用广泛，例如：通信、仪表和电子设备。

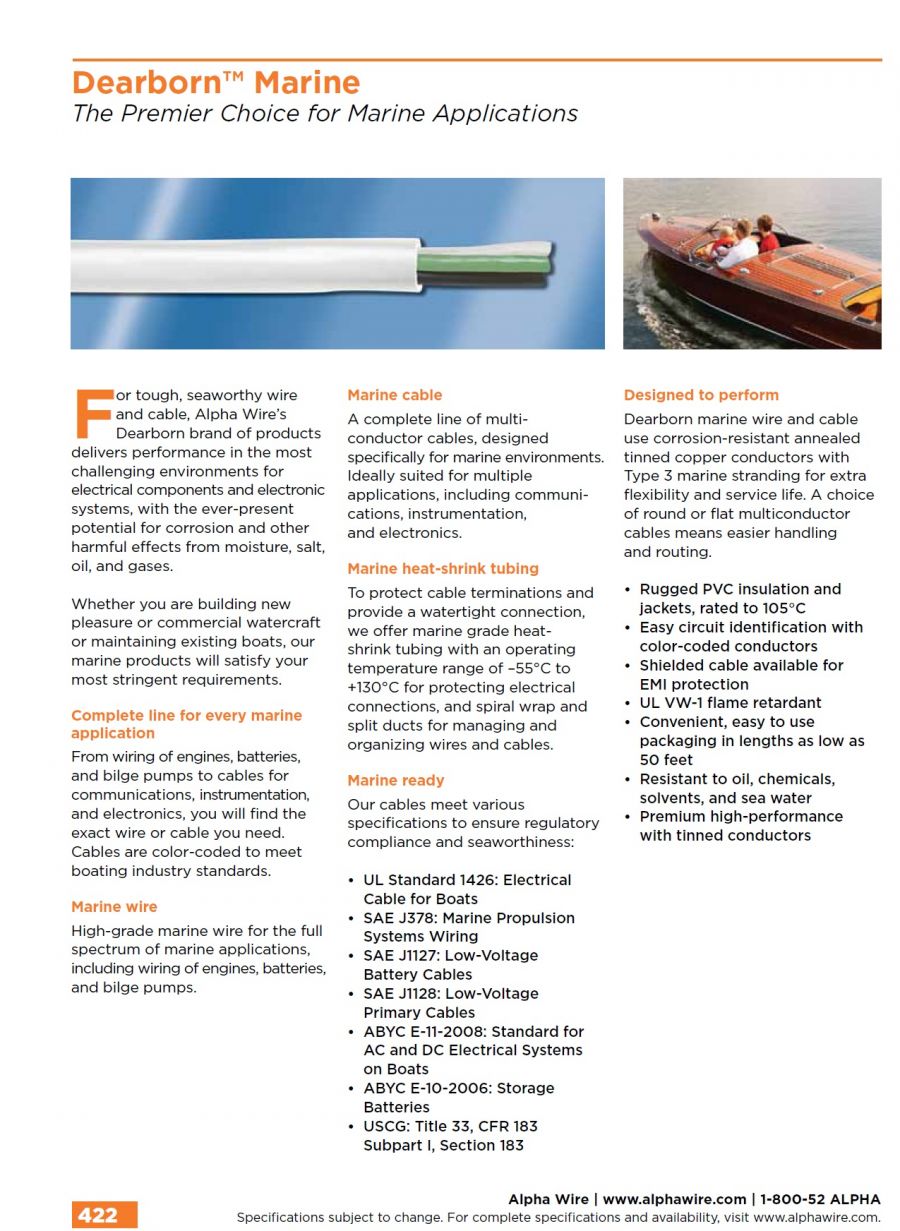

    Marine Cable

    　

    Dearborn Marine cable uses corrosion-resistant annealed tinned copper conductors with Type 3 marine stranding for extra flexibility and service life. A choice of round or flat multiconductor cables means easier handling and routing.

    Multiconductor Key features:

    • Rugged PVC insulation and jackets, rated to 105°C
    • Easy circuit identification with color-coded conductors
    • Shielded cable available for EMI protection
    • UL VW-1 flame retardant
    • Convenient, easy to use packaging in lengths as low as 50 feet
    • Resistant to oil, chemicals, solvents, and sea water
    • Premium high-performance with tinned conductors
    •


    Part #

    　

    		 Type

    　

    		 Shielding

    　

    		 Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    PRM1202 Multi-Conductor UNSHIELDED 600 12 2 0.413 CA Prop 65, UL OIL RES I, UL VW-1
    PRM1203 Multi-Conductor UNSHIELDED 600 12 3 0.415 CA Prop 65, UL OIL RES I, UL VW-1
    PRM1204 Multi-Conductor UNSHIELDED 600 12 4 0.46 CA Prop 65, UL OIL RES I, UL VW-1
    PRM1402 Multi-Conductor UNSHIELDED 600 14 2 0.375 CA Prop 65, UL OIL RES I, UL VW-1
    PRM1403 Multi-Conductor UNSHIELDED 600 14 3 0.381 CA Prop 65, UL OIL RES I, UL VW-1
    PRM1404 Multi-Conductor UNSHIELDED 600 14 4 0.415 CA Prop 65, UL OIL RES I, UL VW-1
    PRM1602 Multi-Conductor UNSHIELDED 600 16 2 0.33 CA Prop 65, UL OIL RES I, UL VW-1
    PRM1603 Multi-Conductor UNSHIELDED 600 16 3 0.354 CA Prop 65, UL OIL RES I, UL VW-1
    PRM1604 Multi-Conductor UNSHIELDED 600 16 4 0.374 CA Prop 65, UL OIL RES I, UL VW-1
    PSD1002 Multi-Conductor FOIL/BRAID 600 10 2 0.438 UL VW-1
    PSD1602 Multi-Conductor FOIL/BRAID 600 16 20 0.338 UL VW-1
    PTB1603 Multi-Conductor UNSHIELDED 　 16 3 .023 x .069 SAE J378/J1128 Type GPT
    PTB1604 Multi-Conductor UNSHIELDED 　 16 4 .023 x .093 SAE J378/J1128 Type GPT
    PTM1404 Multi-Conductor UNSHIELDED 　 14 4 0.44 UL - Boat Cable (BC-5W2)
    PTM1604 Multi-Conductor UNSHIELDED 　 16 4 0.399 UL - Boat Cable (BC-5W2)
    PWM1002B Multi-Conductor UNSHIELDED 　 10 2 .176 x .353 SAE J1128 Type GPT, SAE J378B
    PWM1202B Multi-Conductor UNSHIELDED 　 12 2 .142 x .285 SAE J1128 Type GPT, SAE J378B
