ALPHA- 300 V Unshielded, 4-Conductor Premier Round Trailer Cable (Awg16, 14) 4芯圓形PVC船舶 移動式控制电缆
Dearborn™ Marine Cable

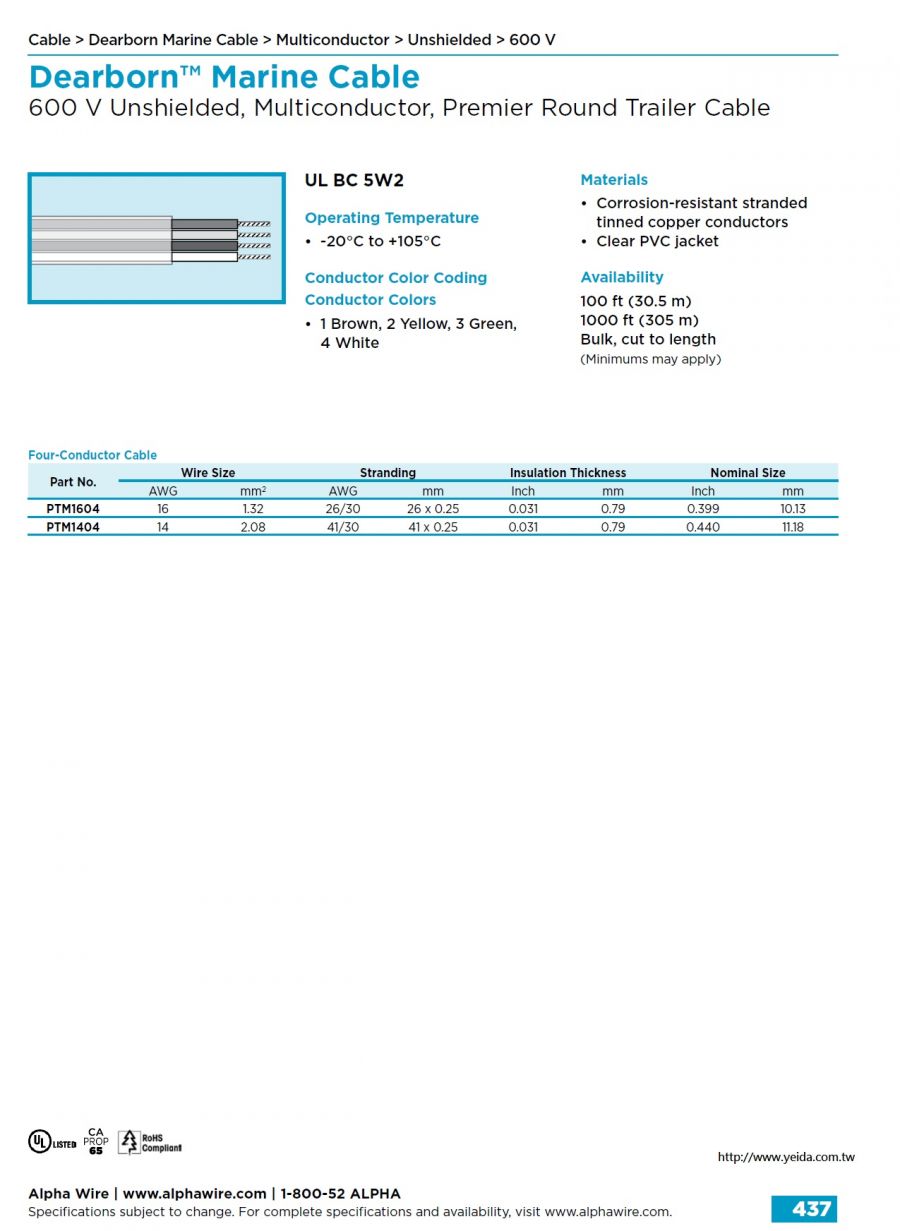

600 V Unshielded, Multiconductor, Premier Round Trailer Cable
UL BC 5W2
Operating Temperature
• -20°C to +105°C Conductor Color Coding
Conductor Colors
• 1 Brown, 2 Yellow, 3 Green, 4 White Materials
• Corrosion-resistant stranded tinned copper conductors
• Clear PVC jacket Availability
100 ft (30.5 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

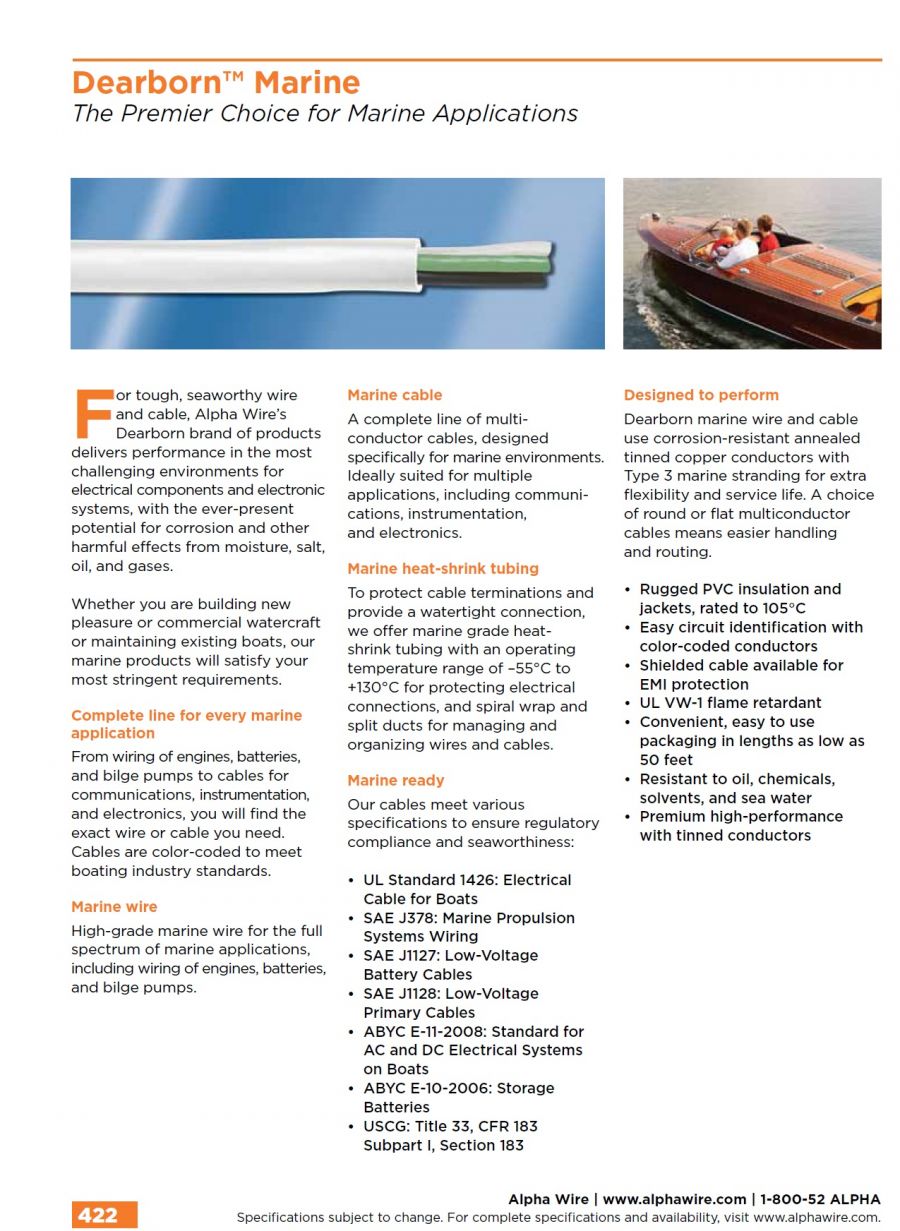

Dearborn Marine cable uses corrosion-resistant annealed tinned copper conductors with Type 3 marine stranding for extra flexibility and service life. A choice of round or flat multiconductor cables means easier handling and routing.
Multiconductor Key features:
Rugged PVC insulation and jackets, rated to 105°C
Easy circuit identification with color-coded conductors
Shielded cable available for EMI protection
UL VW-1 flame retardant
Convenient, easy to use packaging in lengths as low as 50 feet
Resistant to oil, chemicals, solvents, and sea water
