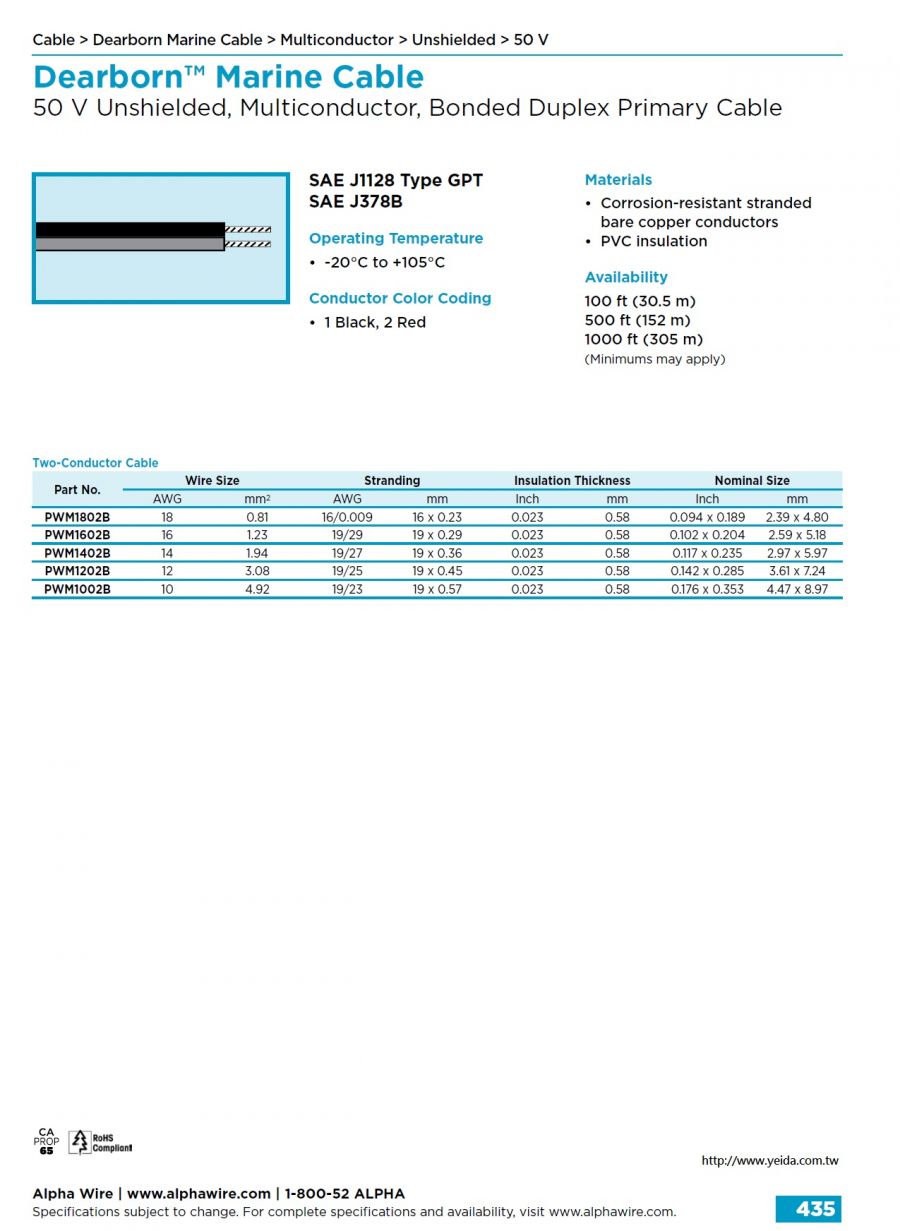

Dearborn™ Marine Cable
50 V Unshielded, Multiconductor, Bonded Duplex Primary Cable
SAE J1128 Type GPT
SAE J378B
Operating Temperature
• -20°C to +105°C Conductor Color Coding
• 1 Black, 2 Red
Two-Conductor Cable Materials
• Corrosion-resistant stranded bare copper conductors
• PVC insulation Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
(Minimums may apply)

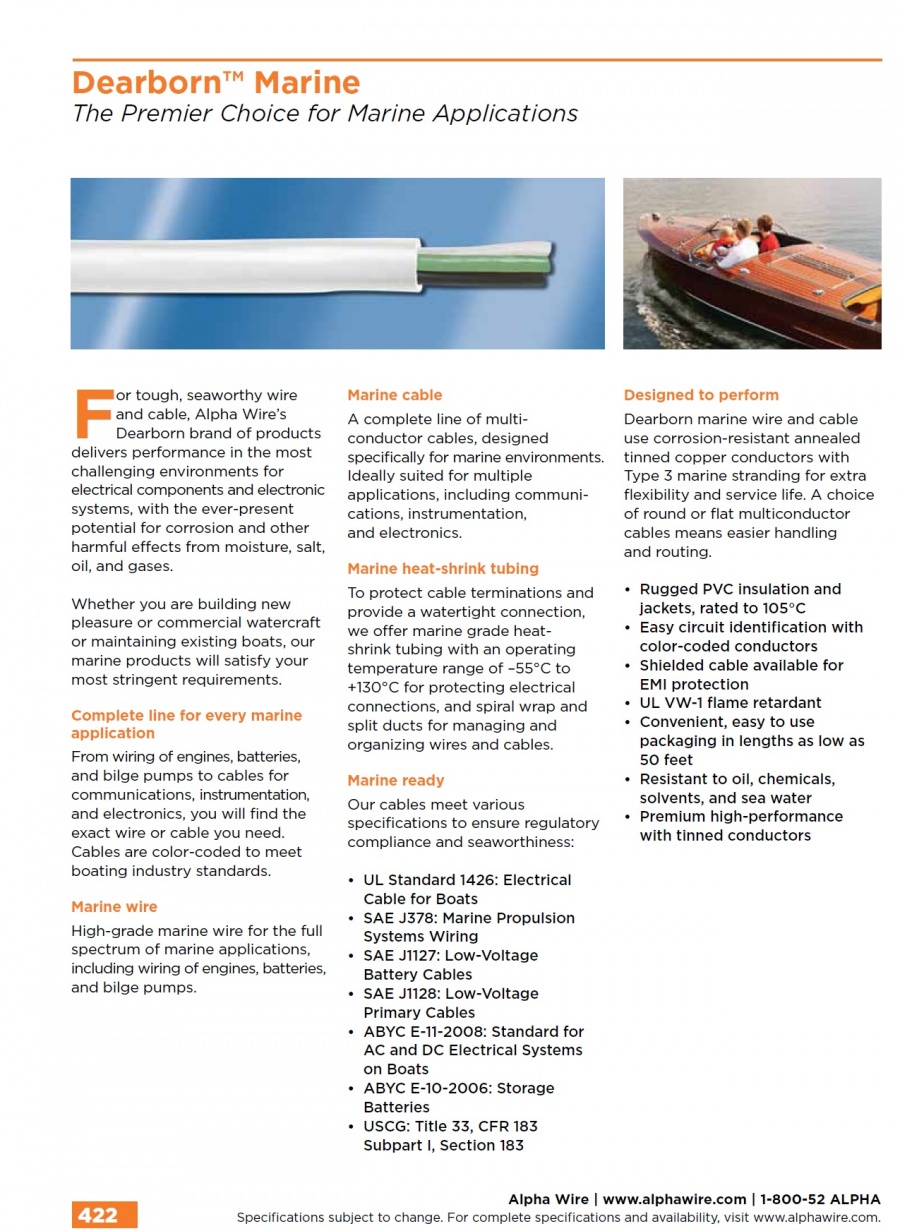

Dearborn Marine cable uses corrosion-resistant annealed tinned copper conductors with Type 3 marine stranding for extra flexibility and service life. A choice of round or flat multiconductor cables means easier handling and routing.
Multiconductor Key features:
Rugged PVC insulation and jackets, rated to 105°C
Easy circuit identification with color-coded conductors
Shielded cable available for EMI protection
UL VW-1 flame retardant
Convenient, easy to use packaging in lengths as low as 50 feet
Resistant to oil, chemicals, solvents, and sea water
