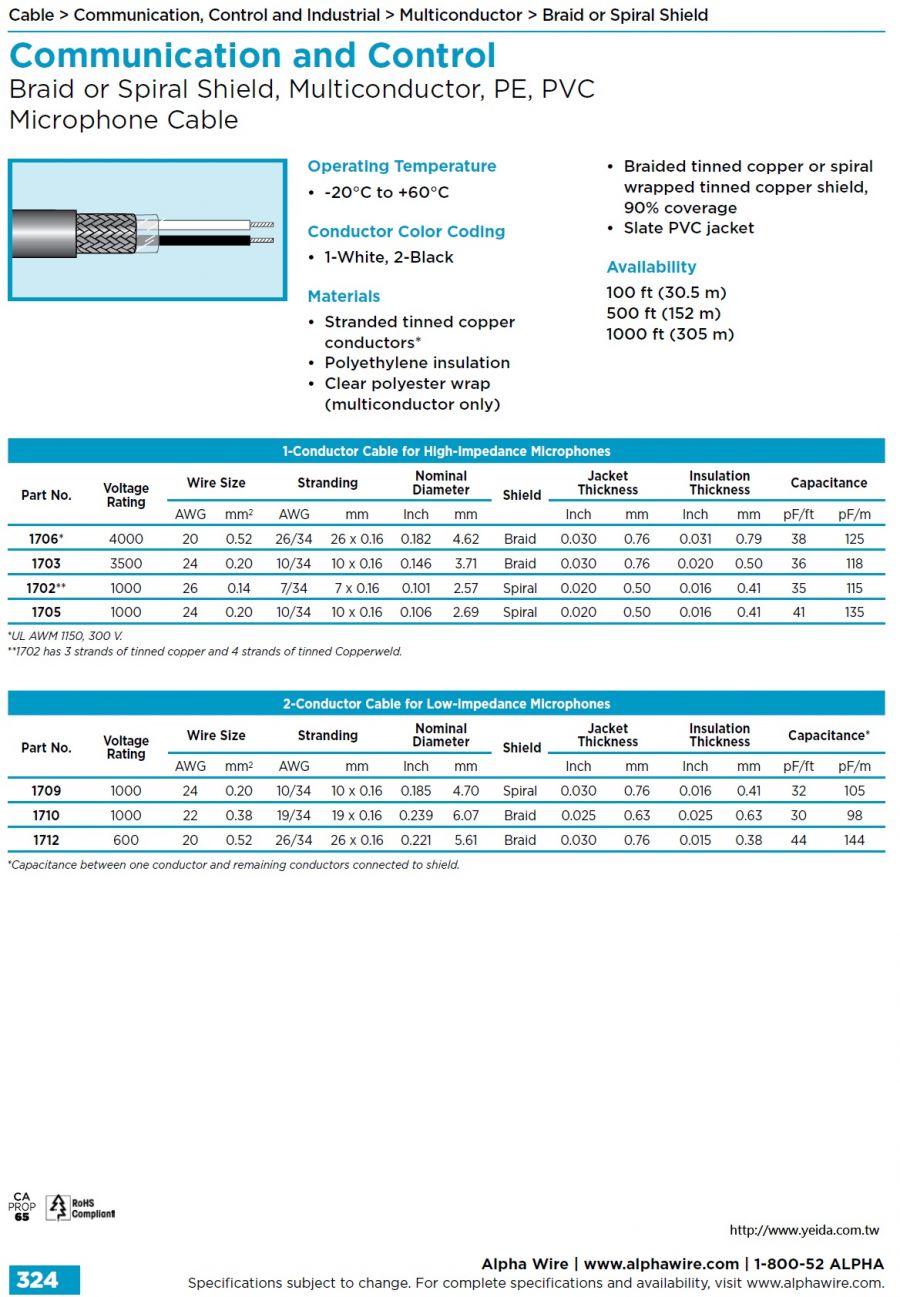

ALPHA-Communication and Control (AWG 26, 24, 20 ) 600 V to 4000V Braid or Spiral Shield, Multiconductor, PE, PVC Microphone Cable 高壓多芯型銅網隔離通信控制電纜線

ALPHA-1706

Communication and Control
Braid or Spiral Shield, Multiconductor, PE, PVC
Microphone Cable

Operating Temperature
• -20°C to +60°C
Conductor Color Coding
• 1-White, 2-Black
Materials
• Stranded tinned copper conductors*
• Polyethylene insulation
• Clear polyester wrap (multiconductor only)
• Braided tinned copper or spiral wrapped tinned copper shield, 90% coverage
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)

★★★★商品說明★★★★

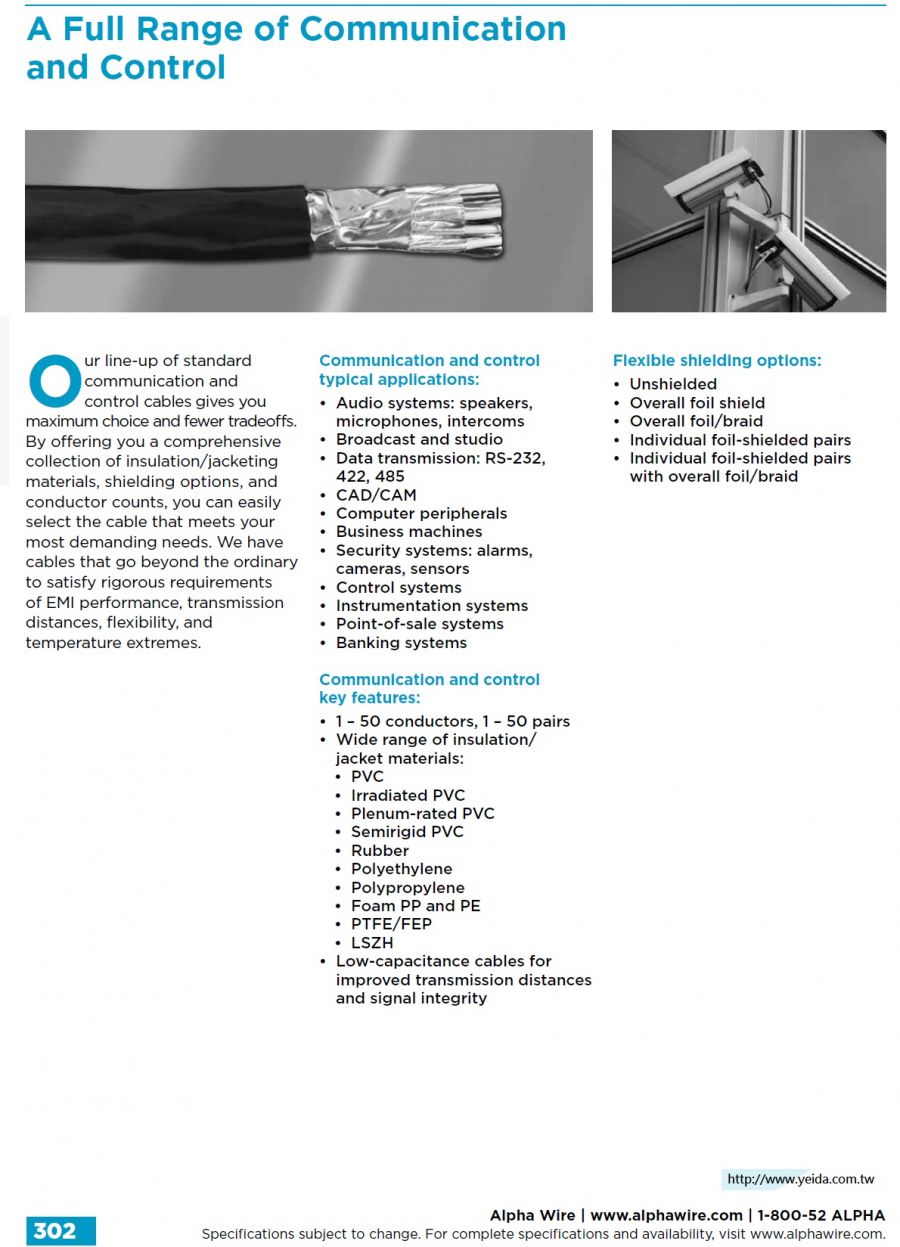

Communication & Control

Get control of your communication and control applications

Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

Communication and Control Typical applications:

Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Flexible shielding options:

Unshielded
Overall foil shield
Overall foil/braid
Individual foil-shielded pairs
Individual foil-shielded pairs with overall foil/braid

Low capacitance cables for improved transmission distances and signal integrity.

通信和控制应用，尽在掌握之中

我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

通信和控制电缆的典型应用：

音频系统：扬声器、麦克风、对讲机
广播和播音室
数据传输RS-232, 422, 485
计算机辅助设计/计算机辅助制造
计算机外设
商业机器
安防系统：警报器、摄像头、传感器
控制系统
测试仪表系统
销售网点系统
银行系统

灵活的屏蔽选项：

非屏蔽电缆
整体铝箔屏蔽
整体铝箔/编织屏蔽
单独铝箔屏蔽线对
单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

低电容电缆，延长了传输距离，提高了信号完整性。

Type	Shielding	Voltage	AWG	# of Elements	Jacket Material	Insulation Material	Jacket Diameter
1324C	Multi-Pair	UNSHIELDED	300	22	11	PVC	PVC	0.401	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1
1325C	Multi-Pair	UNSHIELDED	300	22	12	PVC	PVC	0.414	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1
1327/19C	Multi-Pair	UNSHIELDED	300	22	19	PVC	PVC	0.493	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1
1327C	Multi-Pair	UNSHIELDED	300	22	15	PVC	PVC	0.46	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1
1450	Multi-Conductor	BRAID	600	18	2	NEOPRENE	Rubber	0.31	CA Prop 65
1450/16	Multi-Conductor	BRAID	600	16	2	NEOPRENE	Rubber	0.327	CA Prop 65
1451/16	Multi-Conductor	BRAID	600	16	3	NEOPRENE	Rubber	0.35	CA Prop 65
1454	Multi-Conductor	BRAID	600	18	6	NEOPRENE	Rubber	0.37	CA Prop 65
1604	Multi-Conductor	UNSHIELDED	150	26	4	PVC	PP	0.09	CA Prop 65
1606	Multi-Conductor	UNSHIELDED	150	26	6	PVC	PP	0.09	CA Prop 65
1608	Multi-Conductor	UNSHIELDED	150	26	8	PVC	PP	0.09	CA Prop 65
1702	Conductor	SPIRAL	1000	25	1	PVC	PE	0.101	CA Prop 65
1703	Conductor	BRAID	3500	24	1	PVC	PE	0.146	CA Prop 65
1705	Conductor	SPIRAL	1000	24	1	PVC	PE	0.106	CA Prop 65
1706	Conductor	BRAID	4000	20	1	PVC	PE	0.182	CA Prop 65, UL AWM 1150
1709	Multi-Conductor	SPIRAL	1000	24	2	PVC	PE	0.185	CA Prop 65
1710	Multi-Conductor	BRAID	1000	22	2	PVC	PE	0.239	CA Prop 65
1712	Multi-Conductor	BRAID	600	20	2	PVC	PE	0.221	CA Prop 65
1713	Multi-Conductor	BRAID	600	20	3	PVC	PE	0.248	CA Prop 65
1715	Multi-Conductor	BRAID	600	20	4	PVC	PE	0.266	CA Prop 65
