    ALPHA-Communication and Control (AWG 14, 12) 300 V Braid Shield, Multiconductor, PVC, PVC UL AWM 2095, 1108 VW-1 多芯PVC絕緣銅網隔離通信控制電纜線
    看原圖

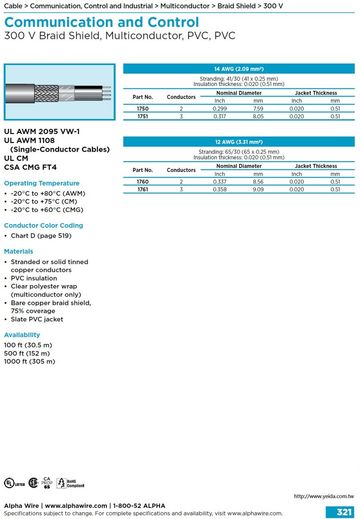

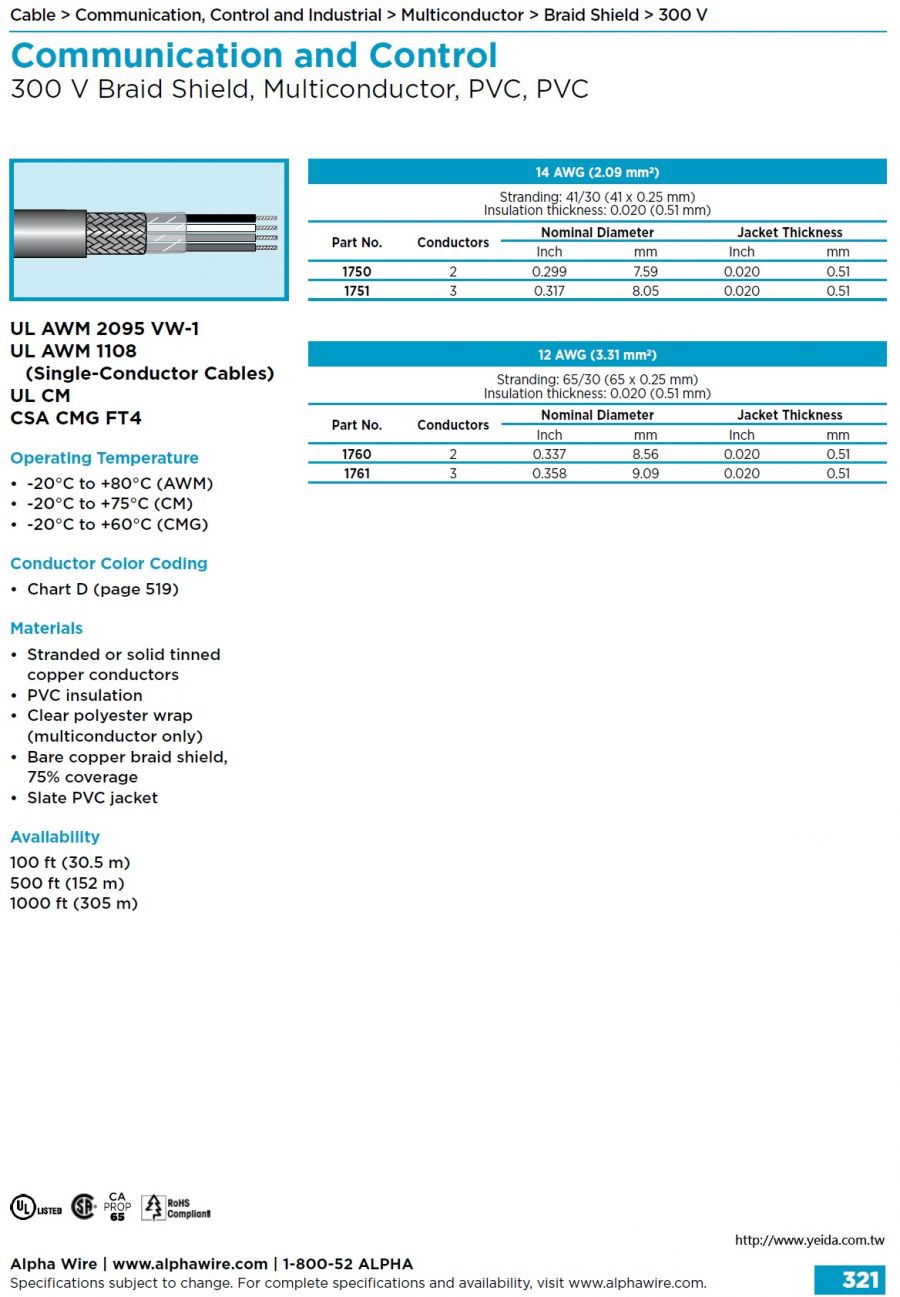

    		ALPHA-1750

    Communication and Control
    300 V Braid Shield, Multiconductor, PVC, PVC
    UL AWM 2095 VW-1
    UL AWM 1108
    (Single-Conductor Cables)
    UL CM CSA CMG FT4


    Operating Temperature
    • -20°C to +80°C (AWM)
    • -20°C to +75°C (CM)
    • -20°C to +60°C (CMG)
    Conductor Color Coding
    • Chart D (page 519)
    Materials
    • Stranded or solid tinned copper conductors
    • PVC insulation
    • Clear polyester wrap (multiconductor only)
    • Bare copper braid shield, 75% coverage
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)




    　

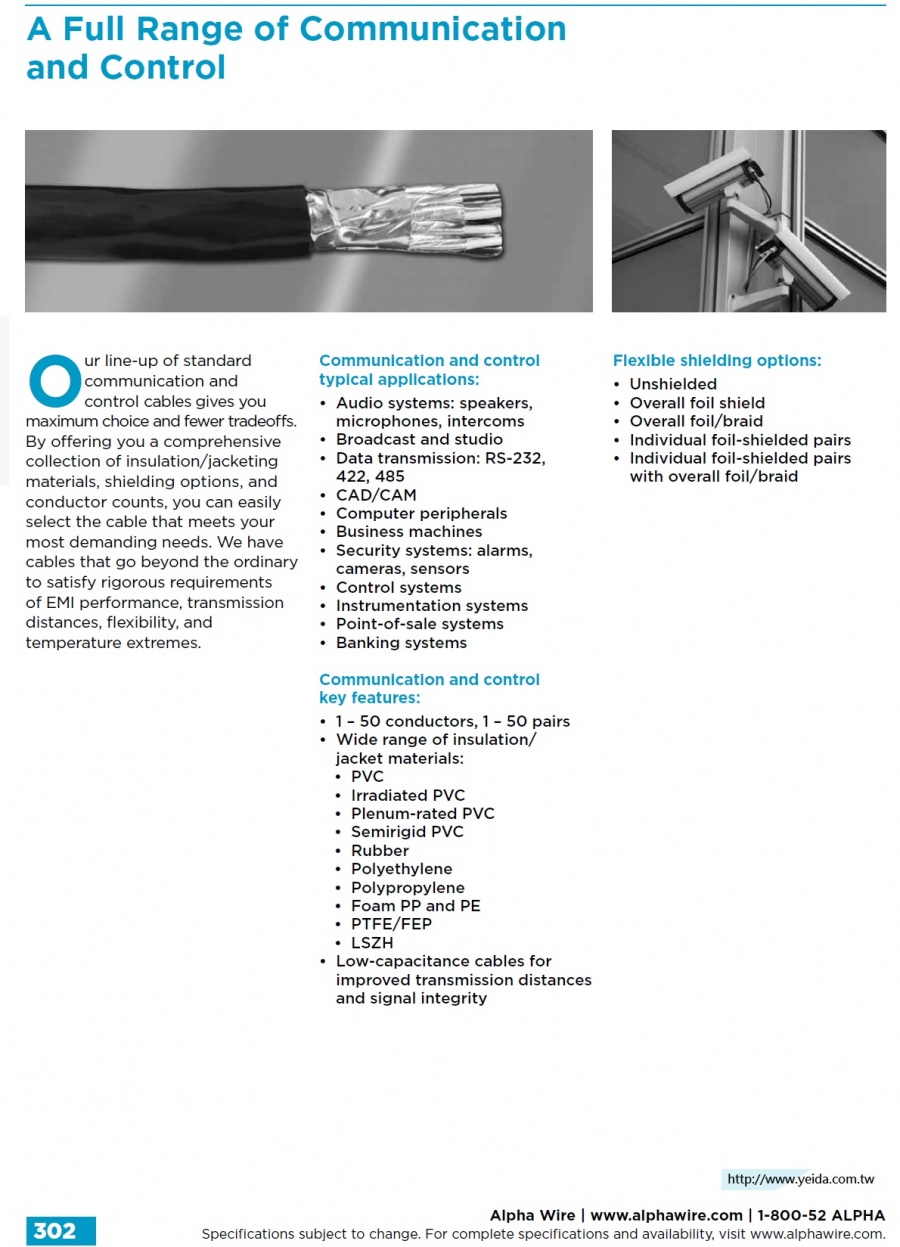

    Communication & Control

    　

    Get control of your communication and control applications

    Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

    Communication and Control Typical applications:

    • Audio systems: speakers, microphones, intercoms
    • Broadcast and studio
    • Data transmission: RS-232, 422, 485
    • CAD/CAM
    • Computer peripherals
    • Business machines
    • Security systems: alarms, cameras, sensors
    • Control systems
    • Instrumentation systems
    • Point-of-sale systems
    • Banking systems

    Flexible shielding options:

    • Unshielded
    • Overall foil shield
    • Overall foil/braid
    • Individual foil-shielded pairs
    • Individual foil-shielded pairs with overall foil/braid

    Low capacitance cables for improved transmission distances and signal integrity.

    通信和控制应用，尽在掌握之中

    我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

    通信和控制电缆的典型应用：

    • 音频系统：扬声器、麦克风、对讲机
    • 广播和播音室
    • 数据传输RS-232, 422, 485
    • 计算机辅助设计/计算机辅助制造
    • 计算机外设
    • 商业机器
    • 安防系统：警报器、摄像头、传感器
    • 控制系统
    • 测试仪表系统
    • 销售网点系统
    • 银行系统

    灵活的屏蔽选项：

    • 非屏蔽电缆
    • 整体铝箔屏蔽
    • 整体铝箔/编织屏蔽
    • 单独铝箔屏蔽线对
    • 单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

    低电容电缆，延长了传输距离，提高了信号完整性。
    Part # Type

    　

    		 Shielding　 Voltage AWG # of Elements

    　

    		 Jacket Material

    　

    		 Insulation Material

    　

    		 Jacket Diameter
    1750 Multi-Conductor BRAID 450 14 2 PVC PVC 0.299 CA Prop 65
    1751 Multi-Conductor BRAID 450 14 3 PVC PVC 0.317 CA Prop 65
    1760 Multi-Conductor BRAID 450 12 2 PVC PVC 0.337 CA Prop 65
    1761 Multi-Conductor BRAID 450 12 3 PVC PVC 0.358 CA Prop 65
    1771 Multi-Conductor BRAID 600 23 2 PVC PE 0.243 CA Prop 65
    1772 Multi-Conductor BRAID 600 25 4 PVC PE 0.239 CA Prop 65
    1775C Multi-Conductor BRAID 300 22 2 PVC PVC 0.195 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CM, UL VW/1
    1793C Multi-Conductor UNSHIELDED 300 22 2 PVC PVC 0.157 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1
    1826C Composite UNSHIELDED 300 22+18 6 PVC PVC 0.241 CA Prop 65, CSA CMG, CSA FT4, UL CM, UL VW/1
    1827C Composite UNSHIELDED 300 22+18 7 PVC PVC 0.247 CA Prop 65, CSA CMG, CSA FT4, UL CM, UL VW/1
    1828C Composite UNSHIELDED 300 22+18 8 PVC PVC 0.261 CA Prop 65, CSA CMG, CSA FT4, UL CM, UL VW/1
    1891/3C Multi-Conductor UNSHIELDED 300 14 3 PVC PVC 0.286 CA Prop 65, CSA AWM I/II A/B, CSA FT1, UL CL2, UL VW/1
    1891C Multi-Conductor UNSHIELDED 300 14 2 PVC PVC 0.268 CA Prop 65, CSA AWM I/II A/B, CSA FT1, UL CL2, UL VW/1
    1892/3C Conductor UNSHIELDED 300 12 3 PVC PVC 0.333 CA Prop 65, CSA AWM I/II A/B, CSA FT1, UL CL2, UL VW/1
    1892C Multi-Conductor UNSHIELDED 300 12 2 PVC PVC 0.312 CA Prop 65, CSA AWM I/II A/B, CSA FT1, UL CL2, UL VW/1
    1895C Multi-Conductor UNSHIELDED 300 20 2 PVC PVC 0.18 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2509, UL CM, UL VW/1
    1896/4C Multi-Conductor UNSHIELDED 300 20 4 PVC PVC 0.209 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2509, UL CM, UL VW/1
    1896/5C Multi-Conductor UNSHIELDED 300 20 5 PVC PVC 0.23 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2509, UL CM, UL VW/1
    1896/6C Multi-Conductor UNSHIELDED 300 20 6 PVC PVC 0.251 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2509, UL CM, UL VW/1
    1896/7C Multi-Conductor UNSHIELDED 300 20 7 PVC PVC 0.251 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2509, UL CM, UL VW/1
