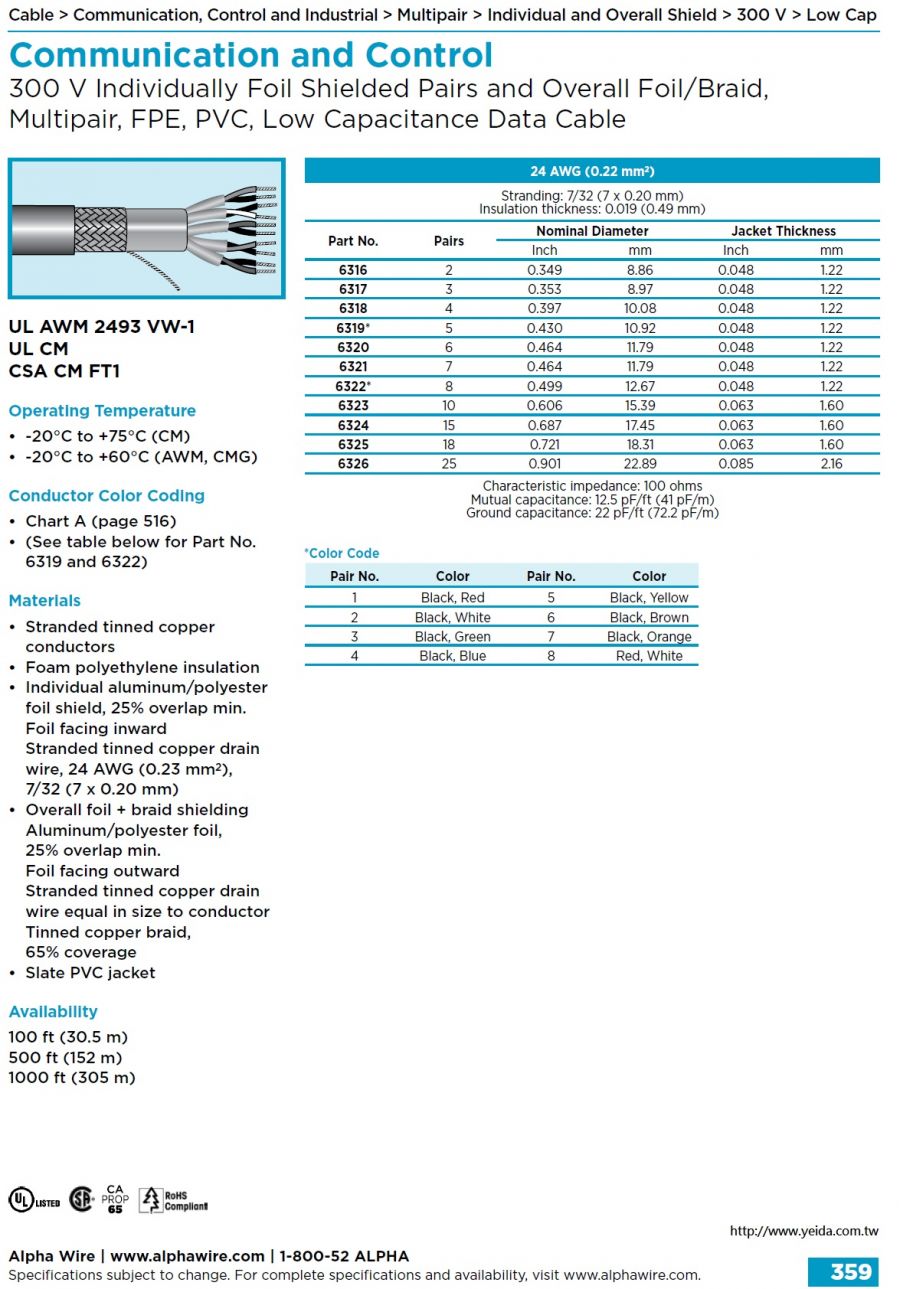

Communication and Control
300 V Individually Foil Shielded Pairs and Overall Foil/Braid,
Multipair, FPE, PVC, Low Capacitance Data Cable
UL AWM 2493 VW-1
UL CM
CSA CM FT1
Operating Temperature
• -20°C to +75°C (CM)
• -20°C to +60°C (AWM, CMG) Conductor Color Coding
• Chart A (page 516)
• (See table below for Part No. 6319 and 6322) Materials
• Stranded tinned copper conductors
• Foam polyethylene insulation
• Individual aluminum/polyester foil shield, 25% overlap min.
Foil facing inward Stranded tinned copper drain
wire, 24 AWG (0.23 mm2), 7/32 (7 x 0.20 mm)
• Overall foil + braid shielding Aluminum/polyester foil,
25% overlap min. Foil facing outward Stranded tinned copper drain
wire equal in size to conductor Tinned copper braid, 65% coverage
• Slate PVC jacket Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)

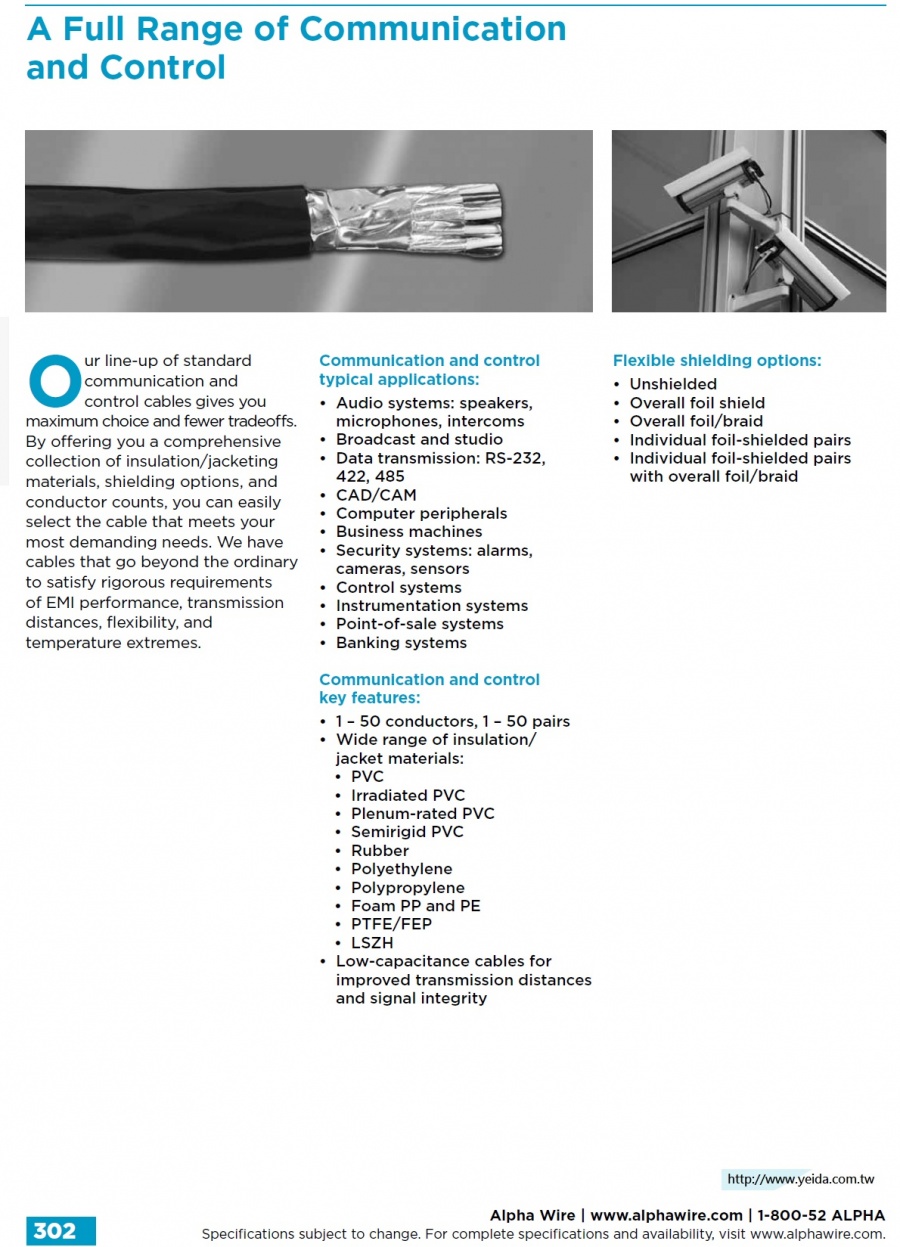

Communication & Control
Get control of your communication and control applications
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Communication and Control Typical applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Flexible shielding options:
Unshielded
Overall foil shield
Overall foil/braid
Individual foil-shielded pairs
Individual foil-shielded pairs with overall foil/braid
Low capacitance cables for improved transmission distances and signal integrity.
