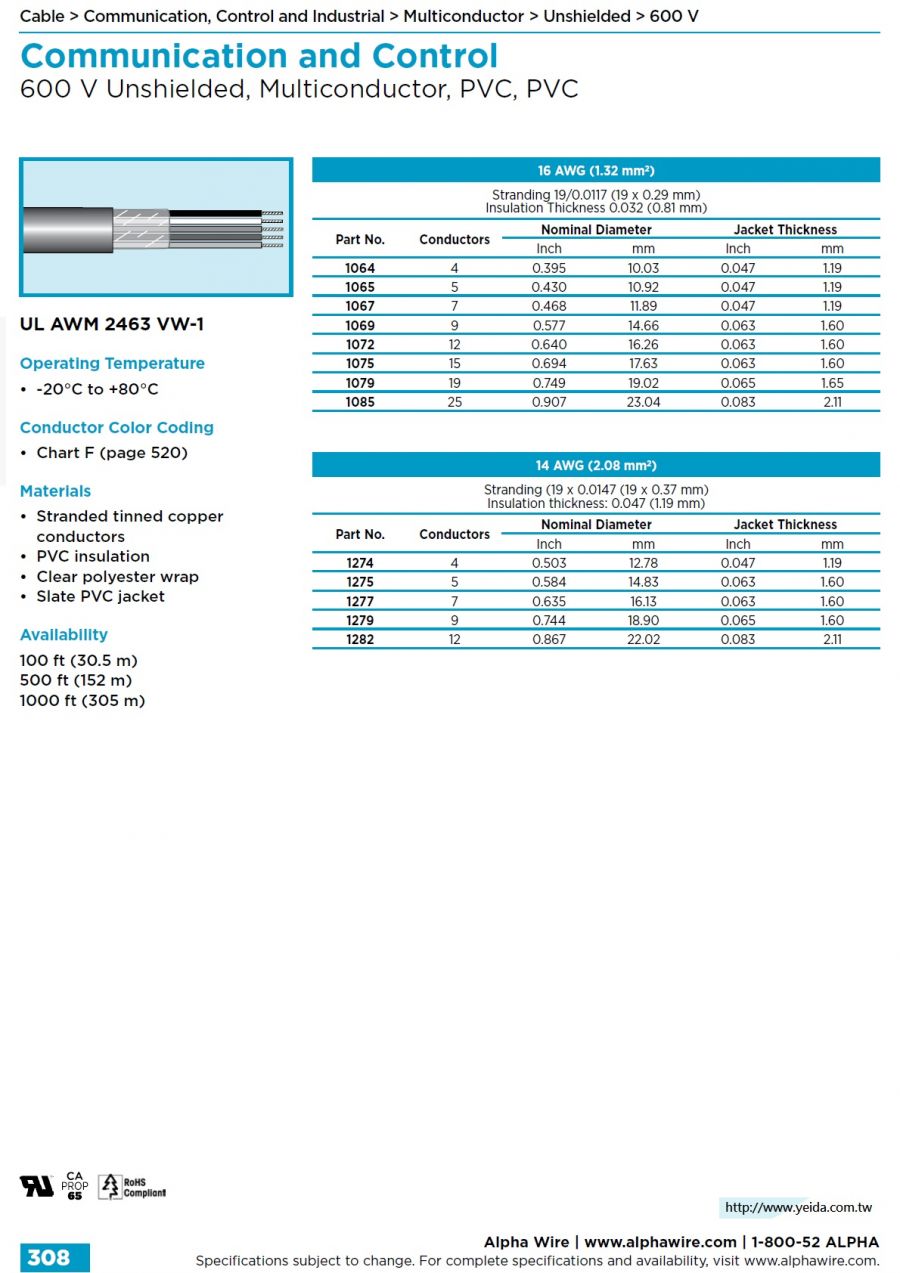

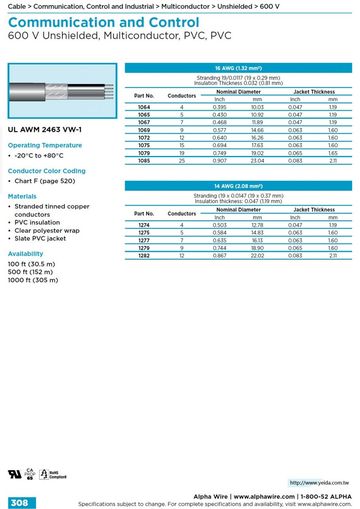

Communication and Control
600 V Unshielded, Multiconductor, PVC, PVC
UL AWM 2463 VW-1
Operating Temperature
• -20°C to +80°C Conductor Color Coding
• Chart F (page 520) Materials
• Stranded tinned copper conductors
• PVC insulation
• Clear polyester wrap
• Slate PVC jacket Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
