ALPHA-1173C Awg 22 x 3C UNSHIELDED 300V CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1 通信与控制電纜

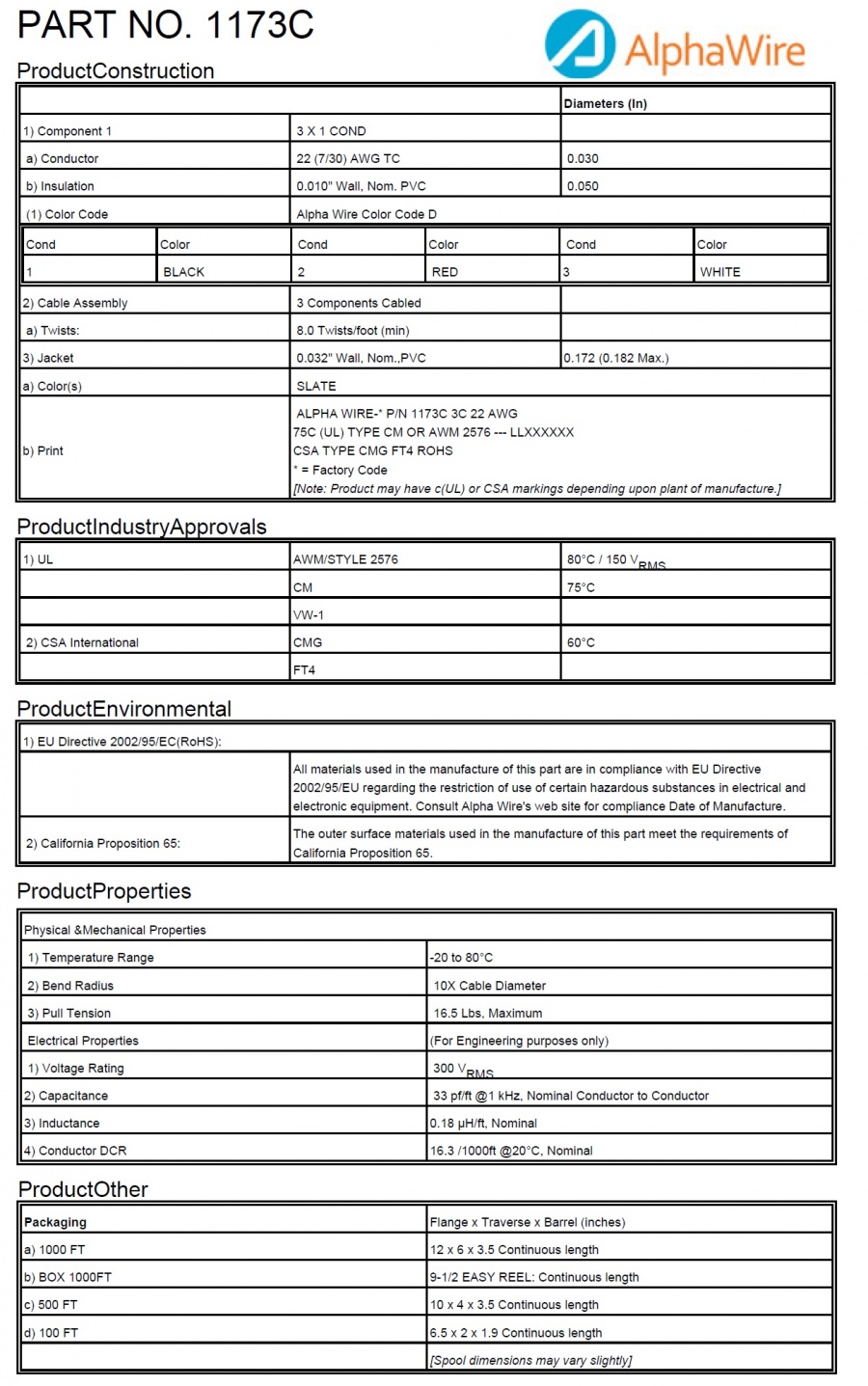

ALPHA-1173C

ProductConstruction

Diameters (In)

1) Component 1

3 X 1 COND

a) Conductor

22 (7/30) AWG TC

0.030

b) Insulation

0.010" Wall, Nom. PVC

0.050

(1) Color Code

Alpha Wire Color Code D

Cond	Color	Cond	Color	Cond	Color
1	BLACK	2	RED	3	WHITE

2) Cable Assembly

3 Components Cabled

a) Twists:

8.0 Twists/foot (min)

3) Jacket

0.032" Wall, Nom.,PVC

0.172 (0.182 Max.)

a) Color(s)

SLATE

b) Print

ALPHA WIRE-* P/N 1173C 3C 22 AWG
75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX
CSA TYPE CMG FT4 ROHS
* = Factory Code
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

★★★★商品說明★★★★

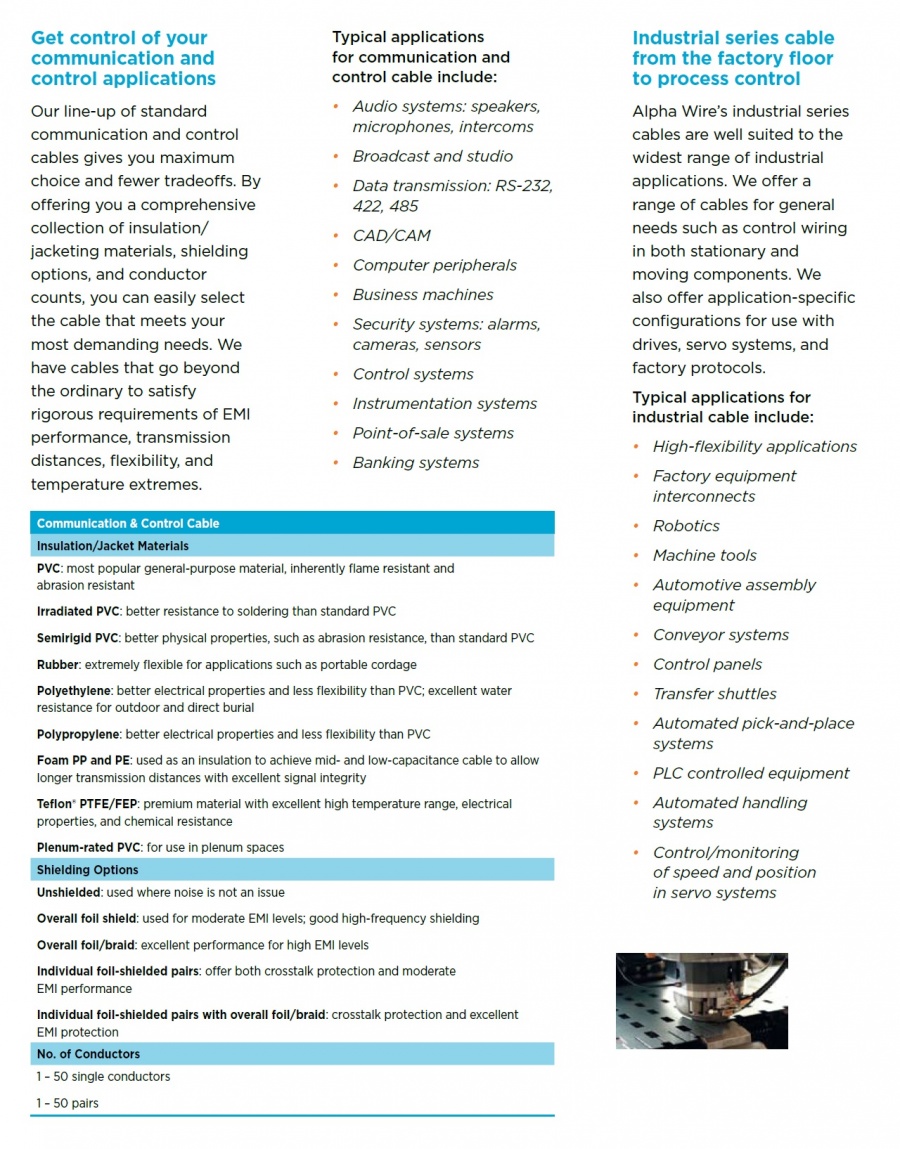

Get control of your communication and control applications

Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

Communication and Control Typical applications:

Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Flexible shielding options:

Unshielded
Overall foil shield
Overall foil/braid
Individual foil-shielded pairs
Individual foil-shielded pairs with overall foil/braid

★★★★使用操作說明★★★★

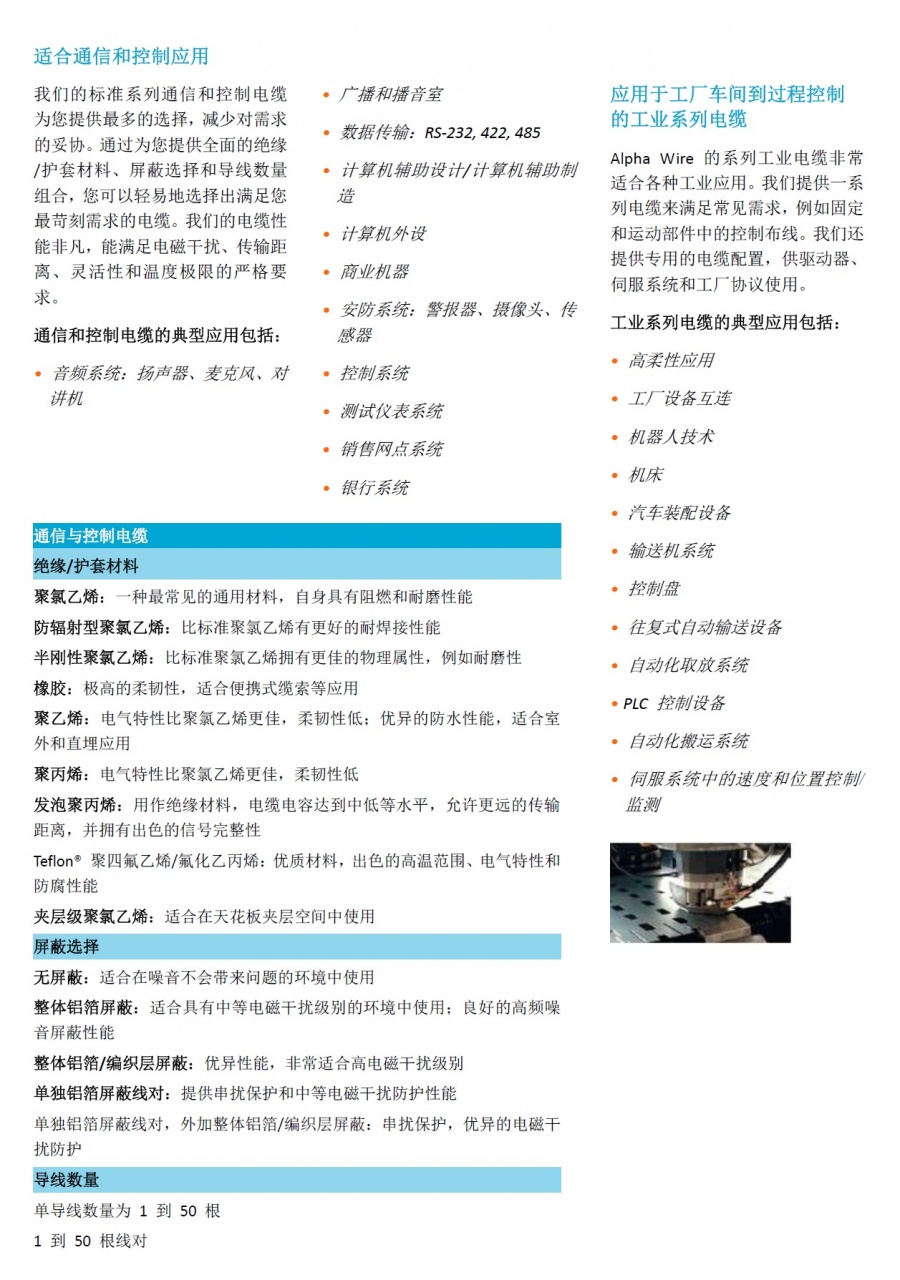

通信和控制应用，尽在掌握之中

我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

通信和控制电缆的典型应用：

音频系统：扬声器、麦克风、对讲机
广播和播音室
数据传输RS-232, 422, 485
计算机辅助设计/计算机辅助制造
计算机外设
商业机器
安防系统：警报器、摄像头、传感器
控制系统
测试仪表系统
销售网点系统
银行系统

灵活的屏蔽选项：

非屏蔽电缆
整体铝箔屏蔽
整体铝箔/编织屏蔽
单独铝箔屏蔽线对
单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

低电容电缆，延长了传输距离，提高了信号完整性。

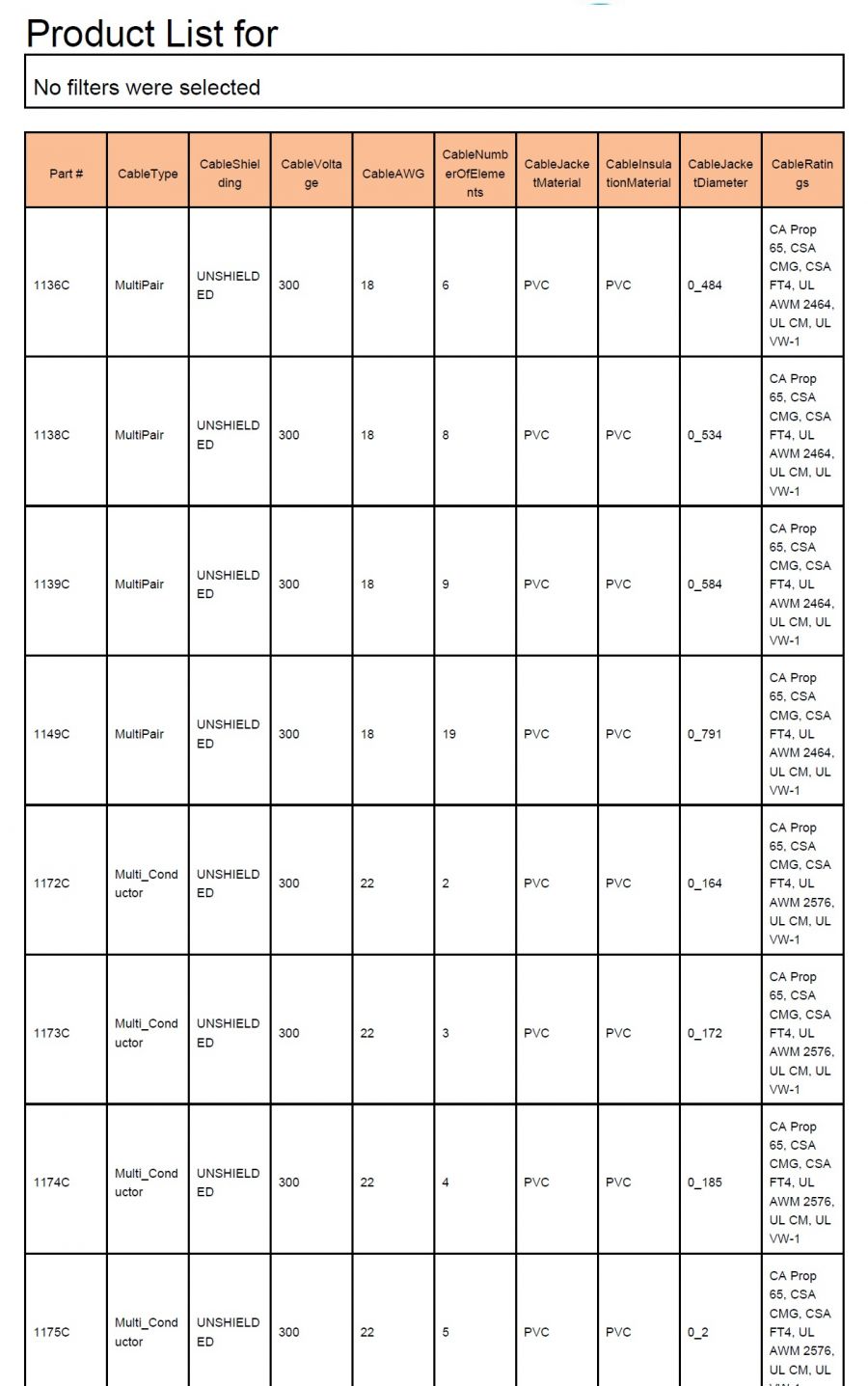

Type	Shielding	Voltage	AWG	# of Elements	Jacket Material	Insulation Material	Jacket Diameter	Applicable Specifications
1136C	Multi-Pair	UNSHIELDED	300	18	6	PVC	PVC	0.484	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2464, UL CM, UL VW/1
1138C	Multi-Pair	UNSHIELDED	300	18	8	PVC	PVC	0.534
1139C	Multi-Pair	UNSHIELDED	300	18	9	PVC	PVC	0.584
1149C	Multi-Pair	UNSHIELDED	300	18	19	PVC	PVC	0.791
1172C	Multi-Conductor	UNSHIELDED	300	22	2	PVC	PVC	0.164
1173C	Multi-Conductor	UNSHIELDED	300	22	3	PVC	PVC	0.172
1174C	Multi-Conductor	UNSHIELDED	300	22	4	PVC	PVC	0.185
1175C	Multi-Conductor	UNSHIELDED	300	22	5	PVC	PVC	0.2
1176C	Multi-Conductor	UNSHIELDED	300	22	6	PVC	PVC	0.215
1177C	Multi-Conductor	UNSHIELDED	300	22	7	PVC	PVC	0.215
1178C	Multi-Conductor	UNSHIELDED	300	22	8	PVC	PVC	0.23
1179C	Multi-Conductor	UNSHIELDED	300	22	9	PVC	PVC	0.246
1180C	Multi-Conductor	UNSHIELDED	300	22	10	PVC	PVC	0.264
1181/15C	Multi-Conductor	UNSHIELDED	300	22	15	PVC	PVC	0.294
1181/20C	Multi-Conductor	UNSHIELDED	300	22	20	PVC	PVC	0.326
1181/25C	Multi-Conductor	UNSHIELDED	300	22	25	PVC	PVC	0.364
1181/30C	Multi-Conductor	UNSHIELDED	300	22	30	PVC	PVC	0.385
1181/40C	Multi-Conductor	UNSHIELDED	300	22	40	PVC	PVC	0.429
1181/50C	Multi-Conductor	UNSHIELDED	300	22	50	PVC	PVC	0.478
1181/60C	Multi-Conductor	UNSHIELDED	300	22	60	PVC	PVC	0.52
