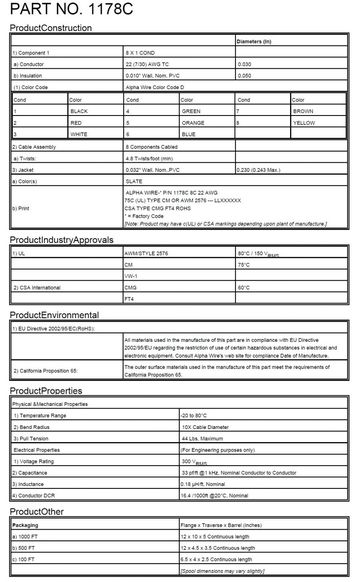

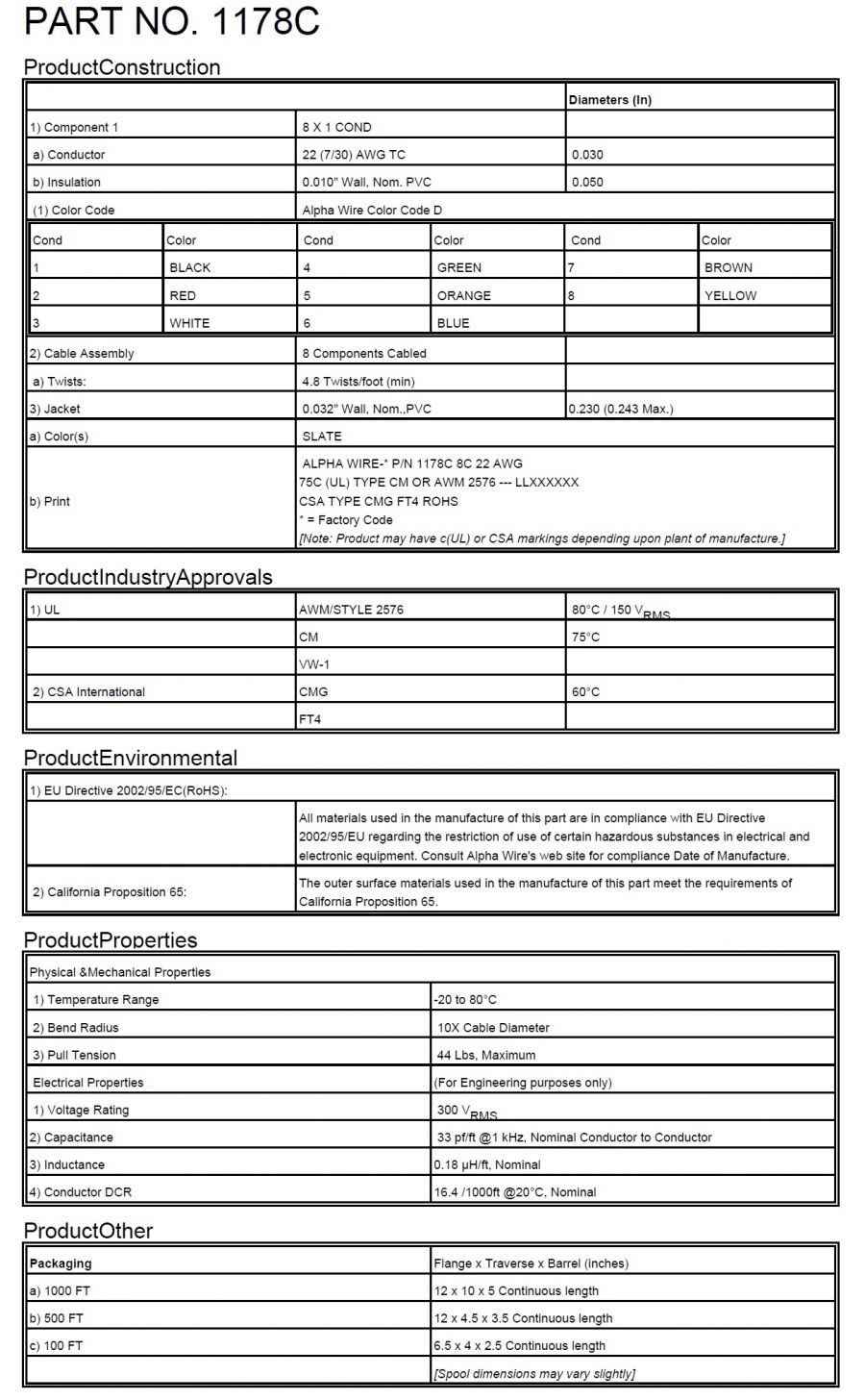

ALPHA-1178C
ProductConstructionDiameters (In) 1) Component 1 8 X 1 COND a) Conductor 22 (7/30) AWG TC 0.030 b) Insulation 0.010" Wall, Nom. PVC 0.050 (1) Color Code Alpha Wire Color Code D Cond Color Cond Color Cond Color 1 BLACK 4 GREEN 7 BROWN 2 RED 5 ORANGE 8 YELLOW 3 WHITE 6 BLUE 2) Cable Assembly 8 Components Cabled a) Twists: 4.8 Twists/foot (min) 3) Jacket 0.032" Wall, Nom.,PVC 0.230 (0.243 Max.) a) Color(s) SLATE b) Print ALPHA WIRE-* P/N 1178C 8C 22 AWG
75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX
CSA TYPE CMG FT4 ROHS
* = Factory Code
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]ProductIndustryApprovals1) UL AWM/STYLE 2576 80°C / 150 VRMS CM 75°C VW-1 2) CSA International CMG 60°C FT4 ProductEnvironmental1) EU Directive 2002/95/EC(RoHS): All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. 2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. ProductPropertiesPhysical & Mechanical Properties 1) Temperature Range -20 to 80°C 2) Bend Radius 10X Cable Diameter 3) Pull Tension 44 Lbs, Maximum Electrical Properties (For Engineering purposes only) 1) Voltage Rating 300 VRMS 2) Capacitance 33 pf/ft @1 kHz, Nominal Conductor to Conductor 3) Inductance 0.18 µH/ft, Nominal 4) Conductor DCR 16.4 Ω/1000ft @20°C, Nominal
