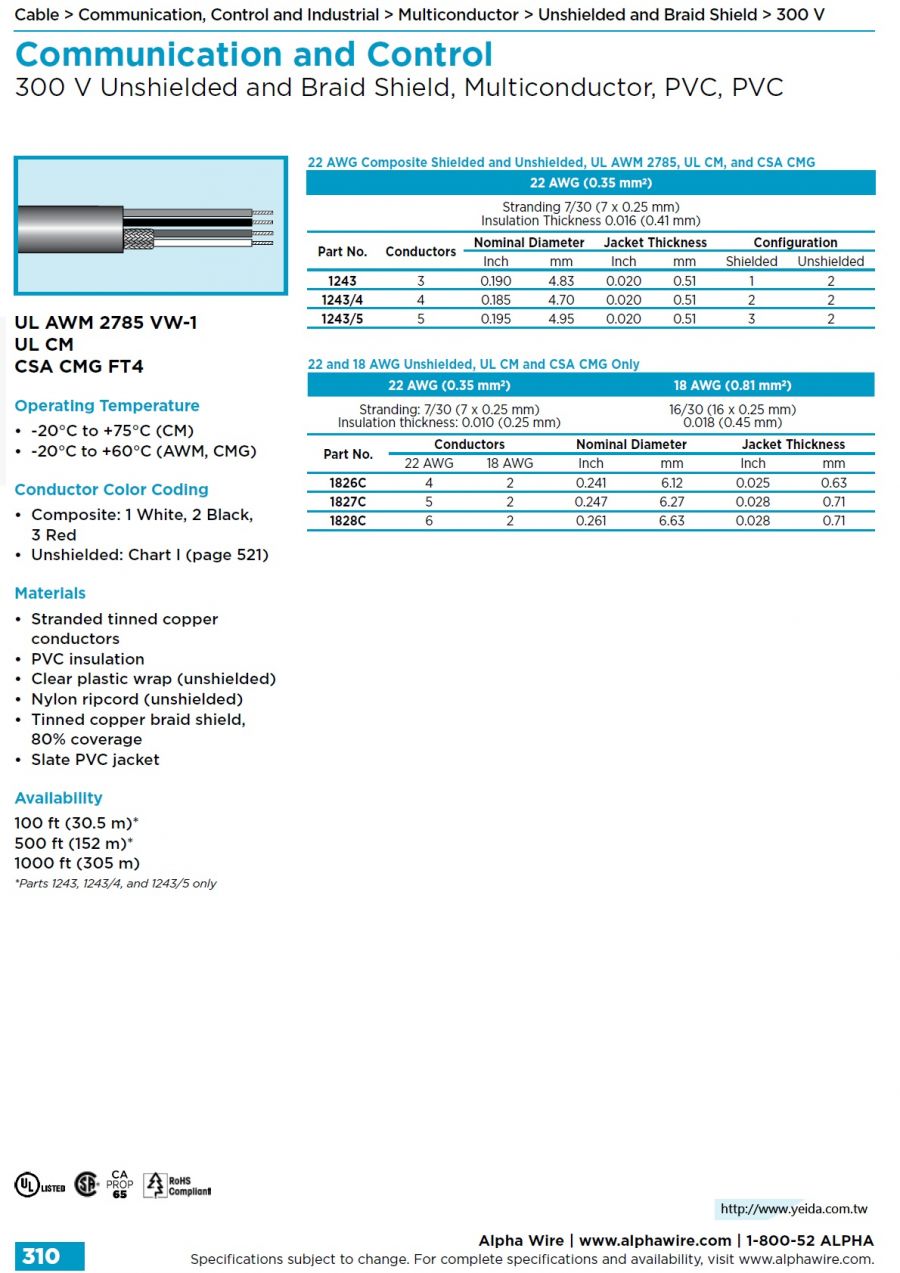

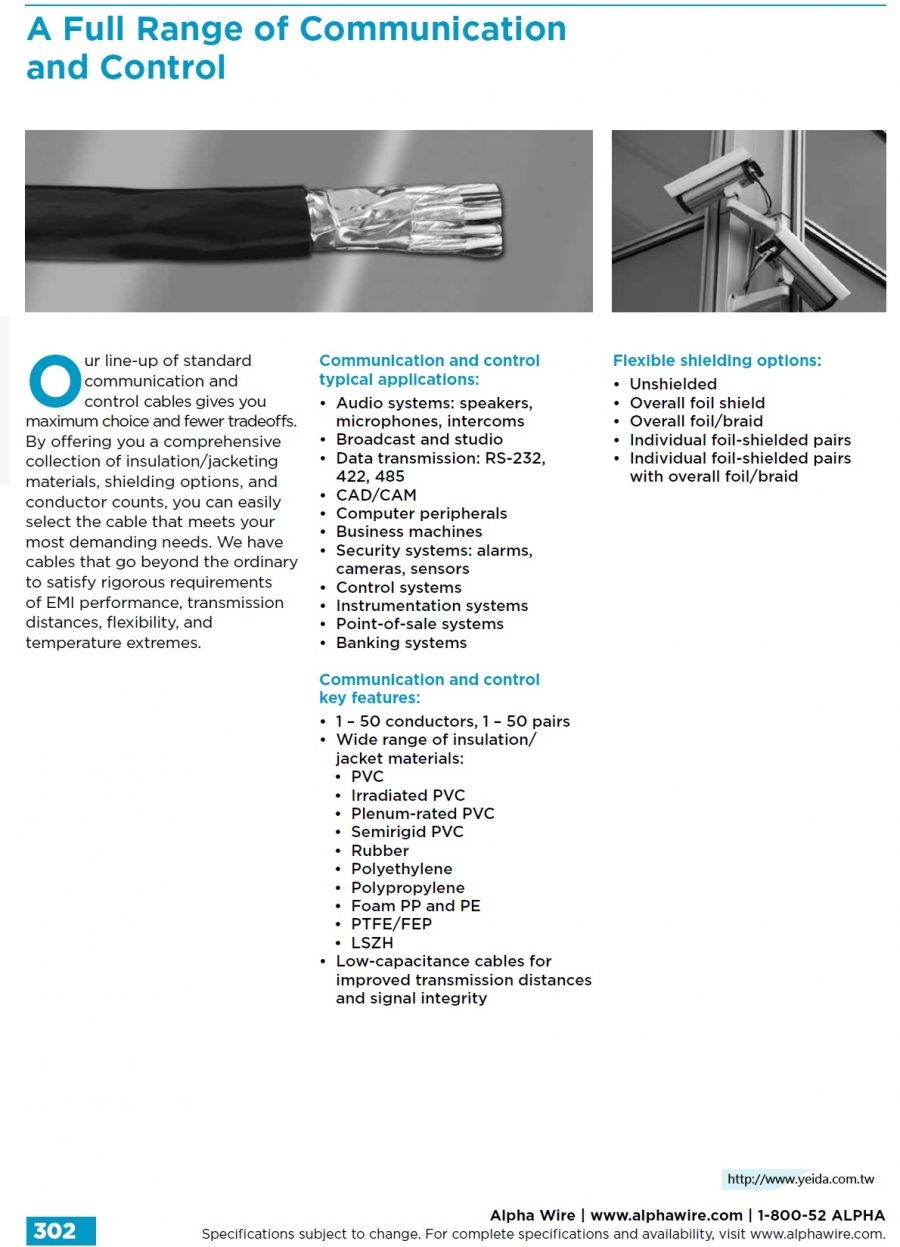

Communication and Control
300 V Unshielded and Braid Shield, Multiconductor, PVC, PVC
UL AWM 2785 VW-1
UL CM
CSA CMG FT4
Operating Temperature
• -20°C to +75°C (CM)
• -20°C to +60°C (AWM, CMG)
Conductor Color Coding
• Composite: 1 White, 2 Black, 3 Red
• Unshielded: Chart I (page 521)
Materials
• Stranded tinned copper conductors
• PVC insulation
• Clear plastic wrap (unshielded)
• Nylon ripcord (unshielded)
• Tinned copper braid shield, 80% coverage
• Slate PVC jacket
Availability
100 ft (30.5 m)*
500 ft (152 m)*
1000 ft (305 m)
*Parts 1243, 1243/4, and 1243/5 only
Part #
|
Type
|
Shielding
|
Voltage |
AWG |
# of Elements
|
Jacket Material
|
Insulation Material
|
Jacket Diameter |
|
1826C |
Composite |
UNSHIELDED |
300 |
22+18 |
6 |
PVC |
PVC |
0.241 |
CA Prop 65, CSA CMG, CSA FT4, UL CM, UL VW/1 |
|
1827C |
Composite |
UNSHIELDED |
300 |
22+18 |
7 |
PVC |
PVC |
0.247 |
CA Prop 65, CSA CMG, CSA FT4, UL CM, UL VW/1 |
|
1828C |
Composite |
UNSHIELDED |
300 |
22+18 |
8 |
PVC |
PVC |
0.261 |
CA Prop 65, CSA CMG, CSA FT4, UL CM, UL VW/1 |
|
Part #
|
Type
|
Shielding
|
Voltage |
AWG |
# of Elements
|
Jacket Material
|
Insulation Material
|
Jacket Diameter |
|
1243 |
Composite |
UNSHIELDED |
300 |
22+22 |
3 |
PVC |
PVC |
0.19 |
CA Prop 65, CSA CMG, CSA FT4, UL AWM 2785, UL CM |
|
1243/2C |
Multi-Pair |
FOIL |
300 |
22 |
2 |
PVC |
PP |
0.245 |
CA Prop 65, CSA CMG, CSA FT4, UL AWM 2717, UL CMG |
|
1243/3C |
Multi-Conductor |
FOIL |
300 |
20 |
3 |
PVC |
PE |
0.21 |
CSA CMG, CSA FT4, UL AWM 2785, UL CM |
|
