ALPHA-1174L Awg22 x 4C LSZH 300V -20 to 75°C FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL

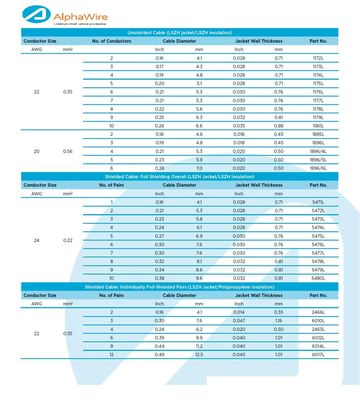

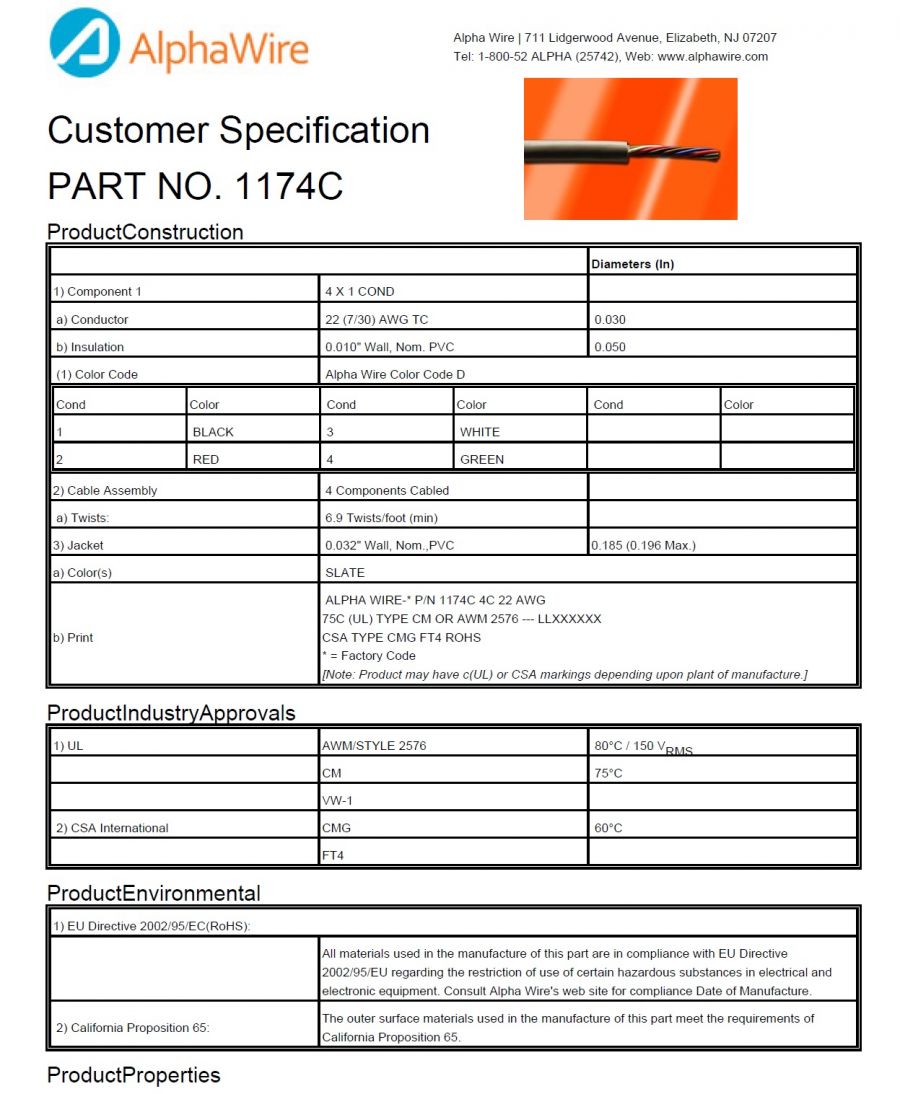

Construction

Diameters (In)

1) Component 1

4 X 1 COND

a) Conductor

22 (7/30) AWG TC

0.030

b) Insulation

0.010" Wall, Nom. Low Smoke Zero Halogen (LSZH)

0.049

(1) Color Code

Alpha Wire Color Code D

Cond	Color	Cond	Color	Cond	Color
1	BLACK	3	WHITE
2	RED	4	GREEN

2) Cable Assembly

4 Components Cabled

a) Twists:

6.9 Twists/foot (min)

3) Jacket

0.024" Wall, Nom.,Low Smoke Zero Halogen (LSZH)

0.171 (0.180 Max.)

a) Color(s)

SLATE

b) Print

ALPHA WIRE-* P/N 1174L 4C 22 AWG
EXXXXXX 75C (UL) TYPE CMG-LS OR 75C
C(UL) TYPE CMG-LS LSZH CE ROHS
* = Factory Code
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

Applicable Specifications

Environmental

Properties

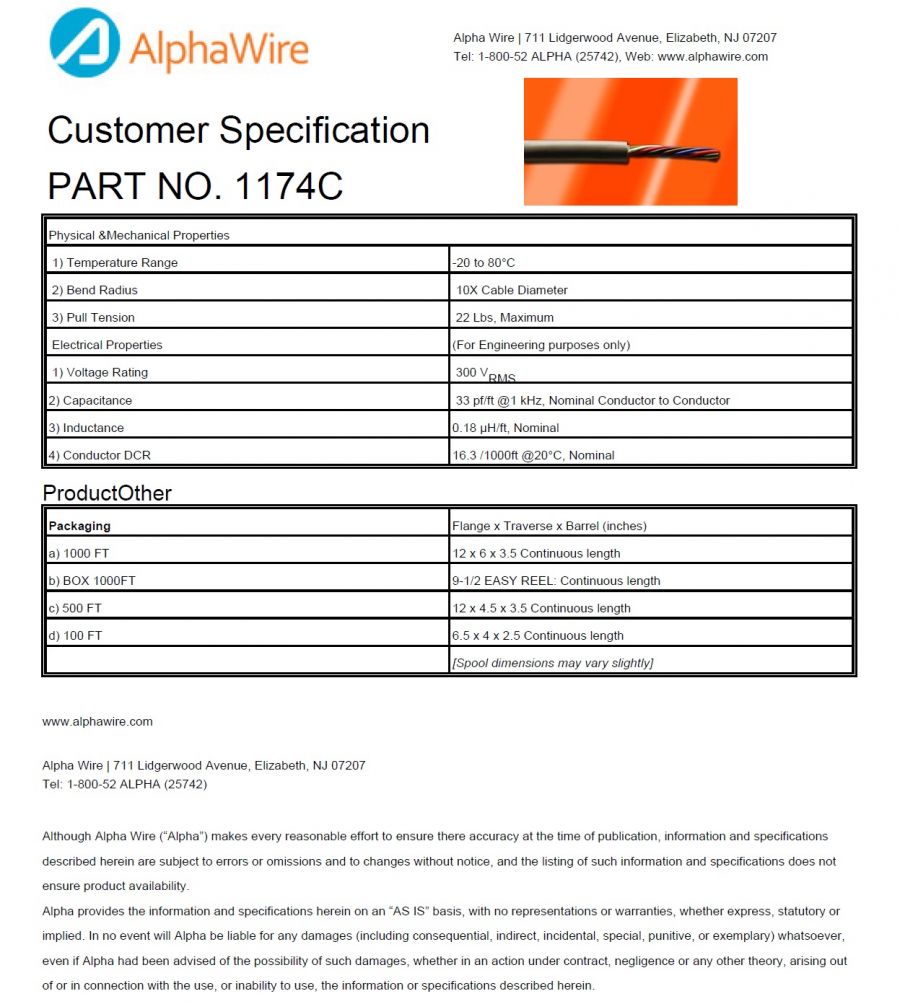

Physical & Mechanical Properties
1) Temperature Range	-20 to 75°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	22 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300 V_RMS
2) Inductance	0.18 µH/ft, Nominal
3) Conductor DCR	16.3 Ω/1000ft @20°C, Nominal

Other

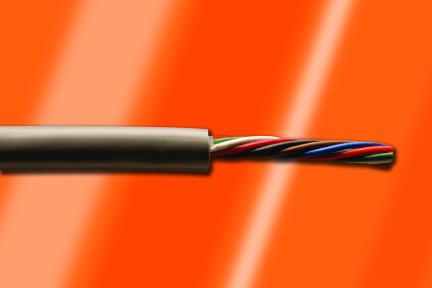

Get control with uncompromising safety

Alpha Wire’s low-smoke, zero-halogen (LSZH) communication and control cable combines LSZH-rated insulation and jackets with the rugged performance you expect from Alpha. The specially formulated LSZH material minimizes the effects from smoke and harmful corrosive gases in the event of combustion. Low smoke means easier visibility in exiting the area and reduced danger of smoke inhalation, while low toxicity means no harm to people from halogenated gases. Our LSZH cables are suited to such applications as rapid transit, industrial, commercial, and similar confined-space applications where the low-smoke cables can save lives and potentially reduce damage to electronic components.

Low-Smoke Zero-Halogen Key features:

LSZH materials for low-smoke properties and reduced toxicity
Tinned copper conductors resist corrosion
Stranded conductors for installation flexibility
Multiconductor and multipair configurations
Unshielded versions for smallest diameter
Foil shielded, overall or individual pairs, for EMI protection and improved signal integrity
Color-coded conductor insulation for easy identification

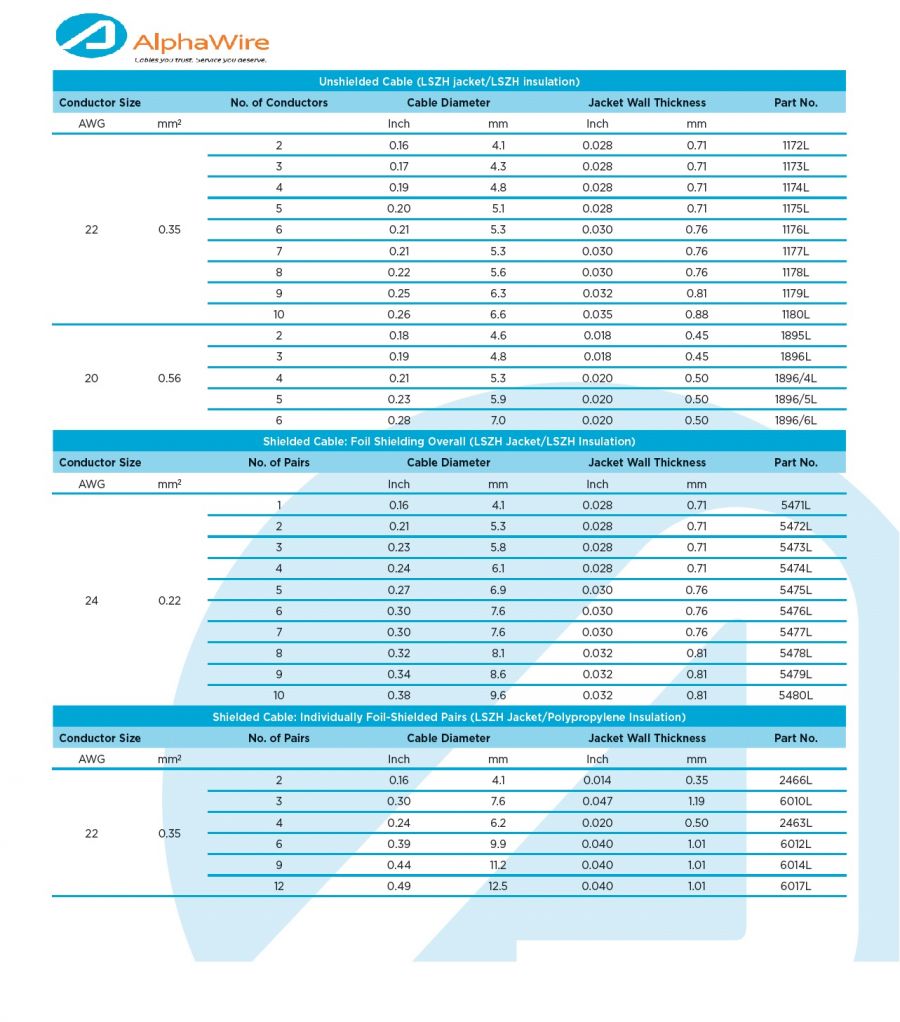

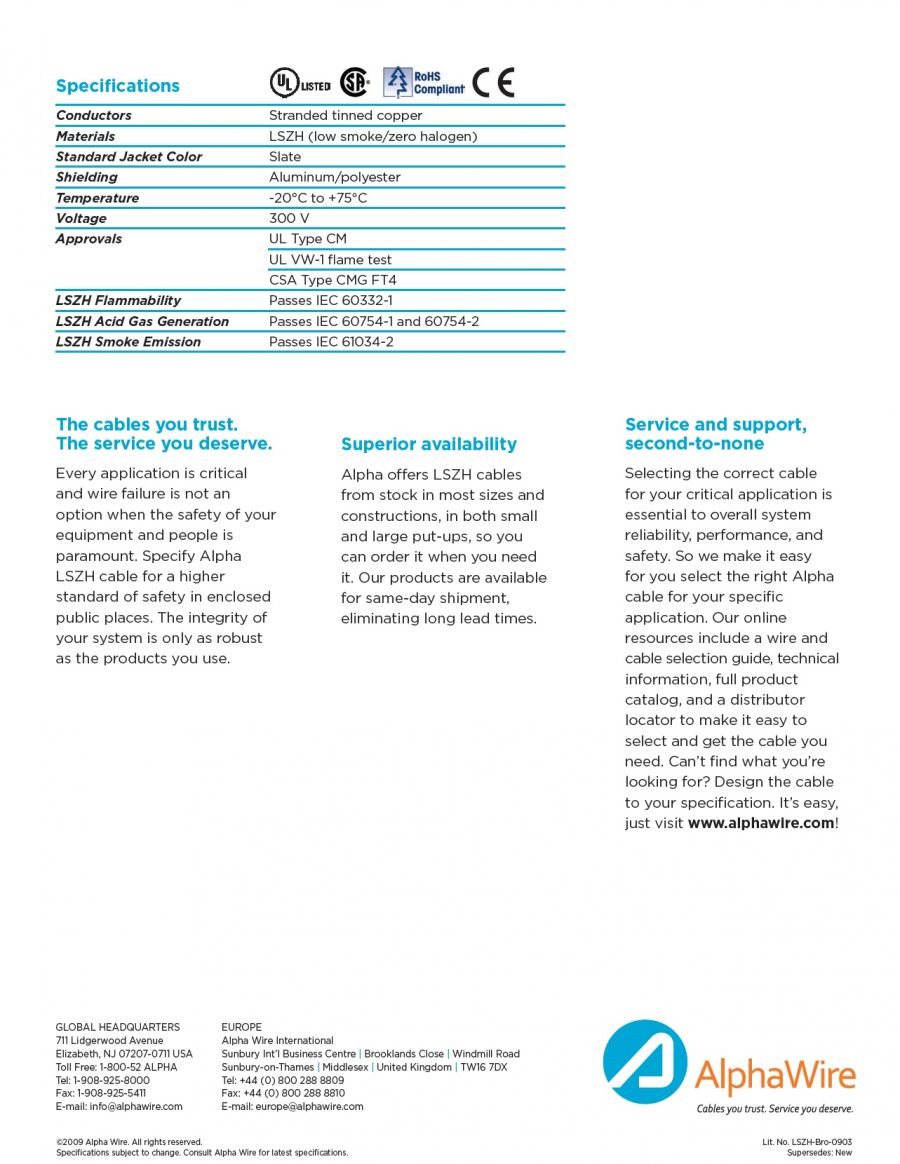

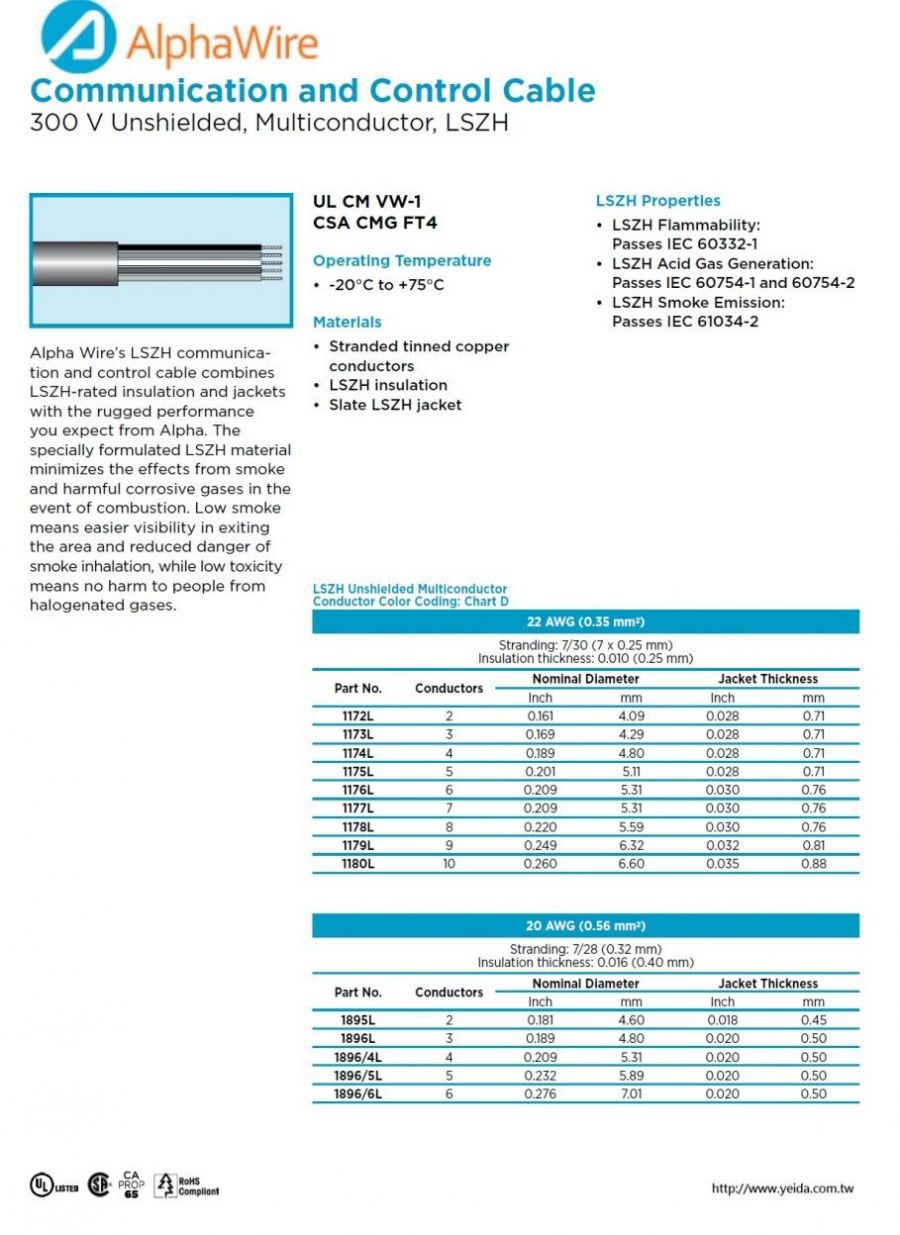

Low Smoke Zero Halogen Brochure

LSZH Product Training Presentation

Multiconductor Cable Conductor Color Codes

Multipair Cable Conductor Color Codes

EU/China ROHS CERTIFICATE OF COMPLIANCE

To Whom It May Concern:

Alpha Wire Part Number: 1174L

1174L , RoHS-Compliant Commencing With 3/1/2009 Production

This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.

Substance	Maximum Control Value
Lead	0.1% by weight (1000 ppm)
Mercury	0.1% by weight (1000 ppm)
Cadmium	0.01% by weight (100 ppm)
Hexavalent Chromium	0.1% by weight (1000 ppm )
Polybrominated Biphenyls (PBB)	0.1% by weight (1000 ppm)
Polybrominated Diphenyl Ethers (PBDE) ,
Including Deca-BDE	0.1% by weight (1000 ppm)

The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.

Authorized Signatory for the Alpha Wire Company:

Dave Watson, Director of Engineering & QA

3/10/2012
