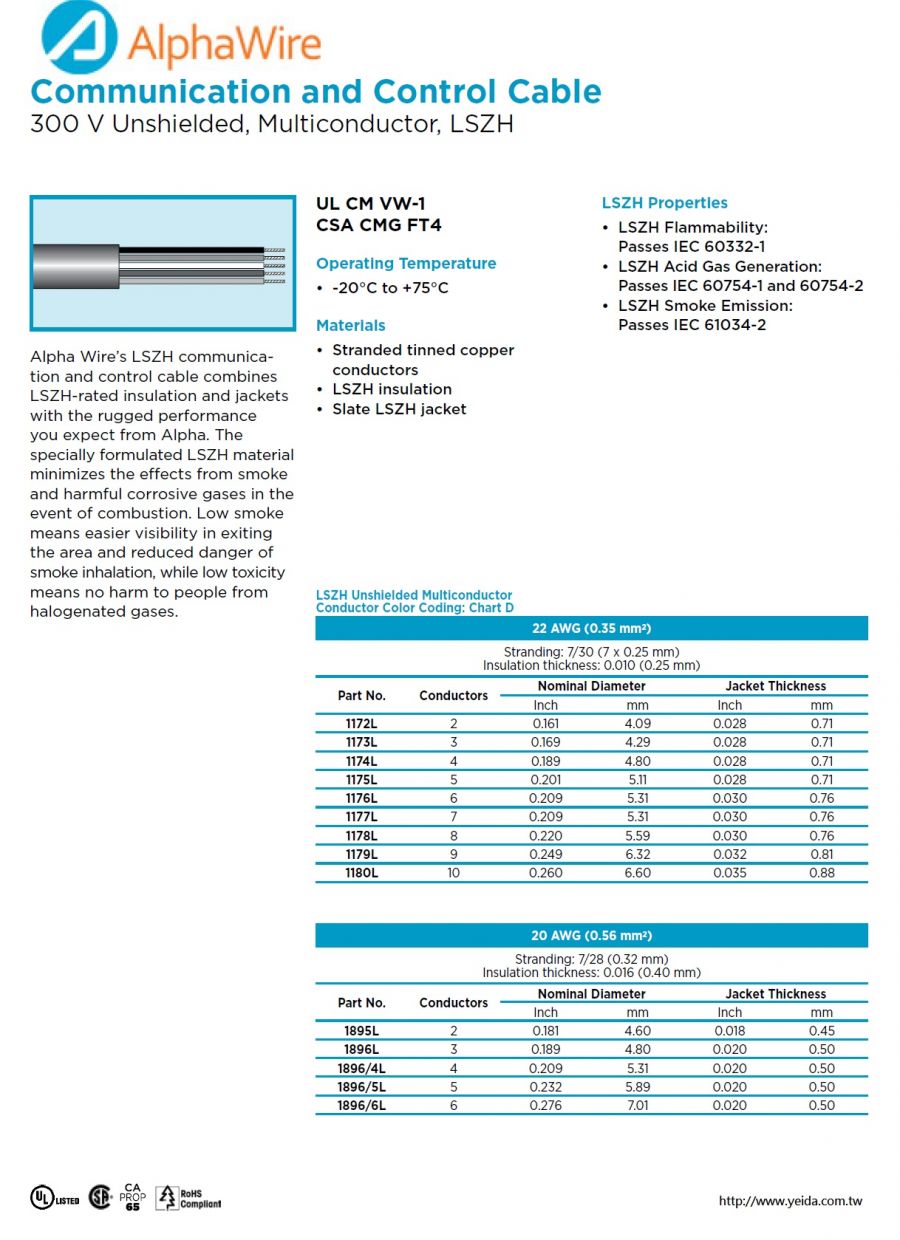

Communication and Control Cable
300 V Unshielded, Multiconductor, LSZH
Alpha Wire’s LSZH communication
and control cable combines
LSZH-rated insulation and jackets
with the rugged performance
you expect from Alpha. The
specially formulated LSZH material
minimizes the effects from smoke
and harmful corrosive gases in the
event of combustion. Low smoke
means easier visibility in exiting
the area and reduced danger of
smoke inhalation, while low toxicity
means no harm to people from
halogenated gases.
LSZH Unshielded Multiconductor
　

22 AWG (0.35 mm2)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)

20 AWG (0.56 mm2)
Stranding: 7/28 (0.32 mm)
Insulation thickness: 0.016 (0.40 mm)

UL CM VW-1
CSA CMG FT4
Operating Temperature
• -20°C to +75°C
Materials
• Stranded tinned copper
conductors
• LSZH insulation
• Slate LSZH jacket
LSZH Properties
• LSZH Flammability:
Passes IEC 60332-1
• LSZH Acid Gas Generation:
Passes IEC 60754-1 and 60754-2
• LSZH Smoke Emission:
Passes IEC 61034-2
