ALPHA-Awg 24, 22 300 V Foil Shielded, Multipair, LSZH Communication and Control Cable 低煙無毒對型通信控制電纜

ALPHA-5471L

UL CM VW-1 CSA CMG FT4
Operating Temperature
• -20°C to +75°C
Materials
• Stranded tinned copper conductors
• LSZH insulation
• Aluminum/polyester shielding, with 25% overlap min. Foil facing inward
Tinned copper drain wire sized the same as the conductors
• Slate LSZH jacket

★★★★商品說明★★★★

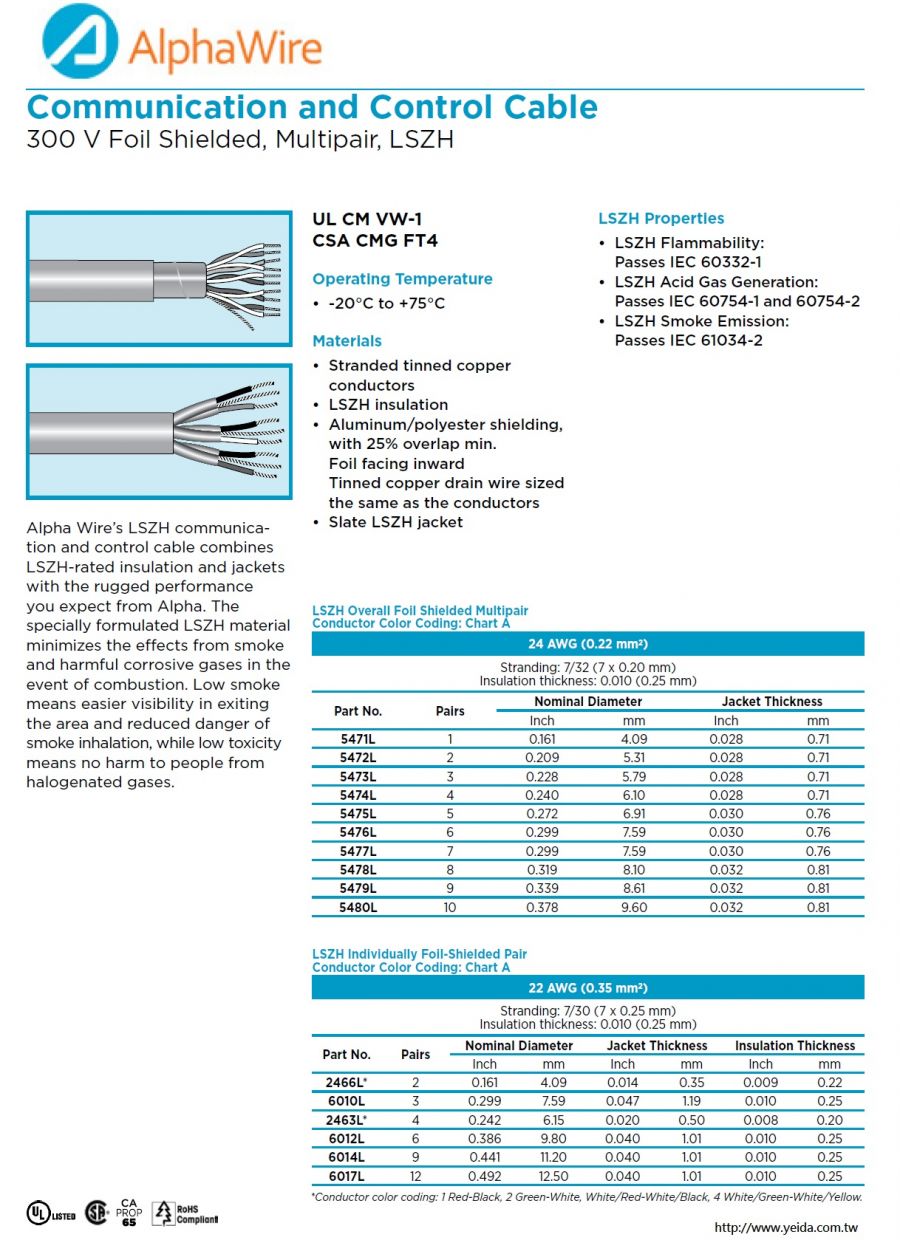

Communication and Control Cable 300 V Foil Shielded, Multipair, LSZH

Alpha Wire’s LSZH communication and control cable combines
LSZH-rated insulation and jackets with the rugged performance
you expect from Alpha. The specially formulated LSZH material
minimizes the effects from smoke and harmful corrosive gases in the
event of combustion. Low smoke means easier visibility in exiting
the area and reduced danger of smoke inhalation, while low toxicity
means no harm to people from halogenated gases.

UL CM VW-1
CSA CMG FT4
Operating Temperature
• -20°C to +75°C
Materials
• Stranded tinned copper conductors
• LSZH insulation
• Aluminum/polyester shielding, with 25% overlap min. Foil facing inward
Tinned copper drain wire sized the same as the conductors
• Slate LSZH jacket
LSZH Properties
• LSZH Flammability: Passes IEC 60332-1
• LSZH Acid Gas Generation: Passes IEC 60754-1 and 60754-2
• LSZH Smoke Emission: Passes IEC 61034-2

Type	Shielding	Voltage	AWG	# of Elements	Jacket Material	Insulation Material	Jacket Diameter
2463L	Multi-Pair	Ind Foil Shield	300	22	4	LSZH	LSZH	0.3	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL - VW-1
2466L	Multi-Pair	Ind Foil Shield	300	22	2	LSZH	LSZH	0.238	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5471L	Multi-Pair	Foil Shield	300	24	1	LSZH	LSZH	0.142	CSA - CMG, CSA - FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5472L	Multi-Pair	Foil Shield	300	24	2	LSZH	LSZH	0.198	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5473L	Multi-Pair	Foil Shield	300	24	3	LSZH	LSZH	0.21	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5474L	Multi-Pair	Foil Shield	300	24	4	LSZH	LSZH	0.229	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5475L	Multi-Pair	Foil Shield	300	24	5	LSZH	LSZH	0.25	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5476L	Multi-Pair	Foil Shield	300	24	6	LSZH	LSZH	0.272	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5477L	Multi-Pair	Foil Shield	300	24	7	LSZH	LSZH	0.272	CSA CMG, CSA FT1, CSA FT2, CSA FT3, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5478L	Multi-Pair	Foil Shield	300	24	8	LSZH	LSZH	0.294	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5479L	Multi-Pair	Foil Shield	300	24	9	LSZH	LSZH	0.317	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
5480L	Multi-Pair	Foil Shield	300	24	10	LSZH	LSZH	0.343	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
6010L	Multi-Pair	Ind Foil Shield	300V	22	3	LSZH	LSZH	0.252	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
6012L	Multi-Pair	Ind Foil Shield	300	22	6	LSZH	LSZH	0.332	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL - VW-1
6014L	Multi-Pair	Ind Foil Shield	300	22	9	LSZH	LSZH	0.39	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
6017L	Multi-Pair	Ind Foil Shield	300	22	12	LSZH	LSZH	0.437	CSA CMG, CSA FT4, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, UL - CMG, UL VW/1
