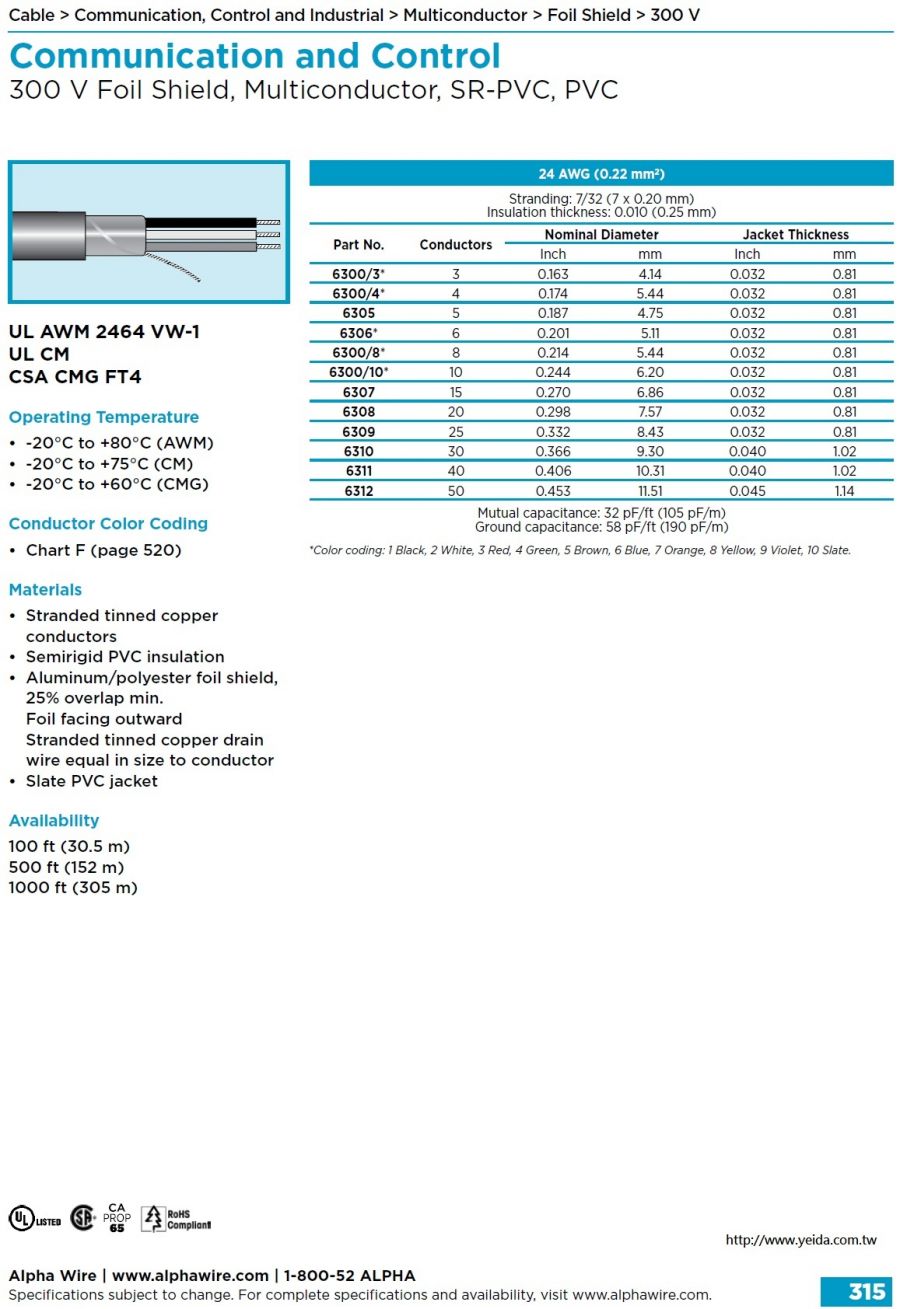

ALPHA-Communication and Control (AWG 24) 300 V Foil Shield, Multiconductor, SR-PVC/PVC UL 2464 CMG FT4 多芯鋁箔隔離通信控制電纜線
Communication and Control
300 V Foil Shield, Multiconductor, SR-PVC, PVC
UL AWM 2464 VW-1
UL CM
CSA CMG FT4
Operating Temperature
• -20°C to +80°C (AWM)
• -20°C to +75°C (CM)
• -20°C to +60°C (CMG) Conductor Color Coding
• Chart F (page 520) Materials
• Stranded tinned copper conductors
• Semirigid PVC insulation
• Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
Stranded tinned copper drain wire equal in size to conductor
• Slate PVC jacket Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
