    首頁 > > 8. ALPHA-UL 600V Shielding Communication Control Cable 600V隔離通信、控制电缆

    ALPHA-Communication and Control MIL-DTL-16878/4 (Type E) NEMA HP3(AWG 18, 16, 14, 12) 600 V Multiconductor, TFE, Fiberglass Braid Shield 軍規鐵氟龍絕緣玻璃絲編織外被多芯型銅網隔離通信控制電纜線
    看原圖
    		ALPHA-2819



    商品編號: ALPHA-2819

    ALPHA-Communication and Control MIL-DTL-16878/4 (Type E) NEMA HP3(AWG 18, 16, 14, 12) 600 V Multiconductor, TFE, Fiberglass Braid Shield 軍規鐵氟龍絕緣玻璃絲編織外被多芯型銅網隔離通信控制電纜線

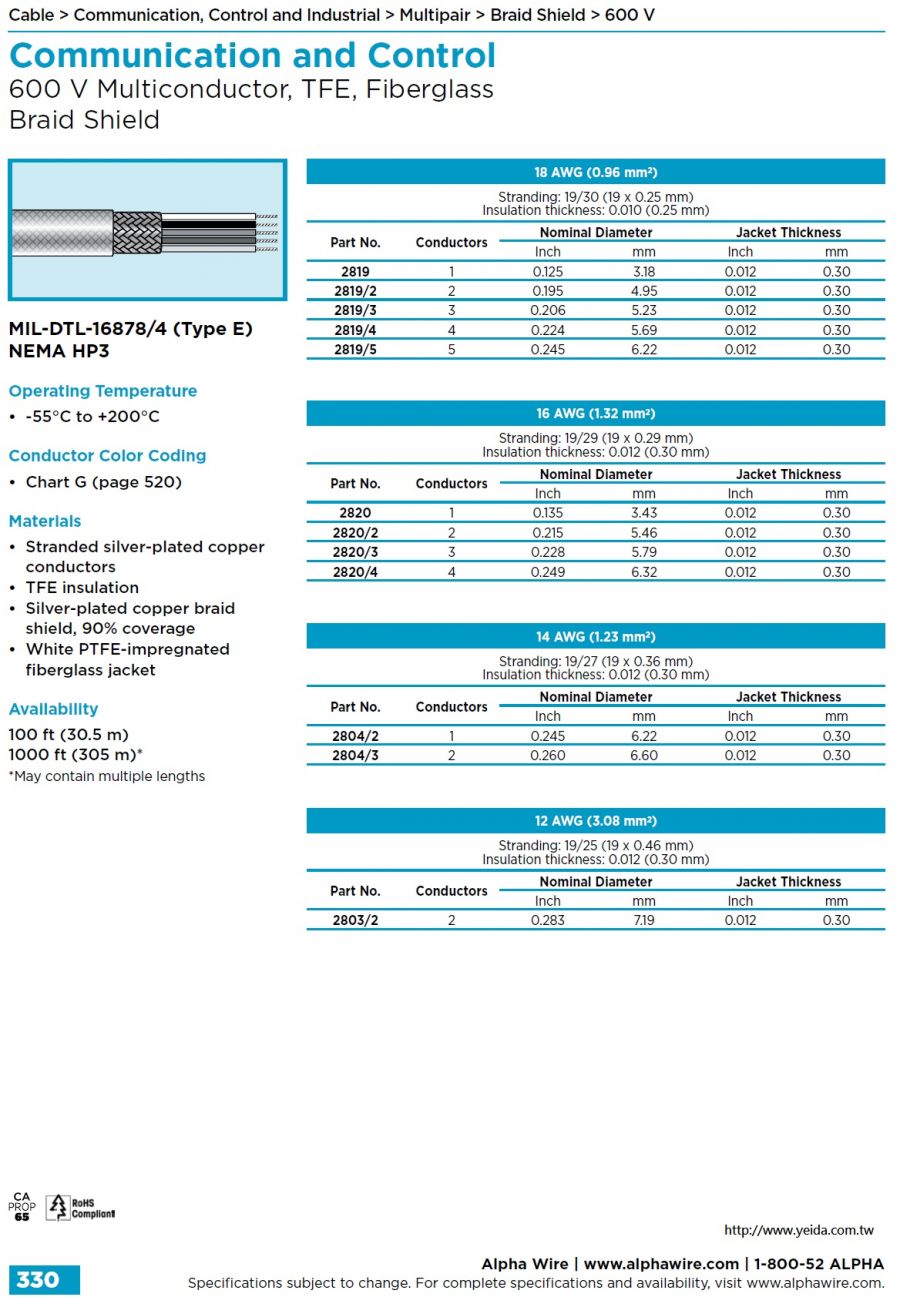

    Communication and Control
    600 V Multiconductor, TFE, Fiberglass
    Braid Shield
    MIL-DTL-16878/4 (Type E)
    NEMA HP3


    Operating Temperature
    • -55°C to +200°C
    Conductor Color Coding
    • Chart G (page 520)
    Materials
    • Stranded silver-plated copper conductors
    • TFE insulation
    • Silver-plated copper braid shield, 90% coverage
    • White PTFE-impregnated fiberglass jacket
    Availability
    100 ft (30.5 m)
    1000 ft (305 m)*
    *May contain multiple lengths



    ★★★★商品說明★★★★

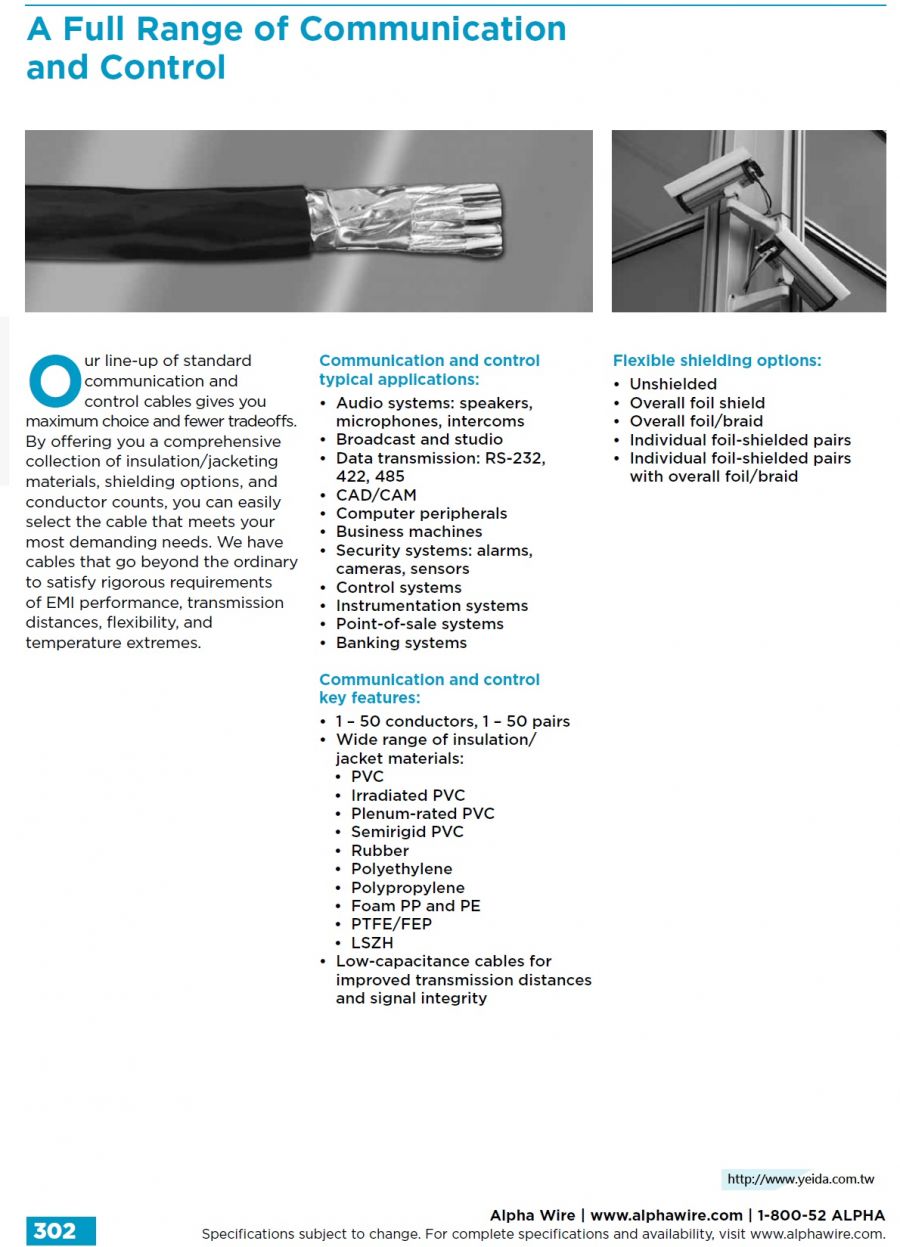

    Communication & Control

    　

    Get control of your communication and control applications

    Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

    Communication and Control Typical applications:

    • Audio systems: speakers, microphones, intercoms
    • Broadcast and studio
    • Data transmission: RS-232, 422, 485
    • CAD/CAM
    • Computer peripherals
    • Business machines
    • Security systems: alarms, cameras, sensors
    • Control systems
    • Instrumentation systems
    • Point-of-sale systems
    • Banking systems

    Flexible shielding options:

    • Unshielded
    • Overall foil shield
    • Overall foil/braid
    • Individual foil-shielded pairs
    • Individual foil-shielded pairs with overall foil/braid

    Low capacitance cables for improved transmission distances and signal integrity.

    　

    通信和控制应用，尽在掌握之中

    我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

    通信和控制电缆的典型应用：

    • 音频系统：扬声器、麦克风、对讲机
    • 广播和播音室
    • 数据传输RS-232, 422, 485
    • 计算机辅助设计/计算机辅助制造
    • 计算机外设
    • 商业机器
    • 安防系统：警报器、摄像头、传感器
    • 控制系统
    • 测试仪表系统
    • 销售网点系统
    • 银行系统

    灵活的屏蔽选项：

    • 非屏蔽电缆
    • 整体铝箔屏蔽
    • 整体铝箔/编织屏蔽
    • 单独铝箔屏蔽线对
    • 单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

    低电容电缆，延长了传输距离，提高了信号完整性。


    Part # Type

    　

    		 Shielding　 Voltage AWG # of Elements Jacket Material Insulation Material Jacket Diameter
    2811/2 Multi-Conductor BRAID 600 24 2 Glass Braid PTFE 0.145 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2811/3 Multi-Conductor BRAID 600 24 3 Glass Braid PTFE 0.152 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2811/4 Multi-Conductor BRAID 600 24 4 Glass Braid PTFE 0.164 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2811/5 Multi-Conductor BRAID 600 24 5 Glass Braid PTFE 0.177 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2811/7 Multi-Conductor BRAID 600 24 7 Glass Braid PTFE 0.191 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2814/2 Multi-Conductor BRAID 600 22 2 Glass Braid PTFE 0.155 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
    2814/4 Multi-Conductor BRAID 600 22 4 Glass Braid PTFE 0.176 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
    2814/6 Multi-Conductor BRAID 600 22 6 Glass Braid PTFE 0.206 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
    2817/2 Multi-Conductor BRAID 600 20 2 Glass Braid PTFE 0.171 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBGE
    2817/3 Multi-Conductor BRAID 600 20 3 Glass Braid PTFE 0.18 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBGE
    2817/4 Multi-Conductor BRAID 600 20 4 Glass Braid PTFE 0.195 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBGE
    2817/5 Multi-Conductor BRAID 600 20 5 Glass Braid PTFE 0.212 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBGE
    2817/6 Multi-Conductor BRAID 600 20 6 Glass Braid PTFE 0.23 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBGE
    2821/2 Multi-Conductor BRAID 600 24 2 PTFE PTFE 0.136 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2821/3 Multi-Conductor BRAID 600 24 3 PTFE PTFE 0.143 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2821/4 Multi-Conductor BRAID 600 24 4 PTFE PTFE 0.155 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2821/5 Multi-Conductor BRAID 600 24 5 PTFE PTFE 0.168 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2821/6 Multi-Conductor BRAID 600 24 6 PTFE PTFE 0.182 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    2824/2 Multi-Conductor BRAID 600 22 2 PTFE PTFE 0.146 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
    2824/3 Multi-Conductor BRAID 600 22 3 PTFE PTFE 0.154 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
