ALPHA-Communication and Control MIL-DTL-16878/4 (Type E) NEMA HP3-EXBEE(AWG 18, 16) 600 V Multiconductor, PTFE, PTFE Tape Braid Shield 軍規鐵氟龍多芯型銅網隔離通信控制電纜線

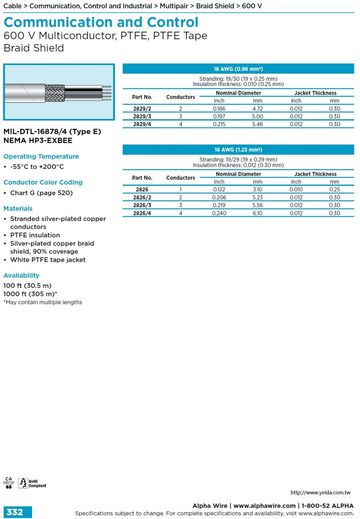

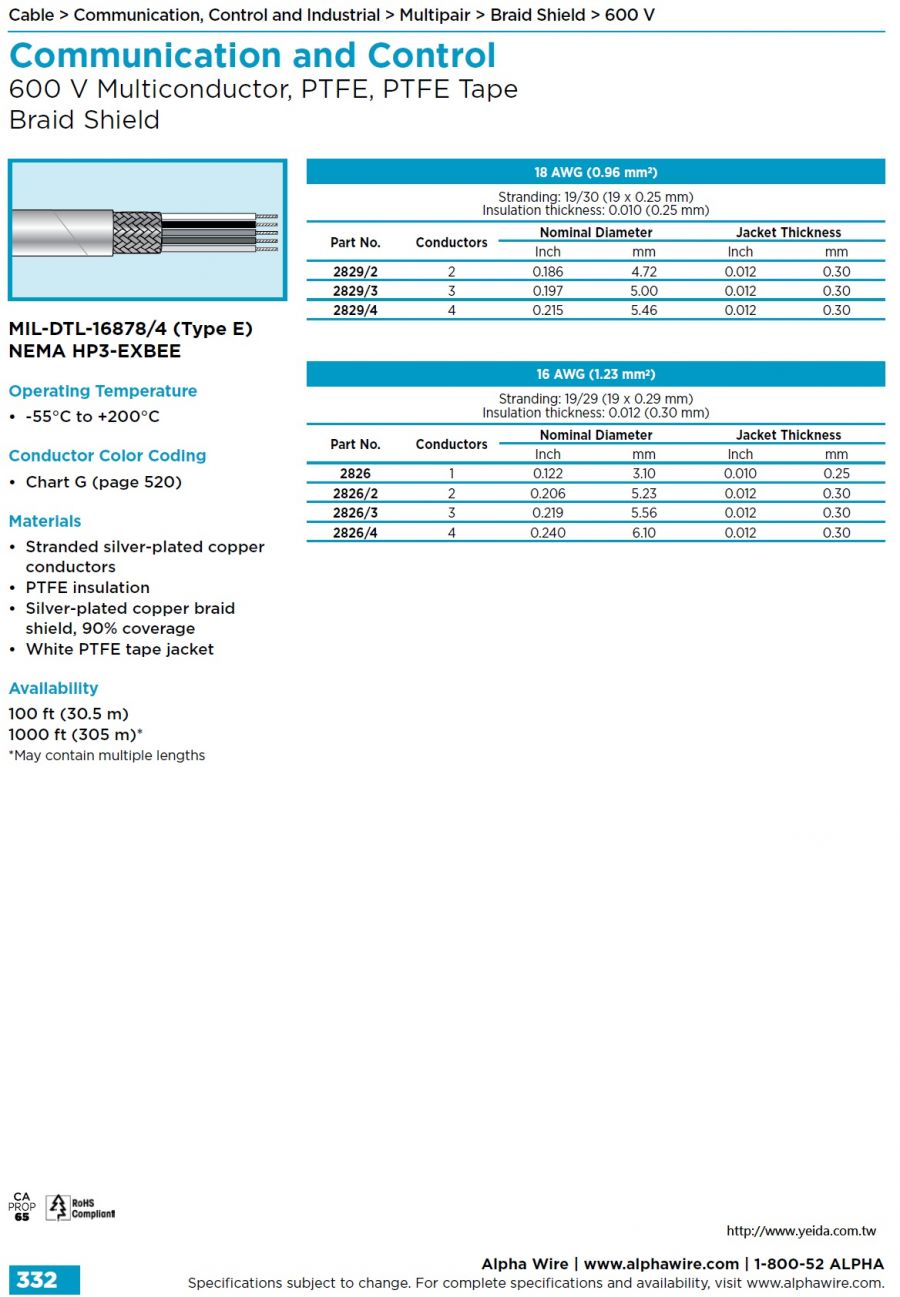

Communication and Control
600 V Multiconductor, PTFE, PTFE Tape
Braid Shield
MIL-DTL-16878/4 (Type E)
NEMA HP3-EXBEE
Operating Temperature
• -55°C to +200°C Conductor Color Coding
• Chart G (page 520) Materials
• Stranded silver-plated copper conductors
• PTFE insulation
• Silver-plated copper braid shield, 90% coverage
• White PTFE tape jacket Availability
100 ft (30.5 m)
1000 ft (305 m)*
*May contain multiple lengths
★★★★商品說明★★★★

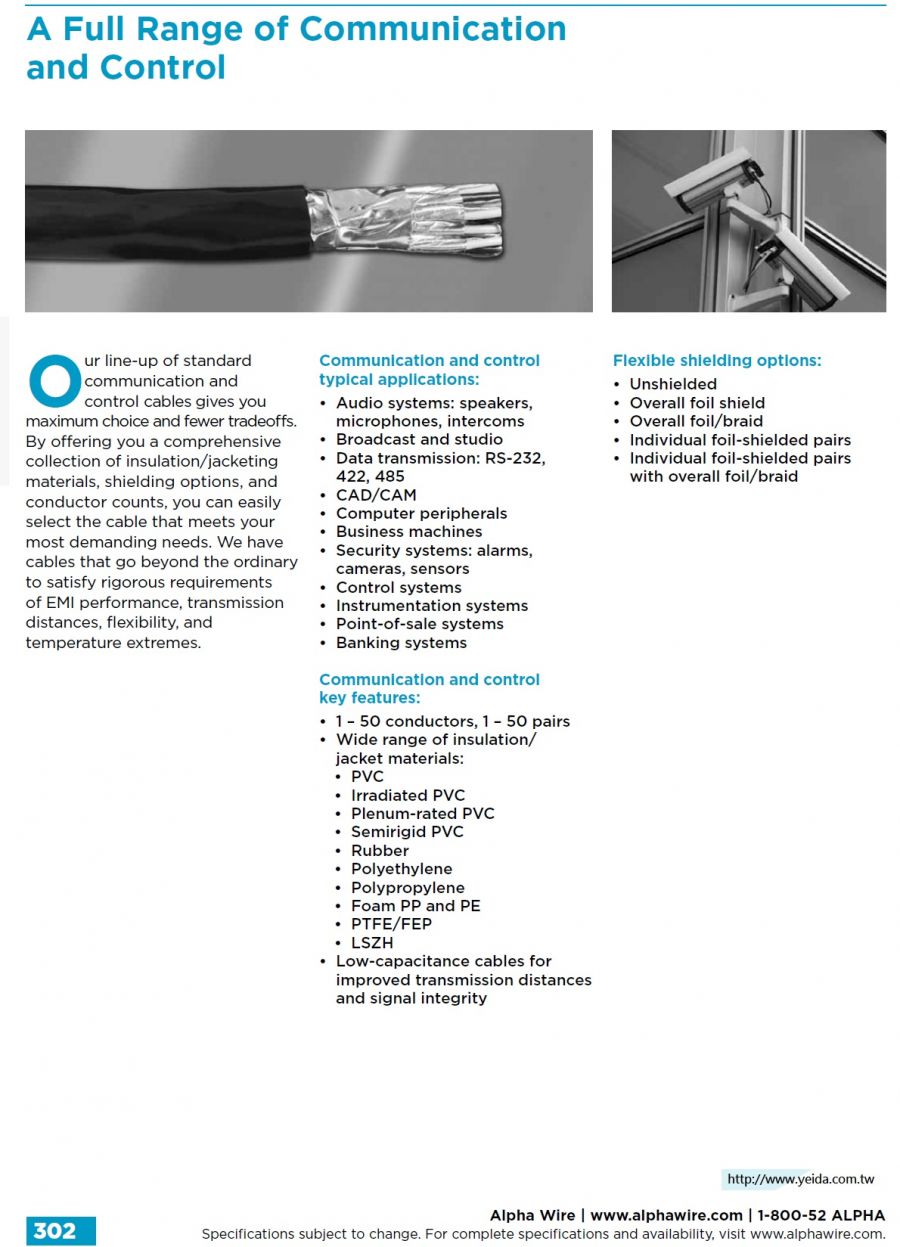

Communication & Control
Get control of your communication and control applications
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Communication and Control Typical applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Flexible shielding options:
Unshielded
Overall foil shield
Overall foil/braid
Individual foil-shielded pairs
Individual foil-shielded pairs with overall foil/braid
Low capacitance cables for improved transmission distances and signal integrity.
