ALPHA-Communication and Control (AWG 24, 22, 20, 18, 16) 300 V Foil Shield, Multiconductor, PE-PVC UL 2092, 2093, 2094 VW-1 CMG 多芯鋁箔隔離通信控制電纜線

ALPHA-2411C

商品編號: ALPHA-2411C

ALPHA-Communication and Control (AWG 24, 22, 20, 18, 16) 300 V Foil Shield, Multiconductor, PE-PVC UL 2092, 2093, 2094 VW-1 CMG 多芯鋁箔隔離通信控制電纜線

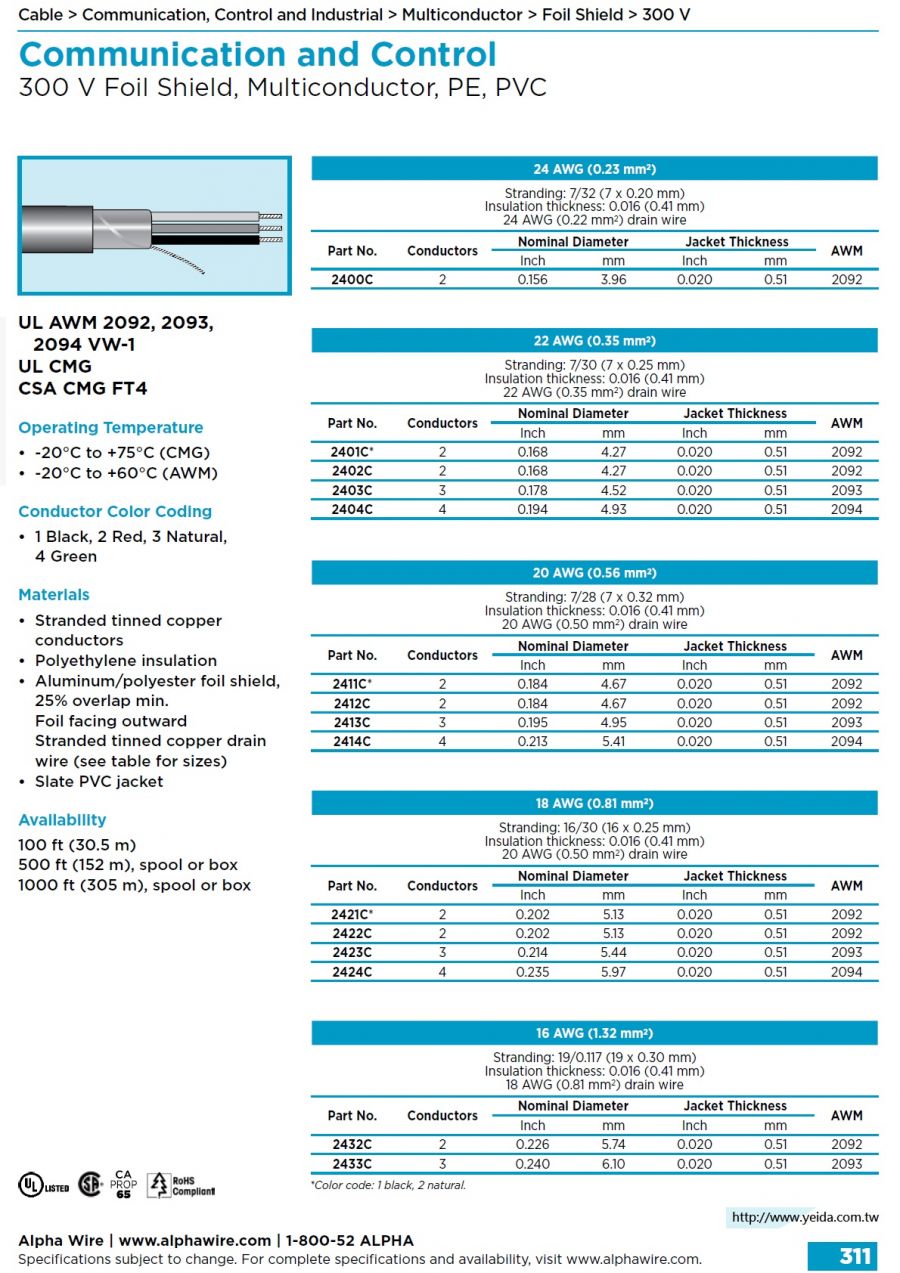

Communication and Control
300 V Foil Shield, Multiconductor, PE, PVC
UL AWM 2092, 2093,
2094 VW-1
UL CMG
CSA CMG FT4

Operating Temperature
• -20°C to +75°C (CMG)
• -20°C to +60°C (AWM)
Conductor Color Coding
• 1 Black, 2 Red, 3 Natural, 4 Green
Materials
• Stranded tinned copper conductors
• Polyethylene insulation
• Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
Stranded tinned copper drain wire (see table for sizes)
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m), spool or box
1000 ft (305 m), spool or box

★★★★商品說明★★★★

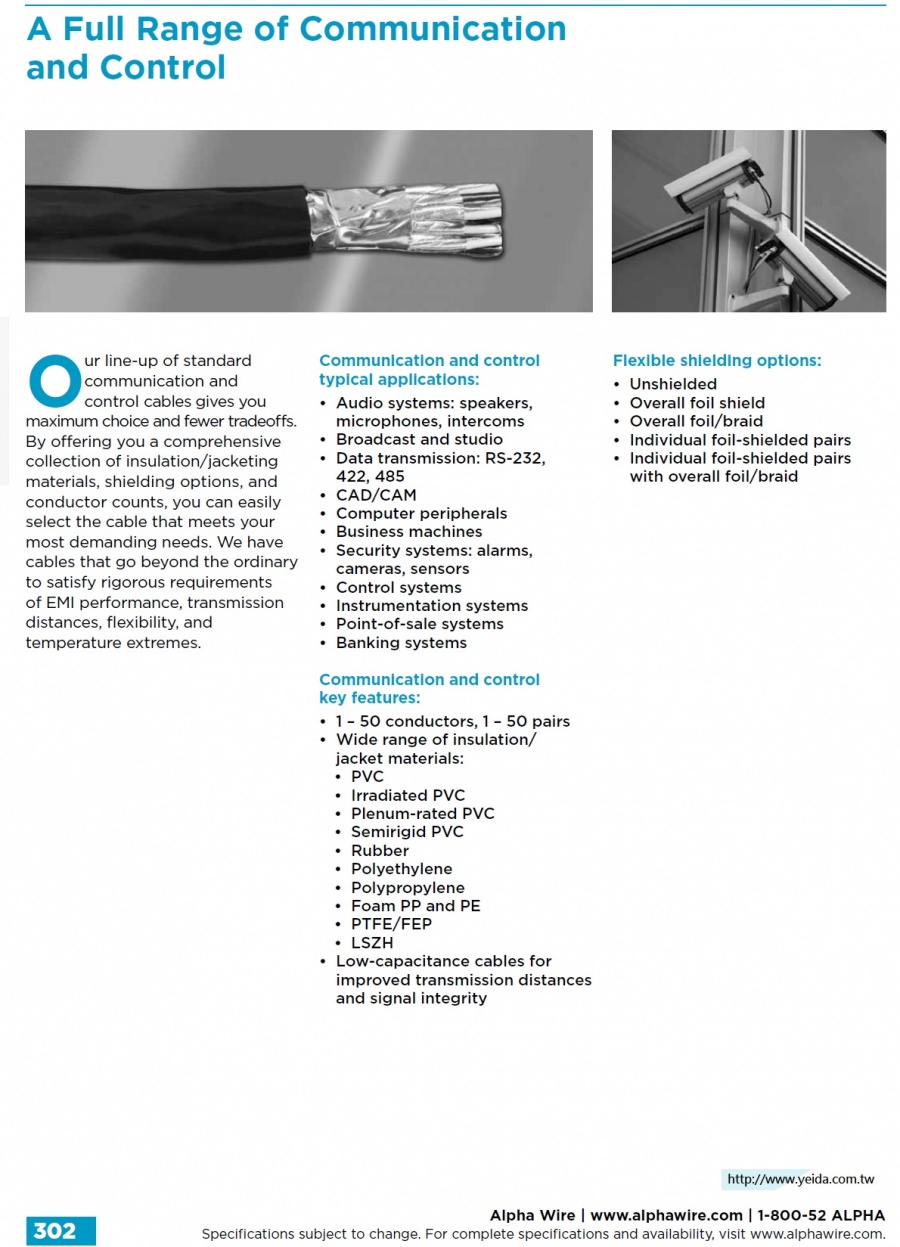

Communication & Control

Get control of your communication and control applications

Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

Communication and Control Typical applications:

Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Flexible shielding options:

Unshielded
Overall foil shield
Overall foil/braid
Individual foil-shielded pairs
Individual foil-shielded pairs with overall foil/braid

Low capacitance cables for improved transmission distances and signal integrity.

通信和控制应用，尽在掌握之中

我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

通信和控制电缆的典型应用：

音频系统：扬声器、麦克风、对讲机
广播和播音室
数据传输RS-232, 422, 485
计算机辅助设计/计算机辅助制造
计算机外设
商业机器
安防系统：警报器、摄像头、传感器
控制系统
测试仪表系统
销售网点系统
银行系统

灵活的屏蔽选项：

非屏蔽电缆
整体铝箔屏蔽
整体铝箔/编织屏蔽
单独铝箔屏蔽线对
单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

低电容电缆，延长了传输距离，提高了信号完整性。

Type	Shielding	Voltage	AWG	# of Elements	Jacket Material	Insulation Material	Jacket Diameter
1243/3C	Multi-Conductor	FOIL	300	20	3	PVC	PE	0.21	CSA CMG, CSA FT4, UL AWM 2785, UL CM
2400C	Multi-Conductor	FOIL	300	24	2	PVC	PE	0.156	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
2401C	Multi-Conductor	FOIL	300	22	2	PVC	PE	0.168	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
2402C	Multi-Conductor	FOIL	300	22	2	PVC	PE	0.168	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
2403C	Multi-Conductor	FOIL	300	22	3	PVC	PE	0.178	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
2404C	Multi-Conductor	FOIL	300	22	4	PVC	PE	0.194	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1
2411C	Multi-Conductor	FOIL	300	20	2	PVC	PE	0.184	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CM, UL VW/1
2412C	Multi-Conductor	FOIL	300	20	2	PVC	PE	0.184	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
2413C	Multi-Conductor	FOIL	300	20	3	PVC	PE	0.195	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
2414C	Multi-Conductor	FOIL	300	20	4	PVC	PE	0.213	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1
2421C	Multi-Conductor	FOIL	300	18	2	PVC	PE	0.202	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
2422C	Multi-Conductor	FOIL	300	18	2	PVC	PE	0.202	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
2423C	Multi-Conductor	FOIL	300	18	3	PVC	PE	0.214	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
2424C	Multi-Conductor	FOIL	300	18	4	PVC	PE	0.235	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2094, UL CMG, UL VW/1
2432C	Multi-Conductor	FOIL	300	16	2	PVC	PE	0.226	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2092, UL CMG, UL VW/1
2433C	Multi-Conductor	FOIL	300	16	3	PVC	PE	0.24	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2093, UL CMG, UL VW/1
