    ALPHA-PBM0001 Awg 1/0 600V 105度C SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, 1284, UL OIL RES I Battery Wire車船電池用電線
    看原圖
    		ALPHA-PBM0001



    商品編號: ALPHA-PBM0001

    ALPHA-PBM0001 Awg 1/0 600V 105度C SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, 1284, UL OIL RES I Battery Wire車船電池用電線

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    PBM0001 600 1/0 1064/30 0.08 0.566 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1

    每一根 Dearborn 船用线的设计和构造都能在恶劣的海上环境中提供数年的可靠服务。无论您是在建造新的游艇或商业船舶，还是在维护现有船舶，我们的船用产品都能满足您最严格的要求

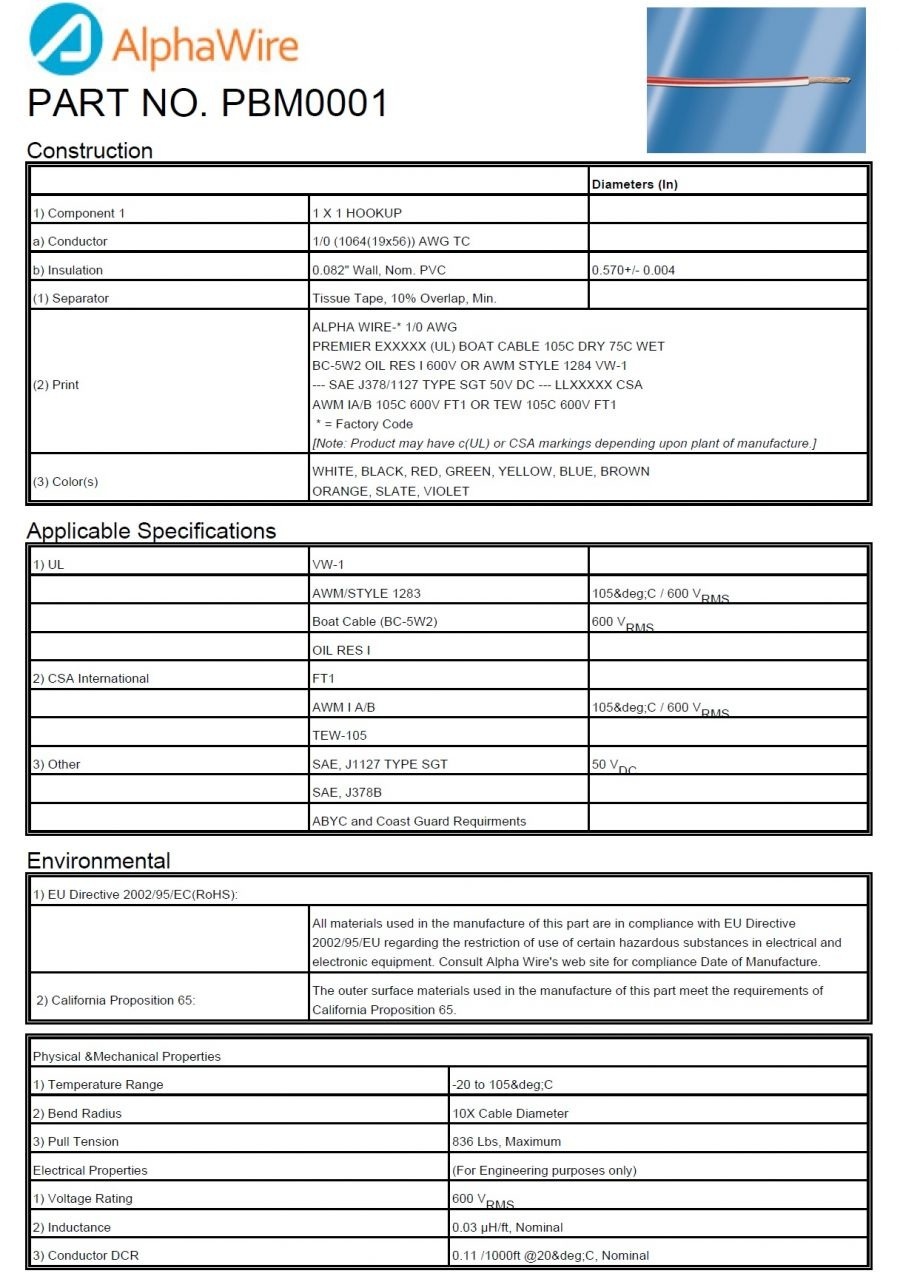

    Construction
    　 Diameters (In)
    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 1/0 (1064(19x56)) AWG TC 　
    b) Insulation 0.082" Wall, Nom. PVC 0.570+/- 0.004
    (1) Separator Tissue Tape, 10% Overlap, Min. 　
    (2) Print ALPHA WIRE-* 1/0 AWG
    PREMIER EXXXXX (UL) BOAT CABLE 105C DRY 75C WET
    BC-5W2 OIL RES I 600V OR AWM STYLE 1284 VW-1
    --- SAE J378/1127 TYPE SGT 50V DC --- LLXXXXX CSA
    AWM IA/B 105C 600V FT1 OR TEW 105C 600V FT1
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    (3) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET
    Applicable Specifications
    1) UL VW-1 　
    　 AWM/STYLE 1283 105°C / 600 VRMS
    　 Boat Cable (BC-5W2) 600 VRMS
    　 OIL RES I 　
    2) CSA International FT1 　
    　 AWM I A/B 105°C / 600 VRMS
    　 TEW-105 　
    3) Other SAE, J1127 TYPE SGT 50 VDC
    　 SAE, J378B 　
    　 ABYC and Coast Guard Requirments 　
    Environmental

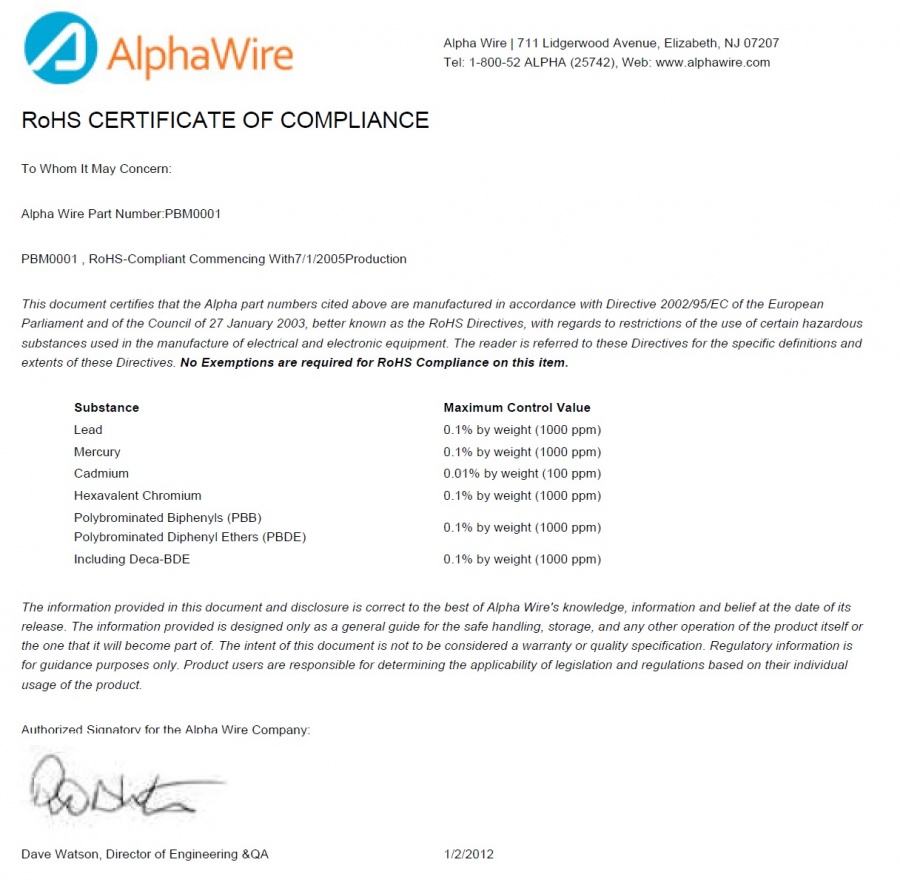

    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -20 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 836 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Inductance 0.03 µH/ft, Nominal
    3) Conductor DCR 0.11 Ω/1000ft @20°C, Nominal
    Other
    1) Packaging
    a) 1000 FT 　
    b) 500 FT 　
    c) 250 FT 　
    d) 100 FT

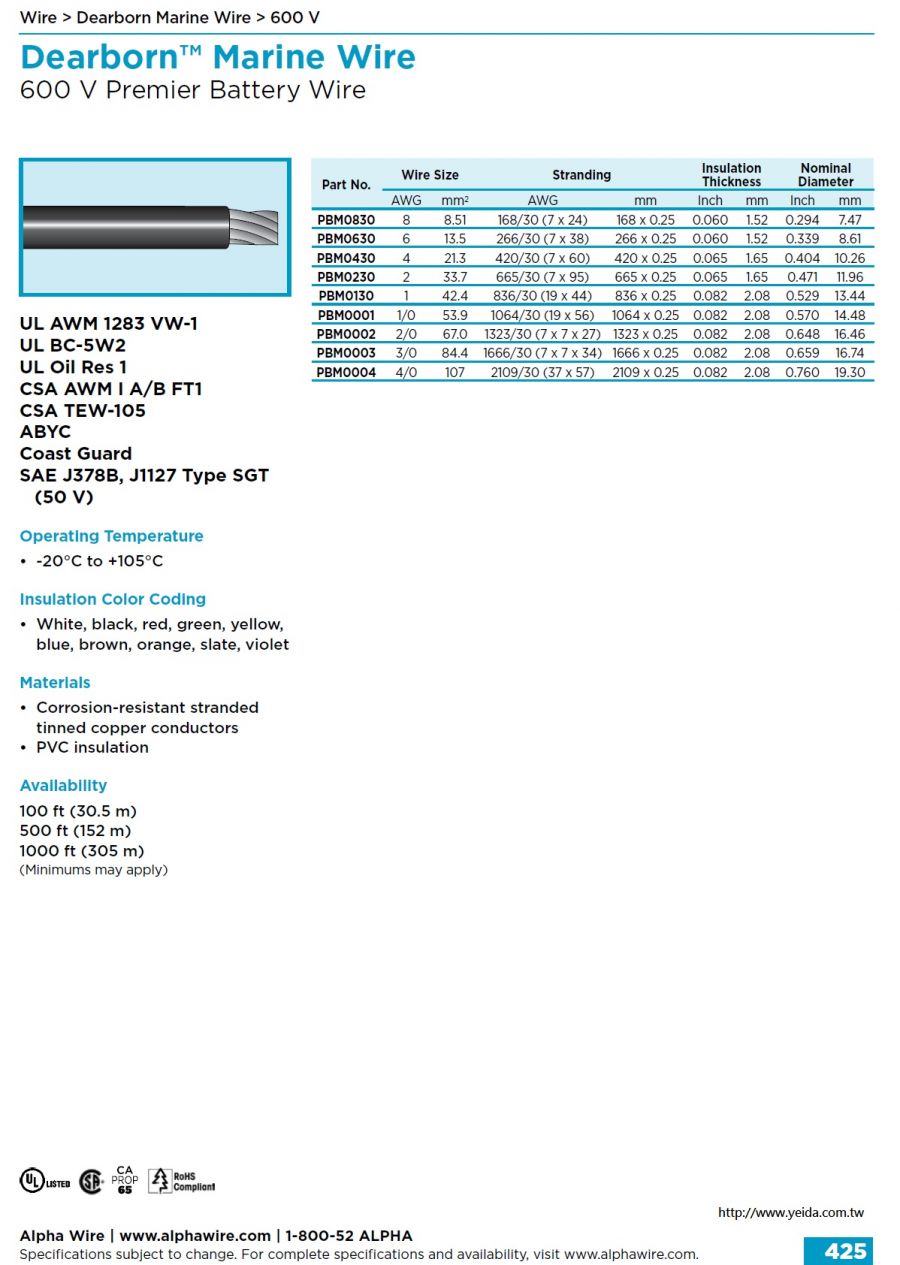

    　 Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    PBM0001 600 1/0 1064/30 0.08 0.566 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0002 600 2/0 1323/30 0.08 0.644 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0003 600 3/0 1666/30 0.08 0.655 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0004 600 4/0 2107/30 0.082 0.76 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0130 600 1 836/30 0.08 0.525 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0230 600 2 665/30 0.065 0.471 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL OIL RES I, UL VW-1
    PBM0430 600 4 420/30 0.065 0.396 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0630 600 6 266/30 0.063 0.342 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, UL AWM 1283, UL OIL RES I, UL VW-1
    PBM0830 600 8 168/30 0.06 0.299 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PGM0449 600 4 49/.0292 0.06 0.386 PVC SAE J1128, UL VW-1
    PGM0649 600 6 49/.0231 0.06 0.328 PVC SAE J1128, UL VW-1
    PGM0849 600 8 49/.0184 0.06 0.286 PVC SAE J1128, UL VW-1
    PPM0830 600 8 168/30 0.048 0.284 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1030 600 10 105/30 0.031 0.18 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1230 600 12 65/30 0.031 0.155 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1430 600 14 41/30 0.031 0.136 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1630 600 16 26/30 0.0315 0.122 PVC CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL - Boat Cable (BC-5W2), UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1830 600 18 16/30 0.031 0.109 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PWM0619 50 6 19/19 0.043 0.337 PVC SAE J1128 Type GPT, SAE J378B
    PWM0819 50 8 19/21 0.037 0.216 PVC SAE J1128 Type GPT, SAE J378B
