    ALPHA-PGM0449 Awg 4 600V 105度C SAE J1128, UL VW-1 船用電線
    看原圖
    		ALPHA-PGM0449



    商品編號: ALPHA-PGM0449

    ALPHA-PGM0449 Awg 4 600V 105度C SAE J1128, UL VW-1 船用電線

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    PGM0449 600 4 49/.0292 0.06 0.386 PVC SAE J1128, UL VW-1

    Marine ready 船用认证

    我们的电缆满足各种规范，确保遵守监管要求并适于航海。

    • UL 1426：船舶电力电缆
    • SAE J378：船用推进系统电线
    • SAE J1127：低压电池电缆
    • SAE J1128：低压基本电缆
    • ABYC E-11-2008：船用交流和直流电系统标准
    • ABYC E-10-2006：蓄电池
    • USCG：33，CFR 183 子部分 I，第 183 条

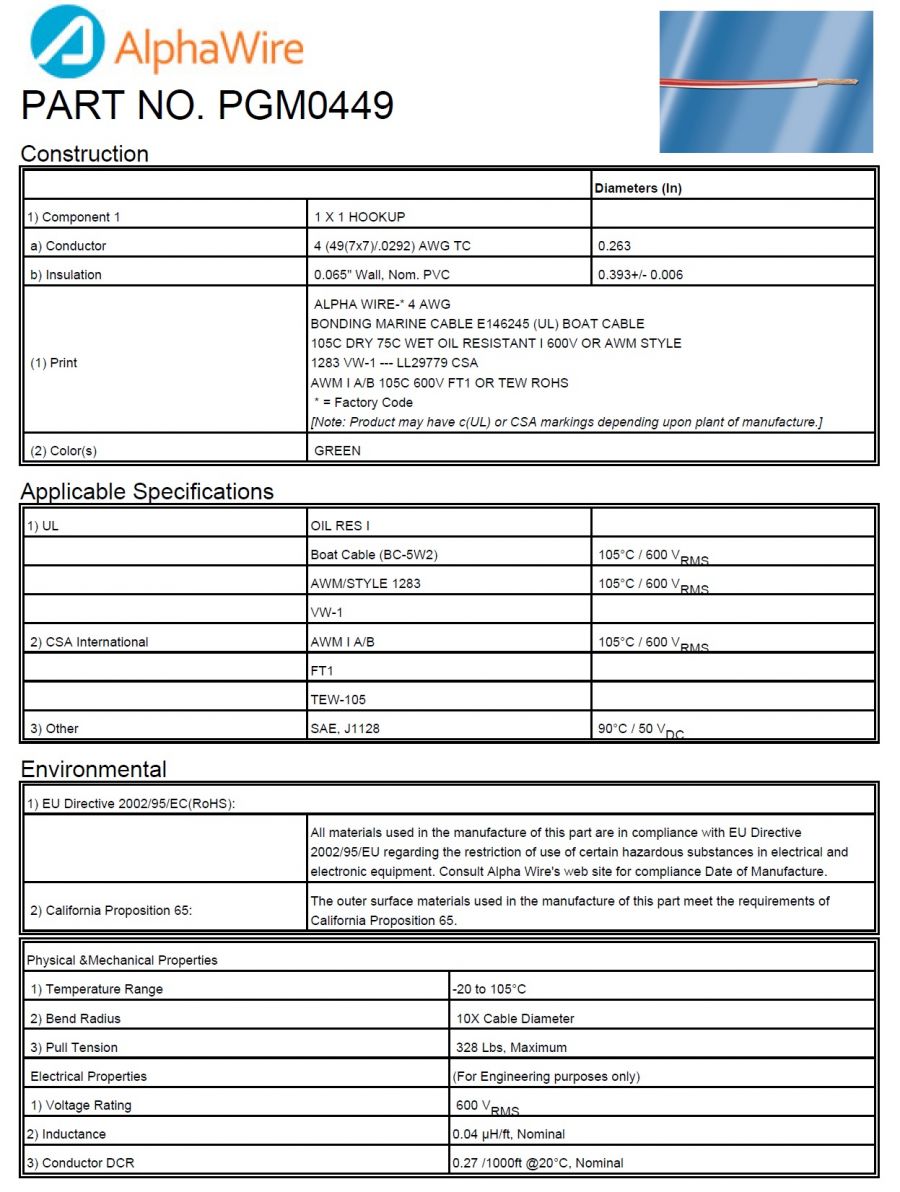

    Hook-Up WireConstruction
    　 Diameters (In)
    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 4 (49(7x7)/.0292) AWG TC 0.263
    b) Insulation 0.065" Wall, Nom. PVC 0.393+/- 0.006
    (1) Print ALPHA WIRE-* 4 AWG
    BONDING MARINE CABLE E146245 (UL) BOAT CABLE
    105C DRY 75C WET OIL RESISTANT I 600V OR AWM STYLE
    1283 VW-1 --- LL29779 CSA
    AWM I A/B 105C 600V FT1 OR TEW ROHS
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    (2) Color(s) GREEN
    Applicable Specifications
    1) UL OIL RES I 　
    　 Boat Cable (BC-5W2) 105°C / 600 VRMS
    　 AWM/STYLE 1283 105°C / 600 VRMS
    　 VW-1 　
    2) CSA International AWM I A/B 105°C / 600 VRMS
    　 FT1 　
    　 TEW-105 　
    3) Other SAE, J1128 90°C / 50 VDC
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -20 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 328 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Inductance 0.04 µH/ft, Nominal
    3) Conductor DCR 0.27 Ω/1000ft @20°C, Nominal
    Other
    1) Packaging
    a) 1000 FT 　
    b) 100 FT 　
    c) Bulk(Made-to-order) 　
    2) Notes:
    a) The product meets the intent of the SAE J1128 specification for type GPT but 4 AWG is outside the 24-8AWG range covered by the specification..

    Every Dearborn marine wire is designed and built to provide years of reliable service in demanding marine environments. Whether you are building new pleasure or commercial watercraft or maintaining existing boats, our marine products will satisfy your most stringent requirements.

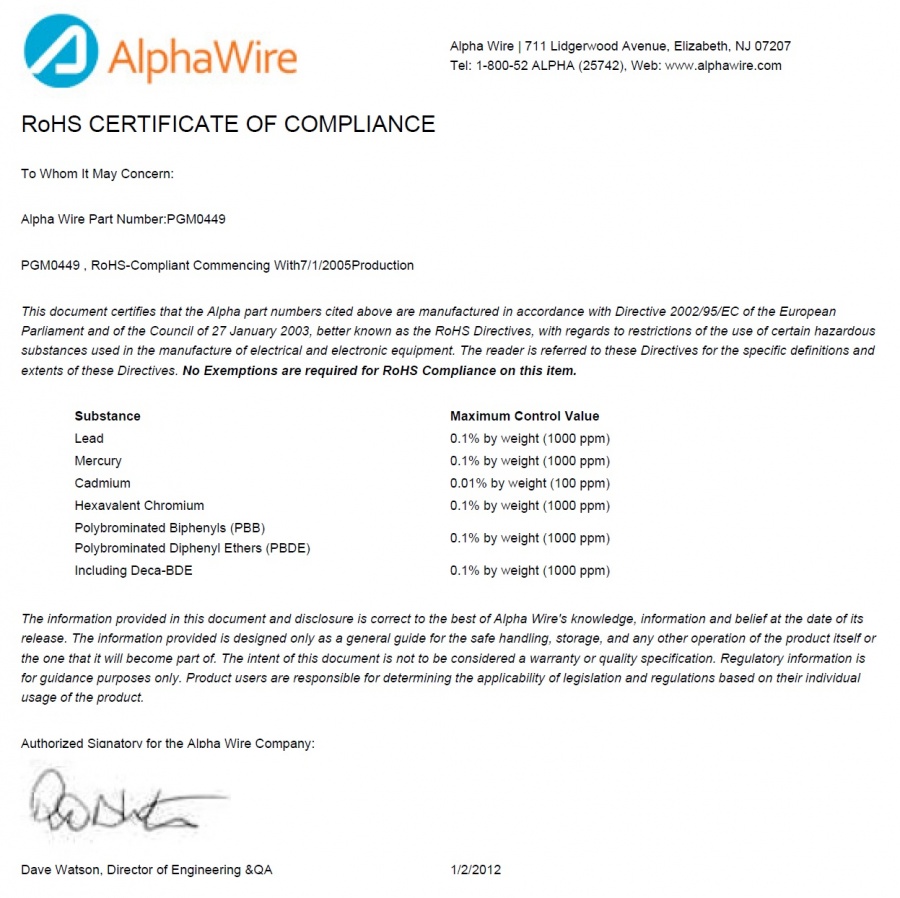

    EU/China ROHS CERTIFICATE OF COMPLIANCE
    To Whom It May Concern:
    Alpha Wire Part Number: PGM0449
    PGM0449 , RoHS-Compliant Commencing With 7/1/2005 Production
    This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.
    Substance Maximum Control Value
    Lead 0.1% by weight (1000 ppm)
    Mercury 0.1% by weight (1000 ppm)
    Cadmium 0.01% by weight (100 ppm)
    Hexavalent Chromium 0.1% by weight (1000 ppm )
    Polybrominated Biphenyls (PBB) 0.1% by weight (1000 ppm)
    Polybrominated Diphenyl Ethers (PBDE) , 　
    Including Deca-BDE 0.1% by weight (1000 ppm)
    The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
    Authorized Signatory for the Alpha Wire Company:
    Dave Watson, Director of Engineering & QA 1/2/2012

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    PBM0001 600 1/0 1064/30 0.08 0.566 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0002 600 2/0 1323/30 0.08 0.644 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0003 600 3/0 1666/30 0.08 0.655 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0004 600 4/0 2107/30 0.082 0.76 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0130 600 1 836/30 0.08 0.525 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0230 600 2 665/30 0.065 0.471 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL OIL RES I, UL VW-1
    PBM0430 600 4 420/30 0.065 0.396 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PBM0630 600 6 266/30 0.063 0.342 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, UL AWM 1283, UL OIL RES I, UL VW-1
    PBM0830 600 8 168/30 0.06 0.299 PVC CA Prop 65, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1127 TYPE SGT, SAE J378B, UL AWM 1283, UL AWM 1284, UL OIL RES I, UL VW-1
    PGM0449 600 4 49/.0292 0.06 0.386 PVC SAE J1128, UL VW-1
    PGM0649 600 6 49/.0231 0.06 0.328 PVC SAE J1128, UL VW-1
    PGM0849 600 8 49/.0184 0.06 0.286 PVC SAE J1128, UL VW-1
    PPM0830 600 8 168/30 0.048 0.284 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1030 600 10 105/30 0.031 0.18 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1230 600 12 65/30 0.031 0.155 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1430 600 14 41/30 0.031 0.136 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1630 600 16 26/30 0.0315 0.122 PVC CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL - Boat Cable (BC-5W2), UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PPM1830 600 18 16/30 0.031 0.109 PVC ABYC and Coast Guard Requirments, CSA AWM I A/B, CSA FT1, CSA TEW 105, SAE J1128 Type GPT, SAE J378B, UL AWM 1015, UL AWM 1230, UL OIL RES I, UL VW-1
    PWM0619 50 6 19/19 0.043 0.337 PVC SAE J1128 Type GPT, SAE J378B
    PWM0819 50 8 19/21 0.037 0.216 PVC SAE J1128 Type GPT, SAE J378B
