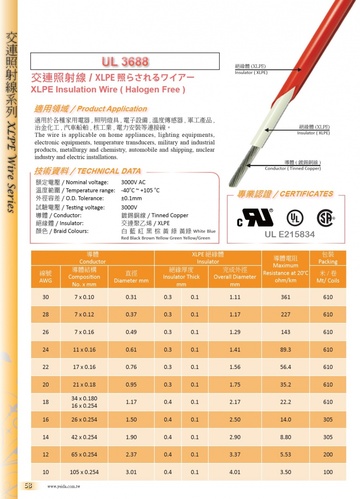

    UL3688 XLPE Insulation Wire ( Halogen Free ) / XLPE照らされるワイアー 3000V AC -40℃ ~ +105℃
    看原圖
    		IDA-UL3688

    商品編號: IDA-UL3688

    UL3688 XLPE Insulation Wire ( Halogen Free ) / XLPE照らされるワイアー 3000V AC -40℃ ~ +105℃

    Product Application
    • The wire is applicable on home appliances, lighting equipments, electronic equipments, temperature transducers, military and industrial products, metallurgy and chemistry, automobile and shipping, nuclear industry and electric installations.

    TECHNICAL DATA

    • Nominal voltage: 3000V AC
    • Temperature range: -40℃ ~ +105℃
    • O.D. Tolerance: ±0.1mm
    • Testing voltage: 3000V
    • Conductor: Tinned Copper
    • Insulator: XLPE
    • Braid Colours: White Blue Red Black Brown Yellow Green Yellow Green
    UL3688 Specifications
    Conductor XLPE Insulator Maximum Resistance at 20℃ ohm/km Packing
    AWG Composition
    No. x mm    		 Diameter mm Insulator Thick
    mm    		 Overall Diameter
    mm    		 Mt/ Coils
    30 7 x 0.10 0.31 0.38 1.07 361 610
    28 7 x 0.12 0.37 0.38 1.13 227 610
    26 7 x 0.16 0.49 0.38 1.25 143 610
    24 11 x 0.16 0.61 0.38 1.37 89.3 610
    22 17 x 0.16 0.76 0.38 1.52 56.4 610
    20 21 x 0.18 0.95 0.38 1.71 35.2 610
    18 16 x 0.254 1.17 0.45 2.07 22.2 610
    16 26 x 0.254 1.50 0.45 2.40 14.0 305
    14 42 x 0.254 1.90 0.50 2.90 8.80 305
    12 65 x 0.254 2.37 0.50 3.37 5.53 200
    10 105 x 0.254 3.01 0.50 4.01 3.50 100
