    首頁 > > UL-1015/HooK-Up/Wire

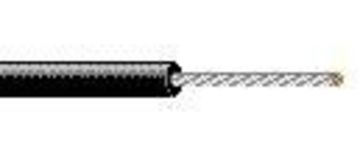

    UL 1015 Hook-Up Wire 600V 105°C Awg PVC 電子線
    看原圖
    		U1518

    UL 1015 Hook-Up Wire 105°C 600V PVC 電子線
    UL 1015  Hook-Up Wire
                                                                       105°C 600V PVC
    Description: Characteristics:
      Conductor: Solid or Stranded, bare or   Rated temperature:105°C
      tinned copper or OS-1   Voltage Rating: 600 Volt
      Insulation: Color coded PVC    Passes UL VW-1 & CSA FT1 vertical  flame test
       Uniform thickness of wire to ensure easy  stripping and cutting
        Resistant to acids, oil, alkalis, moisture and fungus

    Applications:  Construction:
      For internal wiring of appliances
     UL Style
            &
     CSAType
                 Conductor
    Insulation
    Thickness

        Overall
       Diameter


        Standard Put-up
      Conductor
      Resistance
          at 20°C

      　

     AWG

    		       No./mm          mm          mm   Ft/coil  M/coil   ohm/Kft
         CSA IA
          (TEW)
       (Stranded)

    		26 7/0.160 0.79 2.00±0.10 2000 610 45.20
    24 11/0.160 2.20±0.10 2000 610 29.30
    22 17/0.160 2.35±0.10 2000 610 16.70
    20 21/0.180 2.50±0.10 2000 610 10.50
    18 34/1.180 2.70±0.10 2000 610 6.64
    16 26/0.254 3.10±0.10 1000 305 4.18
    14 41/0.254 3.50±0.10 1000 305 2.62
    12 65/0.254 3.90±0.10 1000 305 1.65
    10 105/0.254 5.10±0.15 1000 305 1.04
     (TEW)  (OS-1)
    		22 7/0.254 0.79 2.35±0.10 2000 610 16.70
    20 7/0.320 2.50±0.10 2000 610 10.40
    18 7/0.404 2.70±0.10 2000 610 7.06
          CSA IA
          (TEW)
         (Solid)

    		26 1/0.404

    0.79

    		 2.00±0.10 2000 610 43.53
    24 1/0.511 2.10±0.10 2000 610 27.25
    22 1/0.643 2.25±0.10 2000 610 16.50
    20 1/0.813 2.40±0.10 2000 610 10.30
    18 1/1.024 2.65±0.10 2000 610 6.52
    16 1/1.290 2.90±0.10 1000 305 4.10
    14 1/1.630 3.20±0.10 1000 305 2.57
    12 1/2.050 3.60±0.10 1000 305 1.62
    10 1/2.588 4.20±0.10 1000 305 1.02
