    首頁 > > UL-Flat Ribbon Cable 排線

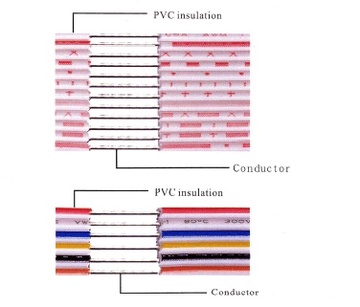

    UL-2468 Awg24(2 to 12C), Awg26(2 to 17C)300V 80℃ PVC Flat Ribbon Cable 排線
    看原圖
    		UL-2468

    商品編號: UL-2468

    UL-2468 Awg24(2 to 12C), Awg26(2 to 17C)300V 80℃ PVC Flat Ribbon Cable 排線

    Awg24(2 to 12C), PITCH:1.6mm, 2.5mm Awg26(2 to 17C), PITCH:1.6mm, 2.0mm, 2.5mm



    =Conductor: Stranded tinned Copper or OS-1

    =Insulation:  PVC



    =Rated Temperature: 80℃

    =Voltage Rating: 300Volt

    =Pass UL VW-1 vertical flame test

    =Resistant to acid,oil,alkalis,moisture and fungus

    =For internal wiring of computers or appliances


    UL Style
    ＆
    CSA Type

    Conductor AWG

    Pitch

    Core

    Insulation Thickness(mm)

    Overall Diameter(mm)

    Standard Put-up

    AWG

    No./mm

    mm

    mm

     Ft/Coil

    M/Coil

    CSA IA
    (OS-1)

    24

    7/0.200

    1.6

    2

    0.45

    1.5 x 3.1

    2000

    610

    3

    0.45

    1.5 x 4.7

    2000

    610

    4

    0.45

    1.5 x 6.3

    2000

    610

    5

    0.45

    1.5 x 7.9

    2000

    610

    6

    0.45

    1.5 x 9.5

    2000

    610

    7

    0.45

    1.5 x 11.1

    2000

    610

    CSA IA
    (OS-1)

    24

    7/0.200

    2.5

    2

    0.45

    1.5 x 4.0

    2000

    610

    3

    0.45

    1.5 x 6.5

    2000

    610

    4

    0.45

    1.5 x 9.0

    1000

    305

    5

    0.45

    1.5 x 11.5

    500

    152

    6

    0.45

    1.5 x 14.0

    500

    152

    7

    0.45

    1.5 x 16.5

    500

    152

    8

    0.45

    1.5 x 19.0

    500

    152

    9

    0.45

    1.5 x 21.5

    500

    152

    10

    0.45

    1.5 x 24.0

    500

    152

    11

    0.45

    1.5 x 26.5

    500

    152

    12

    0.45

    1.5 x 29.0

    500

    152

    CSA IA
    (OS-1)

    26

    7/0.160

    1.5

    2

    0.45

    1.4 x 2.9

    2000

    610

    3

    0.45

    1.4 x 4.4

    2000

    610

    4

    0.45

    1.4 x 5.9

    1000

    305

    5

    0.45

    1.4 x 7.4

    500

    152

    6

    0.45

    1.4 x 8.9

    500

    152

    7

    0.45

    1.4 x 10.4

    500

    152

    8

    0.45

    1.4 x 11.9

    500

    152

    9

    0.45

    1.4 x 13.4

    500

    152

    10

    0.45

    1.4 x 14.9

    500

    152

    11

    0.45

    1.4 x 16.4

    500

    152

    12

    0.45

    1.4 x 17.9

    500

    152

    13

    0.45

    1.4 x 19.4

    500

    152

    14

    0.45

    1.4 x 20.9

    500

    152

    15

    0.45

    1.4 x 22.4

    500

    152

    16

    0.45

    1.4 x 23.9

    500

    152

    17

    0.45

    1.4 x 25.4

    500

    152

    CSA IA
    (OS-1)

    26

    7/0.160

    2.0

    2

    0.45

    1.4 x 3.4

    2000

    610

    3

    0.45

    1.4 x 5.4

    2000

    610

    4

    0.45

    1.4 x 7.4

    1000

    305

    5

    0.45

    1.4 x 9.4

    500

    152

    6

    0.45

    1.4 x 11.4

    500

    152

    7

    0.45

    1.4 x 13.4

    500

    152

    8

    0.45

    1.4 x 15.4

    500

    152

    9

    0.45

    1.4 x 17.4

    500

    152

    10

    0.45

    1.4 x 19.4

    500

    152

    11

    0.45

    1.4 x 21.4

    500

    152

    12

    0.45

    1.4 x 23.4

    500

    152

    CSA IA
    (OS-1)

    26

    7/0.160

    2.5

    2

    0.45

    1.4 x 3.9

    2000

    610

    3

    0.45

    1.4 x 6.4

    2000

    610

    4

    0.45

    1.4 x 8.9

    1000

    305

    5

    0.45

    1.4 x 11.4

    500

    152

    6

    0.45

    1.4 x 13.9

    500

    152

    7

    0.45

    1.4 x 16.4

    500

    152

    8

    0.45

    1.4 x 18.9

    500

    152

    9

    0.45

    1.4 x 21.4

    500

    152

    10

    0.45

    1.4 x 23.9

    500

    152

    11

    0.45

    1.4 x 26.4

    500

    152

    12

    0.45

    1.4 x 28.9

    500

    152
