UL-2651 Awg24(2 to 7C), Awg26(2 to 12C), Awg28(2 to 50C) 300V 105℃ PVC Flat Ribbon Cable 排線

UL-2651

商品編號: UL-2651

UL-2651 Awg24(2 to 7C), Awg26(2 to 12C), Awg28(2 to 50C) 300V 105℃ PVC Flat Ribbon Cable 排線

=Pass UL VW-1 vertical flame test =Resistant to acid,oil,alkalis,moisture and fungus

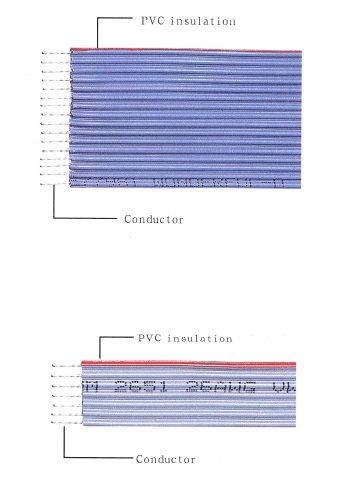

=Conductor: Stranded tinned Copper or OS-1

=Insulation: PVC

=Rated Temperature: 105℃

=Voltage Rating: 300Volt

=Pass UL VW-1 vertical flame test

=Resistant to acid,oil,alkalis,moisture and fungus

=For internal wiring of computers or appliances

UL Style ＆ CSA Type	Conductor AWG		Pitch	Core	Insulation Thickness(mm)	Overall Diameter(mm)	Standard Put-up
UL Style ＆ CSA Type	AWG	No./mm	mm	mm	Insulation Thickness(mm)	Overall Diameter(mm)	Ft/Coil	M/Coil
CSA IA (OS-1)	24	7/0.200	1.5	2	0.23	1.4 x 2.9	2000	610
				3	0.23	1.4 x 4.4	2000	610
				4	0.23	1.4 x 5.9	250	76
				5	0.23	1.4 x 7.4	250	76
				6	0.23	1.4 x 8.9	250	76
				7	0.23	1.4 x 10.4	250	76
CSA IA (OS-1) CSA IA (TS)	26	7/0.160	2.0	2	0.23	1.05 x 4.00	2000	610
				3	0.23	1.05 x 6.00	2000	610
				4	0.23	1.05 x 8.00	1000	305
				5	0.23	1.05 x 10.00	500	152
				6	0.23	1.05 x 12.00	500	152
				7	0.23	1.05 x 14.00	500	152
				8	0.23	1.05 x 16.00	500	152
				9	0.23	1.05 x 18.00	500	152
				10	0.23	1.05 x 20.00	500	152
				11	0.23	1.05 x 22.00	500	152
				12	0.23	1.05 x 24.00	500	152
CSA IA (OS-1) CSA IA (TS)	28	7/0.127	1.27	2	0.23	0.92 x 2.54	2000	610
				3	0.23	0.92 x 3.81	2000	610
				4	0.23	0.92 x 5.08	250	76
				5	0.23	0.92 x 6.35	250	76
				6	0.23	0.92 x 8.89	250	76
				7	0.23	0.92 x 10.16	250	76
				8	0.23	0.92 x 11.43	250	76
				9	0.23	0.92 x 12.70	250	76
				10	0.23	0.92 x 13.97	250	76
				11	0.23	0.92 x 15.24	250	76
				12	0.23	0.92 x 16.51	250	76
				13	0.23	0.92 x 17.78	250	76
				14	0.23	0.92 x 19.05	250	76
				15	0.23	0.92 x 20.32	250	76
				16	0.23	0.92 x 21.59	250	76
				17	0.23	0.92 x 22.86	250	76
				18	0.23	0.92 x 24.13	250	76
				19	0.23	0.92 x 25.40	250	76
				20	0.23	0.92 x 26.67	250	76
				21	0.23	0.92 x 27.94	250	76
				25	0.23	0.92 x 31.75	250	76
				30	0.23	0.92 x 38.10	250	76
				40	0.23	0.92 x 50.80	250	76
				50	0.23	0.92 x 63.50	250	76
