UL 2854 Awg 28*2C 麥拉鋁箔隔離電線
UL1185 / 2854 Shielded Wire
|
80°C 300V |
|

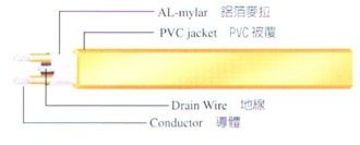

UL 2854: |
|
Conductor: Solid or stranded tinned copper |
|
Insulation: FRPE |
|
Drain Wire: Stranded tinned copper |
|
Shield: Aluminum/Mylar tape. |
|
Jacket: Color coded PVC, flat type. |
|
Characteristics: |
|
Rated Temperature: 80°C |
|
Voltage Rating: 300Volt |
|
Passes UL VW-1SC vertical flame test |
|
Use of spiral shield allows for fast and Simple termination |
|
Applications:
For recording studios, sound systems and electronic circuits |
|
|
|
|
|
|
|
|
|
|
|
|
AWG |
No./mm |
mm |
No./mm |
mm |
mm |
Ft/coil |
M/coil |
|
30 |
7/0.102 |
1 |
0.40 |
37/0.102 |
0.40 |
2.20±0.10 |
2000 |
610 |
28 |
7/0.127 |
1 |
39/0.102 |
2.30±0.10 |
26 |
7/0.160 |
1 |
41/0.102 |
2.40±0.10 |
24 |
11/0.160 |
1 |
35/0.127 |
2.60±0.10 |
|
28 |
7/0.127 |
2 |
0.25 |
- |
0.40 |
1.75±0.10×3.05±0.15 |
26 |
7/0.160 |
2 |
- |
0.40 |
1.85±0.10×3.35±0.10 |
24 |
7/0.203 |
2 |
- |
0.40 |
2.05±0.10×3.75±0.10 |
26 |
7/0.160 |
3 |
57/0.100 |
0.45 |
3.20±0.10 |
28 |
7/0.203 |
3 |
72/0.100 |
3.50±0.10 |
|
